AWNING 350X250CM HD HD-8124
- SUNSHADE TYPE : TENT
- LENGTH : 350.00 см
- WIDTH : 250.00 см
- MATERIAL : ПОЛИЕСТЕР
- COLOUR : БЯЛО/ЗЕЛЕНО
HD HD-8124 Retractable Folding-Arm Awning 350x250 cm, Manual Crank, White/Green Stripe
Shade a full terrace with 250 cm of projection and a water-repellent coated canopy.
The HD HD-8124 is a folding-arm awning for wall or ceiling mounting above a terrace, veranda or shopfront. The 280 g polyester canopy carries a PA water-repellent coating with UV protection, while the frame combines aluminium and galvanised steel. Mounting brackets are included.

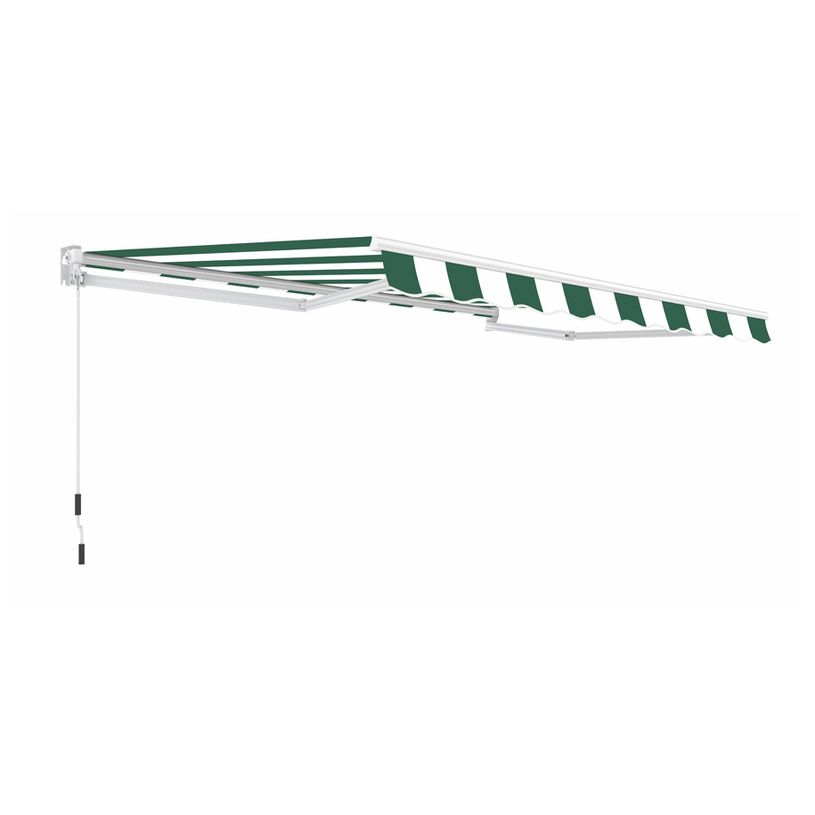

Folding arms with 250 cm projection

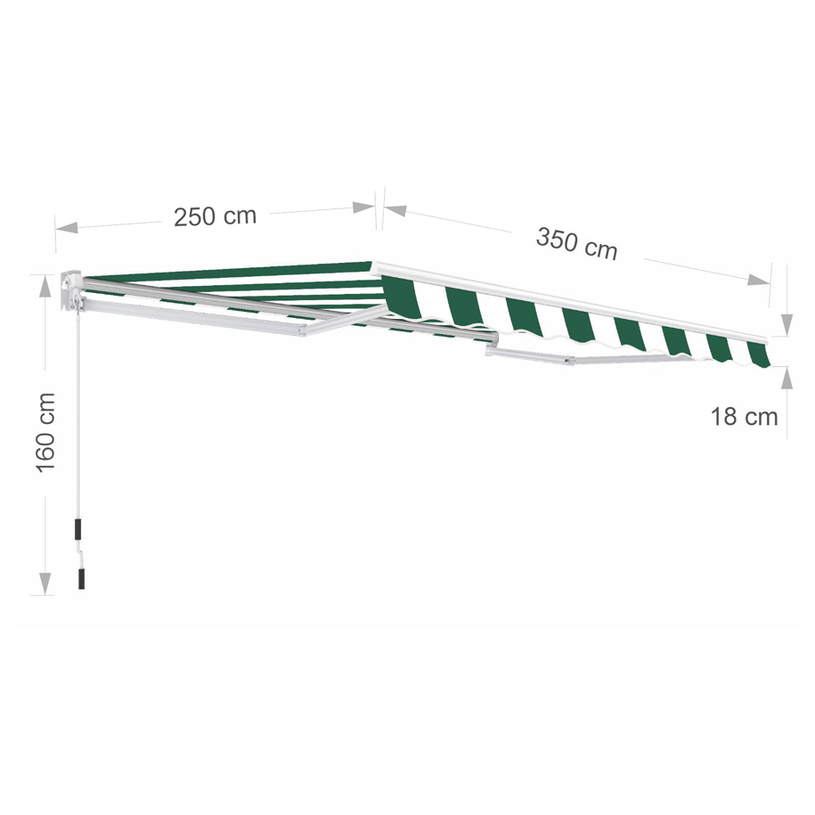

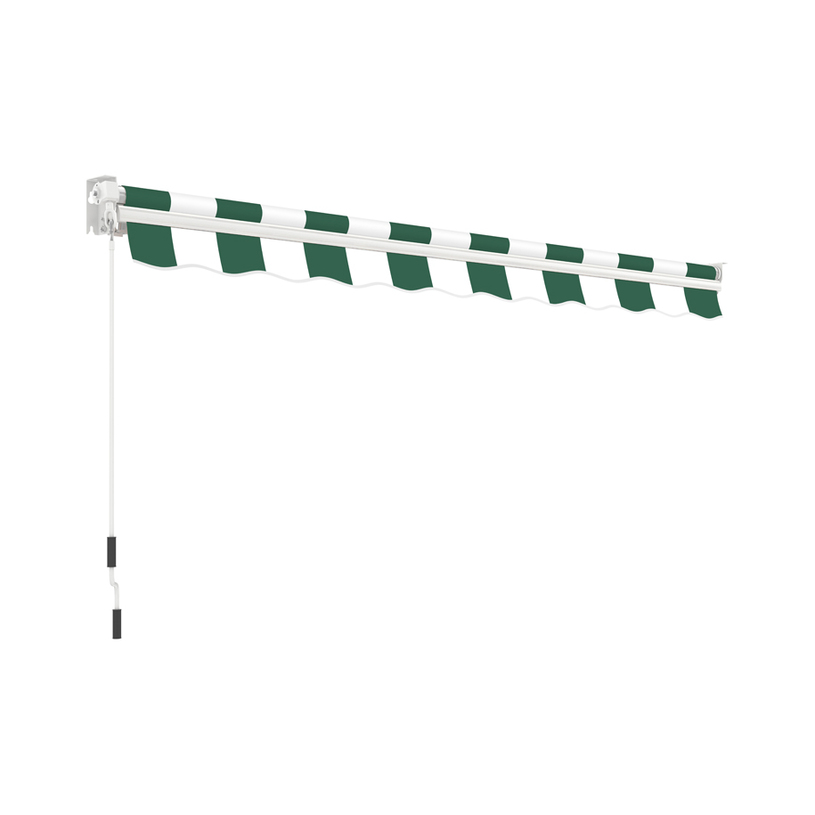

Fully extended, the shaded area reaches 350x250 cm; retracted, the unit takes up just 350x20 cm along the facade. The pitch angle is set during installation to suit height and sun direction.
Manual crank, left-hand mounting
Operation is purely mechanical, with no power supply or wiring required. A few turns roll the canopy out to the desired coverage and back in before wind or rain.
280 g canopy with water-repellent coating
The polyester fabric has a PA coating that sheds light rain and filters ultraviolet light. Where heavy rainfall is frequent, the manufacturer recommends periodic treatment with a waterproofing spray.
Wall or ceiling mounting with supplied brackets
Load-bearing brackets are supplied, allowing fitting to a facade or beneath a canopy or ceiling slab. Before drilling, check the load capacity and material of the substrate as well as the mounting height.
Specifications
Main
Dimensions & weight
Materials
In the box
| Brand | HD |
| MODEL | HD-8124 |
| SUNSHADE TYPE | TENT |
| LENGTH | 350.00 см |
| WIDTH | 250.00 см |
| MATERIAL | ПОЛИЕСТЕР |
| COLOUR | БЯЛО/ЗЕЛЕНО |
| WEIGHT | 19.500 kg |
| ADDITIONAL INFORMATION | MAX:350X250, MIN:350X20CM |
| WARRANTY | 24 MONTHS |
| EAN | 8939972881152 |
