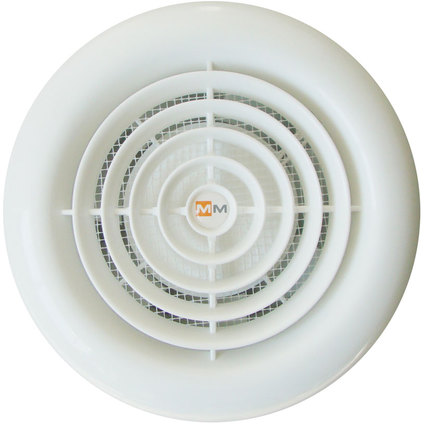

BATHROOM FAN ROUND WITH VALVE MMOTORS JSC ММ 100
- DIAMETER : 100 mm
- DEBIT : 105 m3/h
MMOTORS JSC MM 100 Bathroom Fan, Round, with Backdraft Flap, Ø100 mm, 105 m3/h
Double-sealed ball bearings rated for 30,000 operating hours, for wall or ceiling mounting.
The MMOTORS JSC MM 100 round bathroom fan connects to a Ø100 mm duct and comes with a built-in backdraft flap. It extracts up to 105 m3/h of humid air from small and medium bathrooms, toilets and utility rooms, and runs in continuous or intermittent mode on a wall, ceiling or suspended ceiling.
Backdraft flap stops reverse airflow
The flap opens under the airflow while the fan runs and closes as soon as it stops, keeping cold air, shaft odours and insects out of the room. Flap and impeller are moulded from high-grade plastic.
30,000 operating hours on ball bearings
The motor runs on rolling, double-encapsulated bearings that allow both horizontal and vertical installation. Noise level is 29 dB at maximum airflow.
IP 32 protection for damp rooms
The motor housing is made of aluminium alloy or heat-resistant material, aiding cooling and fire safety. The fan is rated for high humidity and aggressive environments.
Use as a heat exchanger between adjacent rooms
Besides venting outdoors, the model can transfer air between two adjacent rooms. Power input is 13 W at 230 V.
Specifications
General
Performance
Dimensions
Materials
Installation
| Brand | MMOTORS JSC |
| MODEL | ММ 100 |
| DIAMETER | 100 mm |
| DEBIT | 105 m3/h |
| WARRANTY | 36 MONTHS |
| MODEL | ММ 100 |
| DIAMETER | 100 mm |
| DEBIT | 105 m3/h |
| WARRANTY | 36 MONTHS |
| EAN | 3800211051030 |
