СТРУКТУРА ЗА ВГРАЖДАНЕ С БУТОН GROHE RAPID SL 38772001
- BUTTON OF THE FLUSHING SYSTEM : DOUBLE
- CAPACITY OF THE FLUSHING SYST : 9.00 L
- CONDENSATION INSULATION
- PAYLOAD : 400.00 kg
- WIDTH : 500.00 мм
- HEIGHT : 1300.00 мм

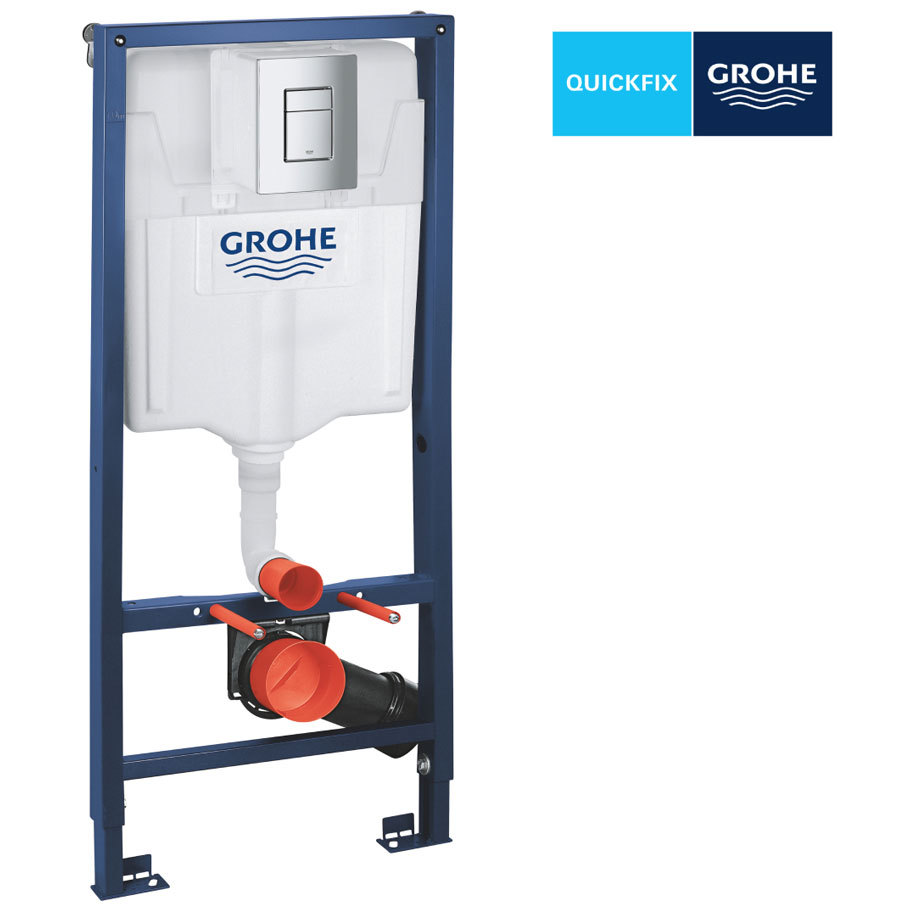

GROHE Rapid SL 38772001 3-in-1 WC Installation Frame with Flush Plate, 400 kg Load Rating
A complete 3-in-1 set for wall-hung toilets: steel frame, GD2 cistern and Skate Cosmopolitan plate.
The GROHE Rapid SL 38772001 is a 3-in-1 installation frame for wall-hung toilets, supplied with the GD2 concealed cistern and a chrome Skate Cosmopolitan flush plate. The certified steel frame carries loads of up to 400 kg and mounts either in front of a solid wall or inside a stud partition. Wall brackets are included, so nothing extra is needed to fix it in place.
Steel frame rated for 400 kg loads
The load rating covers the weight of the ceramic and the user without flexing inside the wall. The frame can stand in front of solid masonry or sit within a stud partition, and its adjustable feet take up uneven floors.
GROHE Whisper technology for a quieter flush
Low-noise fittings and separately routed plumbing keep sound transmission into the building structure to a minimum. The cistern is insulated against condensation, so the concealed cavity stays dry.
Dual Flush with a 3 l spare flush
The dual button selects between a full and a reduced volume, and the small key stops a full flush at any moment. The Spare Flush function holds a 3 l reserve for an extra rinse straight after the main one.
Tool-free connections with QuickFix
The hose, inspection shaft and water supply click together without tools. The filling and discharge valves stay accessible through the inspection opening behind the plate, even once the wall is tiled.
Skate Cosmopolitan plate in GROHE LongLife chrome
The chrome surface wipes clean with a damp cloth and keeps its shine under daily cleaning. The slim plate sits flush against the tiling and suits contemporary bathroom fittings.
Specifications
General
Dimensions & weight
Materials
In the box
| Brand | GROHE |
| MODEL | RAPID SL 38772001 |
| BUTTON OF THE FLUSHING SYSTEM | DOUBLE |
| CAPACITY OF THE FLUSHING SYST | 9.00 L |
| CONDENSATION INSULATION | Yes |
| PAYLOAD | 400.00 kg |
| WIDTH | 500.00 мм |
| HEIGHT | 1300.00 мм |
| WARRANTY SANITARY | 10 ГОДИНИ |
| EAN | 4005176863288 |
