СТРУКТУРА ЗА ВГРАЖДАНЕ GROHE RAPID SL
- BUTTON OF THE FLUSHING SYSTEM : DOUBLE
- CAPACITY OF THE FLUSHING SYST : 9.00 L
- CONDENSATION INSULATION
- PAYLOAD : 400.00 kg
- WIDTH : 500.00 мм
- HEIGHT : 1130.00 мм

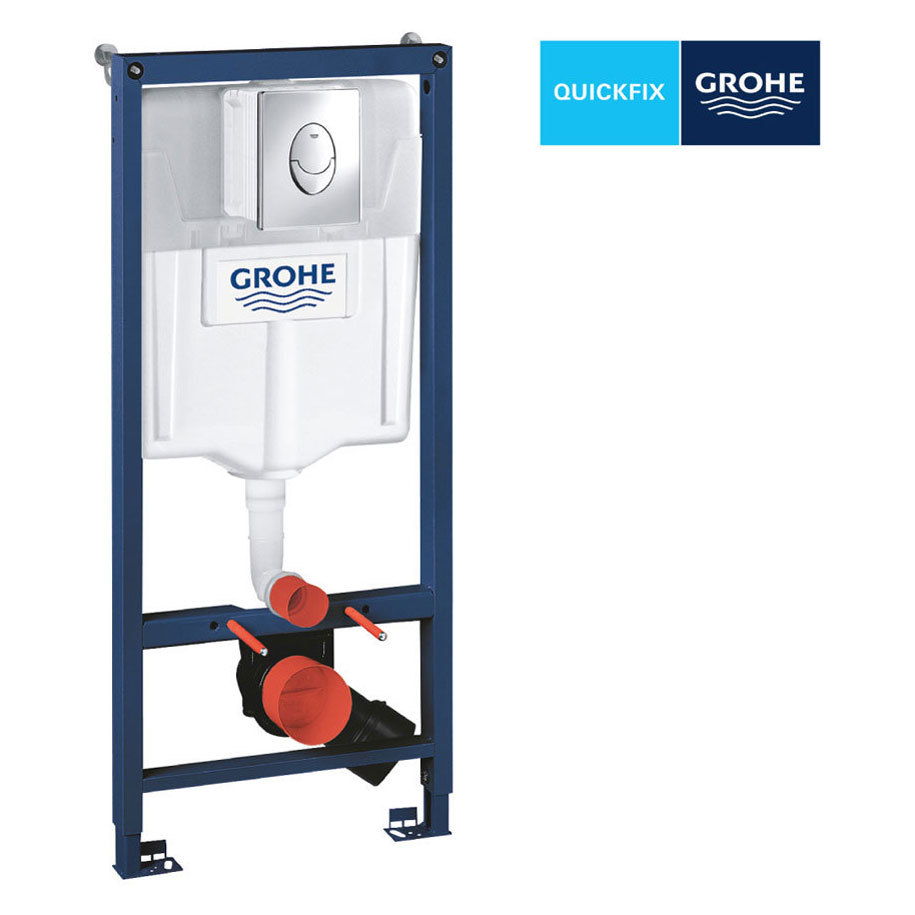

GROHE Rapid SL 3-in-1 WC Frame with 9 l Cistern and Skate Air Flush Plate, 1.13 m Installation Height
Steel frame certified for loads up to 400 kg, complete with cistern and chrome flush plate.
The GROHE Rapid SL 3-in-1 concealed installation frame (GROHE 38721001) is a pre-assembled set for wall-hung toilets with a 1.13 m installation height. It arrives with the GD 2 cistern, wall brackets and the chrome Skate Air dual-flush plate, ready for mounting against a solid wall or inside a stud partition.
400 kg load rating on a certified steel frame

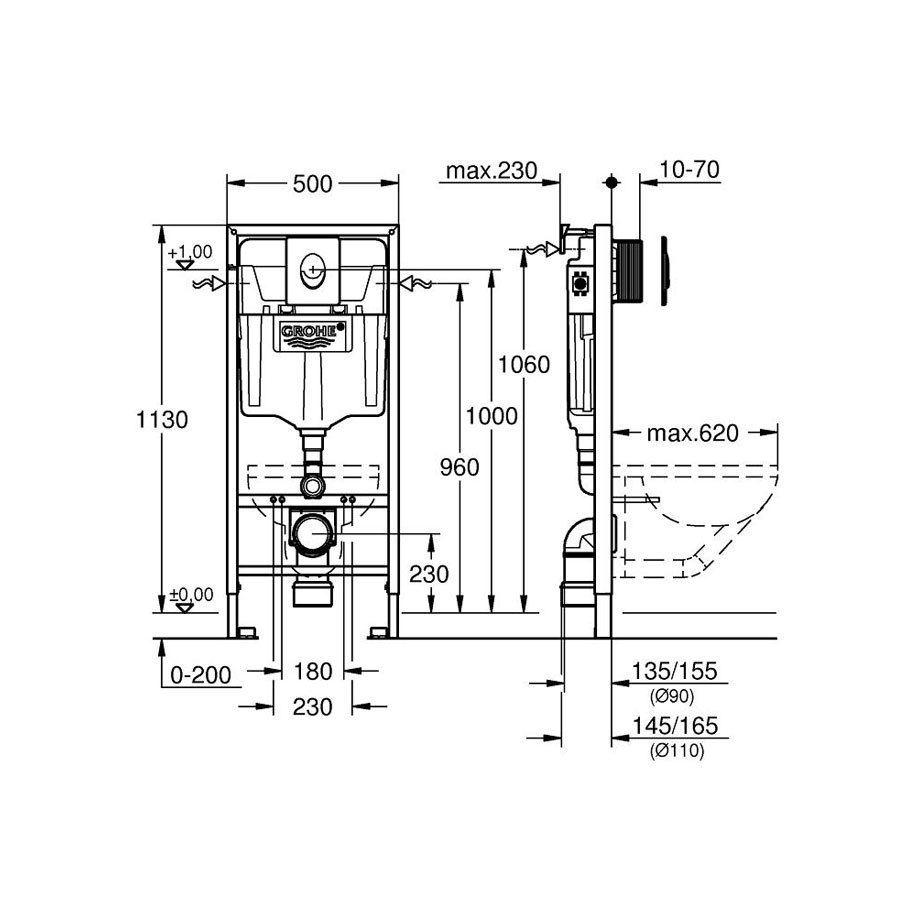

The load-bearing structure is steel and anchors to floor and wall with the supplied Rapid SL brackets. Wall connection depth adjusts in steps from 130 to 230 mm, so the frame lines up precisely with the finished cladding.
QuickFix with ToolFree — connections without tools
Hose, inspection shaft and water supply connect by hand, with no spanners or screwdrivers needed. That shortens time on site and helps when working in tight service shafts.
GROHE Whisper for quiet cistern operation
The fittings are sound-insulated and the pipework is decoupled from the structure, keeping flush noise out of adjoining rooms. The GD 2 cistern is insulated against condensation, so no moisture collects on its body inside the clad wall.
Skate Air chrome plate with EcoJoy dual flush
The plate is ABS with a GROHE StarLight chrome finish and mounts vertically over the AV1 pneumatic discharge valve. Two buttons separate full and reduced flush, cutting water use by up to 50%.
Specifications
General
Dimensions
Cistern and flush plate
Materials
In the box
| Brand | GROHE |
| MODEL | RAPID SL |
| BUTTON OF THE FLUSHING SYSTEM | DOUBLE |
| CAPACITY OF THE FLUSHING SYST | 9.00 L |
| CONDENSATION INSULATION | Yes |
| PAYLOAD | 400.00 kg |
| WIDTH | 500.00 мм |
| HEIGHT | 1130.00 мм |
| WARRANTY SANITARY | 120 МЕСЕЦА |
| EAN | 4005176863431 |
