БОЙЛЕР ELDOM WVY08044F 3KW 80 L
- CAPACITY : 80 L
- TANK CAPACITY : 77.0 L
- HEIGHT : 82.50 см
- DIAMETER SM : 43.5 см
- TYPE : ВЕРТИКАЛЕН
- TANK TYPE : GLAZED
- WARRANTY : 36 MONTHS

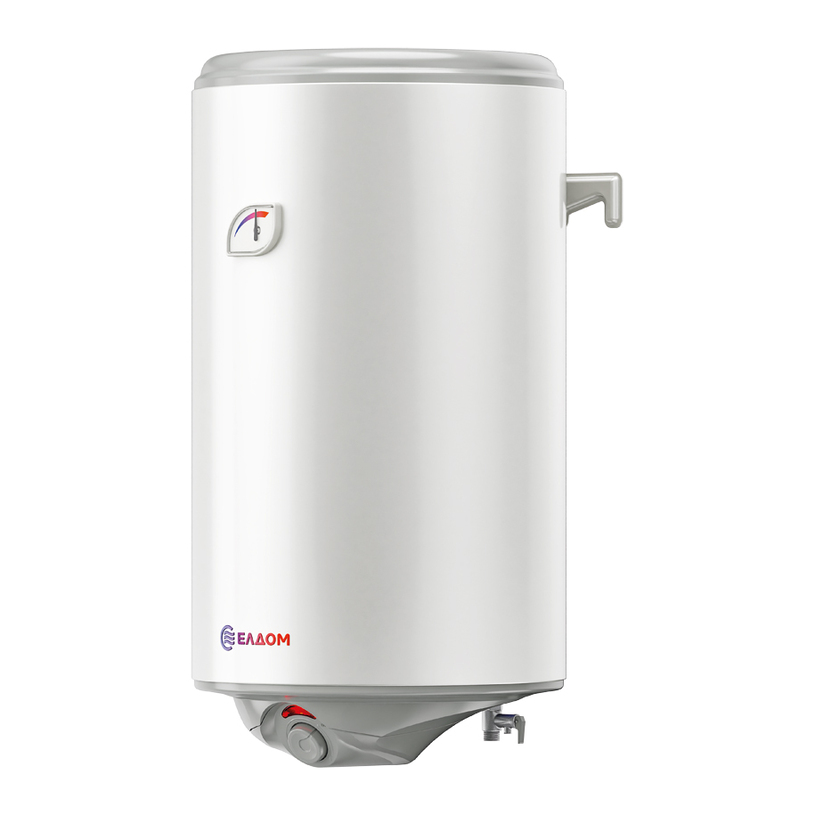

ELDOM WVY08044F Style Water Heater 80 L, 3 kW, Vertical, Enamelled Tank
Simple mechanical control and IP24 moisture protection for bathroom installation.
The ELDOM WVY08044F Style is a vertical wall-mounted storage water heater with a 77 L usable tank and enamelled steel lining. It covers the daily hot water needs of a two- to four-person household, running from a standard 230 V supply. Control is fully mechanical, with a capillary thermostat and a temperature indicator on the front panel.
3 kW heating element for fast recovery
This is the top power rating usually offered on domestic tanks of this size, and it shortens reheating time after a shower. The unit is rated for load profile M, with annual electricity consumption of 1423 kWh and energy class C. The ECO setting at 60 °C is the most economical working position.
SHIELD zirconium enamel and magnesium anode against corrosion
The tank coating withstands high temperatures thanks to an enamel formula with increased zirconium content. A magnesium anode shields the entire tank volume from corrosion and can be checked during routine servicing. The elliptic flange is ELDOMINVEST's own design and gives easy access to the heating element.
Six-level protection and IP24 rating
A capillary thermal cut-out disconnects power in case of overheating, while the combined metal valve works as both check and safety valve. Frost protection keeps the water above 5 °C in unheated rooms. The switch is moisture-proof and has an on/off light indicator.
Compact vertical body, 43.5 cm in diameter
At 82.50 cm high and 23 kg empty, the heater fits on a wall above a washing machine or inside a narrow recess. Dense HFO closed-cell insulation limits standing heat losses between draw-offs. Water connections are at the bottom, following the standard layout for vertical models.
Specifications
Main
Power and supply
Dimensions and weight
Materials and protection
| Brand | ELDOM |
| MODEL | WVY08044F 3KW |
| CAPACITY | 80 L |
| TANK CAPACITY | 77.0 L |
| HEIGHT | 82.50 см |
| DIAMETER SM | 43.5 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | GLAZED |
| NOMINAL POWER KW | 3 |
| ENERGY CLASS | C |
| WARRANTY | 36 MONTHS |
| EAN | 3800035781533 |
