БОЙЛЕР ELDOM WVF08039FSR 80 L
- CAPACITY : 80 L
- TANK CAPACITY : 73.0 L
- HEIGHT : 112.50 см
- DIAMETER SM : 38.7 см
- TYPE : ВЕРТИКАЛЕН
- TANK TYPE : GLAZED
- HEATER TYPE : COPPER
- HEAT EXCHANGER
- WARRANTY : 60 MONTHS

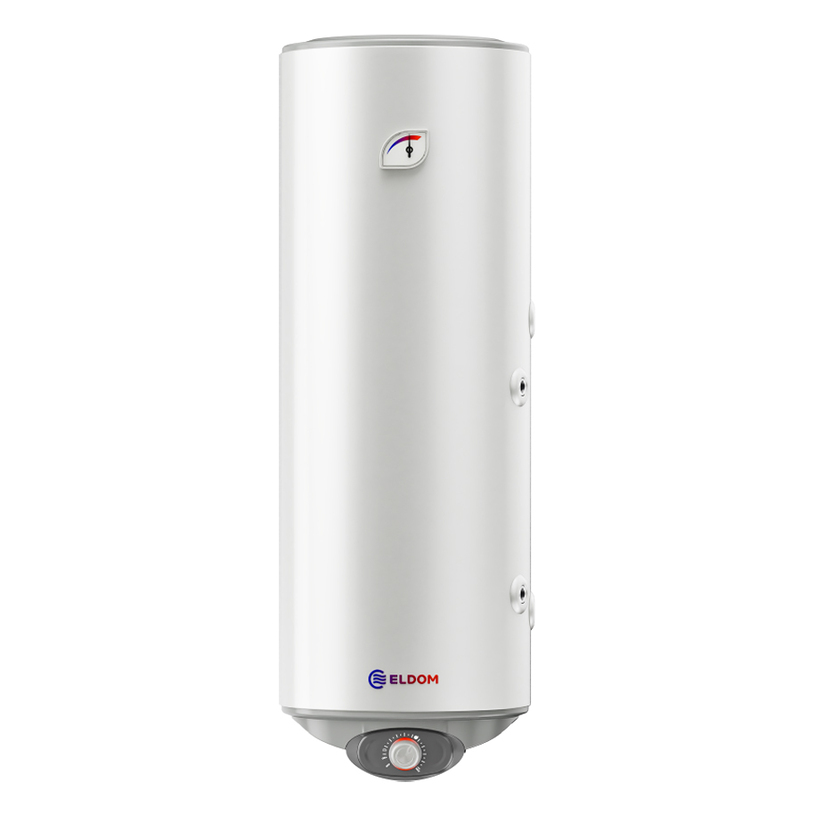

ELDOM WVF08039FSR 80 L Indirect Water Heater, Right-Side Coil, Vertical, Enamelled, 3 kW
Hot water from a solar collector or heat pump, with an electric element as backup.
The ELDOM WVF08039FSR is a vertical wall-mounted indirect water heater with an 80 L volume group and 73 L actual capacity. Water is heated either through the coil, fed by an external heat source, or by the built-in 3 kW electric element. The coil connections are on the right and the tank is enamelled using zirconium SHIELD technology.

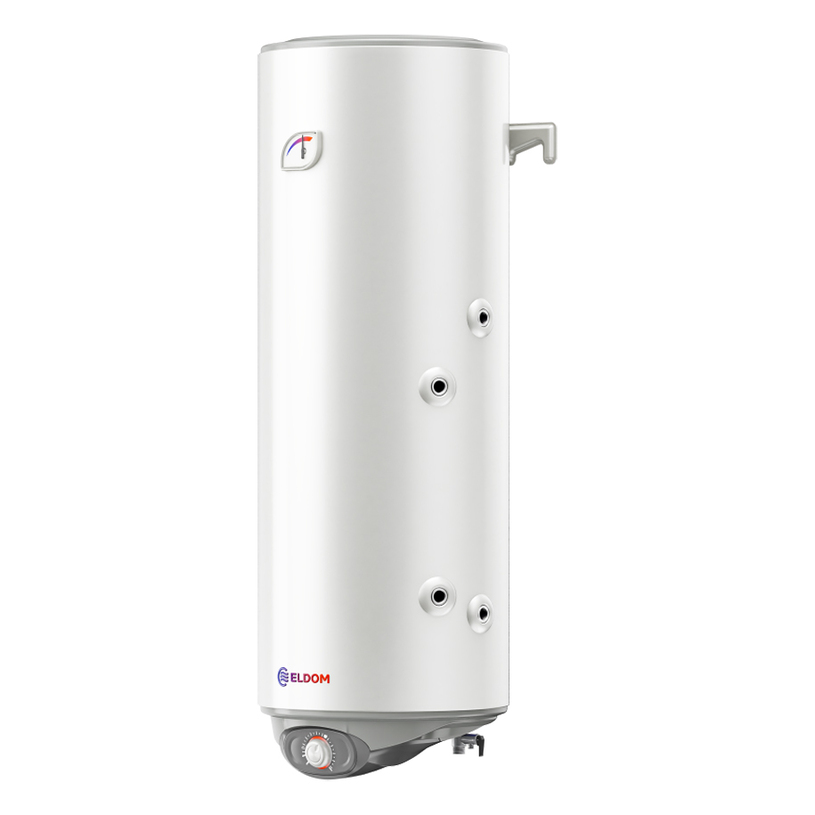

0.49 m² coil for solar collectors and heat pumps
The heat exchanger sits low in the tank so it captures as much energy as possible from the alternative source. Connections are 1/2" both to the plumbing and to the heating circuit. Dedicated sensor sockets accept thermal probes for precise system control.
387 mm diameter for tight bathrooms
A height of 1125 mm compensates for the slim body while keeping the full 80 L volume. This footprint suits installation above a washing machine or in a recess where wider 462 mm models will not fit.
Two magnesium anodes and zirconium enamel against corrosion
Both anodes protect the entire internal volume, while the enamel coating uses a wear-resistant formula. The six-level protection also covers a reinforced flange, an external capillary thermostat, a capillary thermal cut-out, a combined metal valve with check and safety functions, and IP24 moisture protection.
ECO mode at 60 °C and Holiday mode
A single combined knob both switches the unit on and sets the temperature. In Holiday mode the thermostat keeps the water above 5 °C and protects the installation while you are away. The Twin LED indicator glows red while heating and white once the set temperature is reached.
HFO Closed-Cells insulation over 33 mm thick
This new-generation polyurethane system has a fine closed-cell structure and limits standing heat loss to 45 W. The unit is rated in energy efficiency class B.
Specifications
Main
Power and supply
Dimensions
Materials
In the box
| Brand | ELDOM |
| MODEL | WVF08039FSR |
| CAPACITY | 80 L |
| TANK CAPACITY | 73.0 L |
| HEIGHT | 112.50 см |
| DIAMETER SM | 38.7 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | GLAZED |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 3 |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| HEAT EXCHANGER | Yes |
| WARRANTY | 60 MONTHS |
| EAN | 3800035778946 |
