WELDING MASK GRAPHITE 56H822

Code: 464307
GRAPHITE ЗАВАР.ШЛЕМ,АВТ.ЗАТЪМ-НЕ DIN9-13
Unavailable online. Check the availability in stores.
Short Description
  • TYPE MASK : AUTOMATIC WELDING MASK
  • SCOPE OF PROTECTION : DIN 9-13
  • ADJUSTING THE SENSITIVITY
  • DEGREE OF SHADE : 5
  • TIME TO SHADE : 0.00006700 s
Price:  42.99 € / 84.08 лв.
Everything from GRAPHITE
Welding helmet

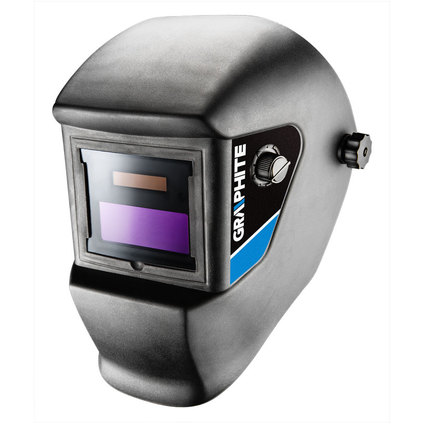

GRAPHITE 56H822 Auto-Darkening Welding Helmet, DIN 9–13

The lens darkens the instant the arc strikes, so you keep welding without lifting the helmet.

GRAPHITE 56H822 Auto-Darkening Welding Helmet, DIN 9–13

The GRAPHITE 56H822 auto-darkening welding helmet shields your eyes and face during arc welding, with a filter that darkens automatically the moment the arc ignites. Shade range DIN 9–13 is set from an external control, and two optical sensors track the arc. Power comes from a solar cell backed by two replaceable AAA Ni-MH batteries.

0.000067 s switching time protects your eyes from flash

Two optical sensors in the GRAPHITE 56H822 detect the arc and switch the filter almost instantly. You work continuously without flipping the helmet up between welds and start exactly on your mark.

DIN 9–13 shade range with sensitivity adjustment

The GRAPHITE 56H822 offers five shade settings across DIN 9–13, matched to your current and welding process. Sensitivity adjustment helps the filter respond to a weaker arc, for example on thinner material.

90 × 35 mm viewing area at just 0.48 kg

The 90 × 35 mm window gives a clear view of the weld pool and its surroundings. At 0.48 kg the helmet stays easy on the neck during long sessions, and the -5 to +55 °C operating range covers unheated workshops.

Solar cell plus replaceable batteries

The GRAPHITE 56H822 runs on a photovoltaic cell supported by 2 × AAA Ni-MH batteries. The batteries are user-replaceable, keeping the helmet in service well beyond their first charge cycle.

Specifications

General

GRAPHITEBrand
56H822Model
464307Item number
Auto-darkening welding helmetHelmet type
5902062006981EAN

Optics & protection

DIN 9 - 13Shade range
DIN 4Light state shade
5Number of shade levels
0.000067 sSwitching time
2Arc sensors
YesSensitivity adjustment
NoSolar lens switch-off

Dimensions & weight

90 mmViewing area width
35 mmViewing area height
110 x 90 x 9 mmFilter size
0.48 kgNet weight

Power

2 x AAA Ni-MHBattery type
YesSolar cell
YesReplaceable batteries
-5 to +55 °COperating temperature

Warranty

24 monthsWarranty
BrandGRAPHITE
MODEL
56H822
TYPE MASK
AUTOMATIC WELDING MASK
TURN OFF THE SOLAR GLASS
No
DEGREE OF LIGHT
DIN 4
SCOPE OF PROTECTION
DIN 9-13
WIDTH OF VISION FIELD
90 мм
HEIGHT OF VISION FIELD
35 мм
FILTER SIZE
110X90X9
ADJUSTING THE SENSITIVITY
Yes
PRODUCT WEIGHT
0.480 kg
BATTERY TYPE
2X AAA Ni-Mh
SOLAR POWERED
Yes
REPLACING BATTERIES
Yes
DEGREE OF SHADE
5
TIME TO SHADE
0.00006700 s
OPTICAL SENSOR
2
OPERATING TEMPERATURE
-5 ДО +55 C
WARRANTY
24 MONTHS
EAN5902062006981
