ВЕНТИЛАТОР ЗА БАНЯ PAX NORTE / BLACK
- DIAMETER : 100 mm
- DEBIT : 110 м3/h
- NOISE LEVEL : 17-20 db
- COLOUR : ЧЕРЕН

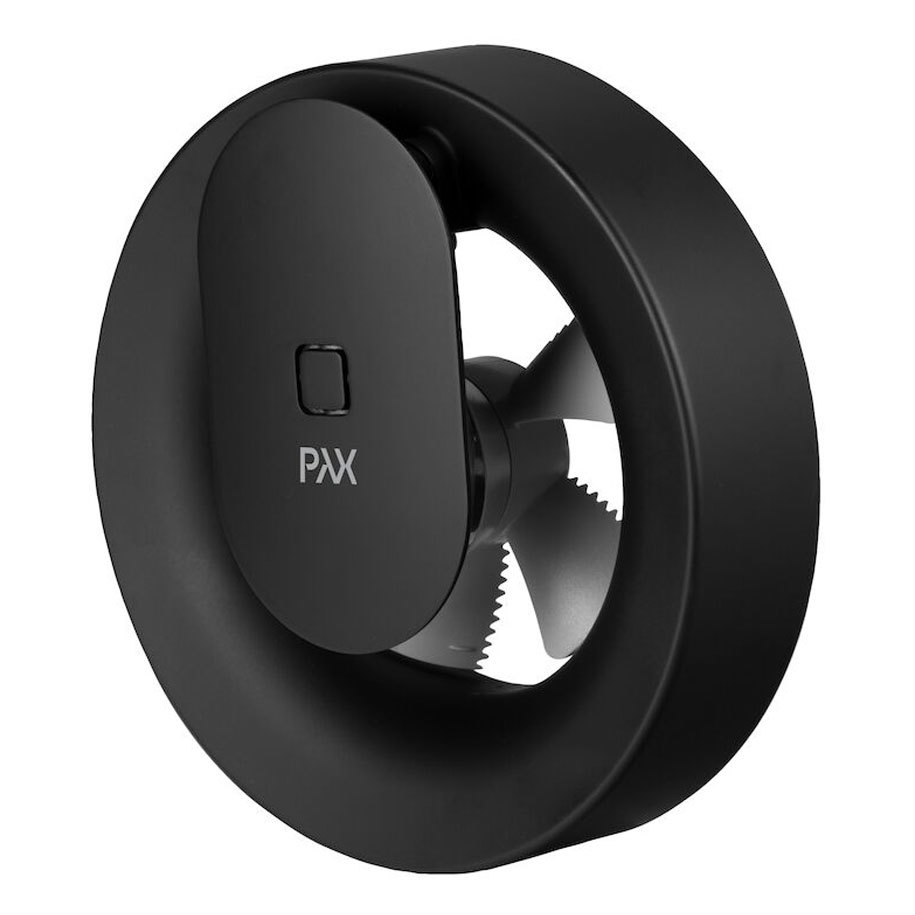

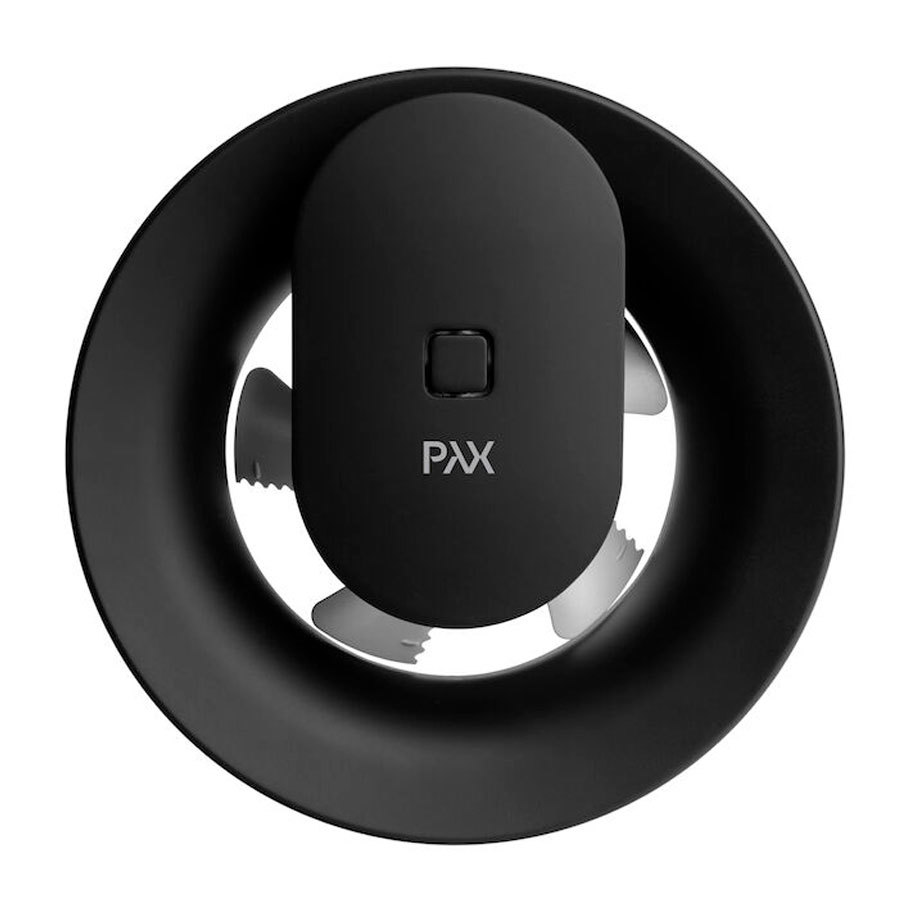

PAX NORTE Black Bathroom Fan, Ø100 mm, 110 m³/h, Humidity and Light Sensors
Runs on its own via built-in sensors, with settings adjustable from your phone over Bluetooth.
The PAX NORTE Black bathroom fan is a fully automatic, Swedish-made extractor with factory presets for constant ventilation, light sensing and humidity sensing. It mounts on the wall or ceiling to ducts from Ø100 to Ø140 mm and draws just 4 W. Extra modes are set through the PAX Wireless app over Bluetooth.
Automatic operation without a wall switch
Built-in sensors start the fan on their own when the bathroom light goes on and when humidity rises, with humidity taking priority. The factory presets cover everyday use, so the unit works straight after installation, with no separate switch needed.
110 m³/h airflow at just 4 W
Maximum static pressure is 25 Pa and sound pressure is 17–20 dB(A) measured at 3 m. Constant ventilation runs at a low 41–70% speed and keeps the air fresh between showers.
PAX Wireless app for personal profiles
Over Bluetooth you set the run-on time after the light goes off (5, 10, 15, 30 or 60 minutes), sensor sensitivity and delayed start. Quiet hours block activation during a chosen period, while the BOOST button runs maximum speed for 15 minutes.
Automatic airing every 12 hours
The cycle triggers every 12 hours for a chosen 30, 60 or 90 minutes and dries out rooms that are not used daily. The housing opens without tools for cleaning the grille and impeller.
230 V AC or 12 V DC supply
A separate 12 V input allows connection to low-voltage wiring in wet rooms. Protection is IP44, insulation class II, and the operating temperature range is 5 to 35 °C.
Specifications
Key facts
Performance
Functions and control
Power and supply
Dimensions and installation
| Brand | PAX |
| MODEL | NORTE / BLACK |
| DIAMETER | 100 mm |
| DEBIT | 110 м3/h |
| NOISE LEVEL | 17-20 db |
| COLOUR | ЧЕРЕН |
| ADDITIONAL EXTRAS | СЕНЗОР ЗА СВЕТЛИНА И ВЛАГА |
| VALVE | No |
| WARRANTY | 60 MONTHS |
| MODEL | NORTE / BLACK |
| DIAMETER | 100 mm |
| DEBIT | 110 м3/h |
| NOISE LEVEL | 17-20 db |
| ADDITIONAL EXTRAS | СЕНЗОР ЗА СВЕТЛИНА И ВЛАГА |
| VALVE | No |
| COLOUR | ЧЕРЕН |
| WARRANTY | 60 MONTHS |
| EAN | 7391477156110 |
