ВЕНТИЛАТОР ЗА БАНЯ КАНАЛЕН BOSCH F1200 D125
- DIAMETER : 125 mm
- DEBIT : 215 м3/ч
- NOISE LEVEL : 38 dB
- COLOUR : БЯЛ

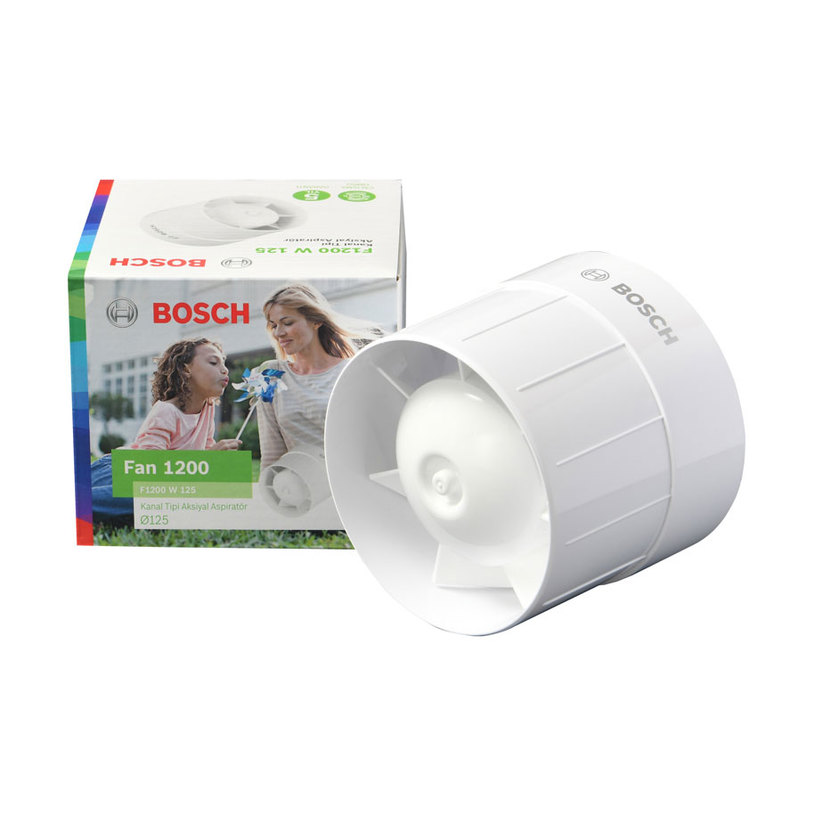

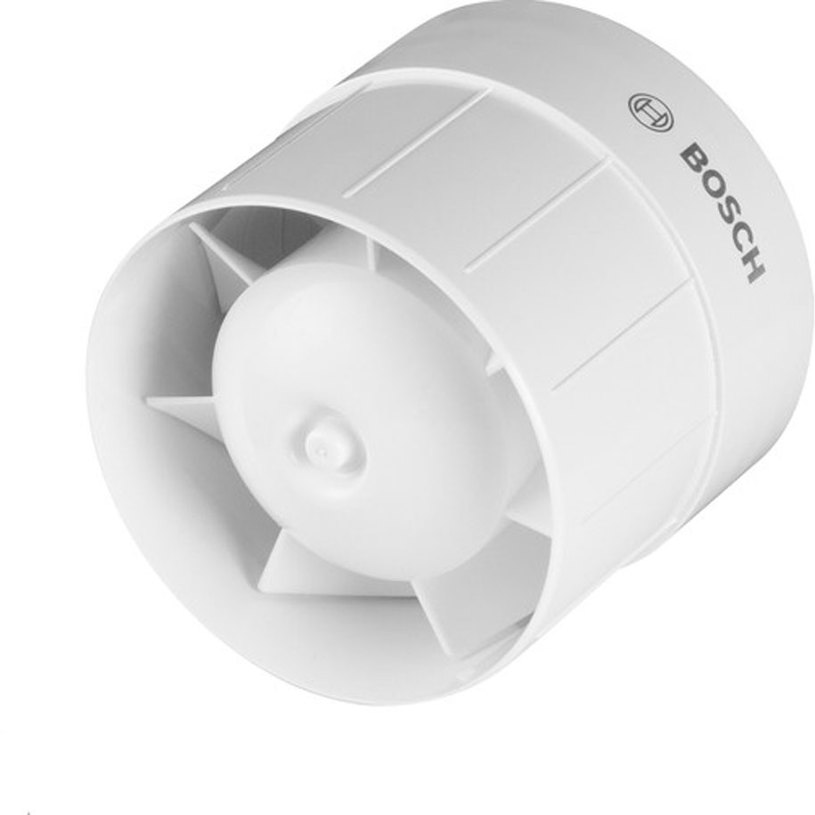

BOSCH F1200 D125 Inline Duct Bathroom Fan, Ø125 mm, 215 m³/h
Hidden inside the duct: the moving parts stay out of the bathroom and the front grille is your choice.
The BOSCH F1200 D125 is an axial inline duct fan for bathrooms, toilets, offices and shops, fitted inside a round 125 mm duct. It moves 215 m³/h of air at a sound pressure level of 38 dB(A) measured at 3 m. Its roller-bearing motor is rated for 30,000 operating hours.
215 m³/h airflow clears shower steam fast
That air exchange handles moisture and odours in a standard-sized bathroom or toilet, including windowless rooms. The fan works against 56 Pa of external static pressure, so a longer duct run to the facade is no problem.
Roller-bearing motor rated for 30,000 hours
Roller bearings cope with long running times and the frequent starts typical of a shared bathroom. Power input is 19 W at 230–240 V, drawing 123 mA.
Ø125 mm body installs inside the duct itself
The unit sits inside a round duct with a 125 mm internal diameter rather than on the wall, so only the outlet grille remains visible. The 90 mm long housing weighs 0.50 kg, which makes fixing it in a suspended ceiling or a shaft straightforward.
IPX4 motor protection for damp rooms
This protection class covers splashing water from any direction, exactly the conditions inside bathroom and shower extraction. The fan is manufactured in line with EU Regulation 1253/2014 and the ErP directive.
Specifications
General
Performance
Power supply
Dimensions & weight
General
| Brand | BOSCH |
| MODEL | F1200 D125 |
| DIAMETER | 125 mm |
| DEBIT | 215 м3/ч |
| NOISE LEVEL | 38 dB |
| COLOUR | БЯЛ |
| WARRANTY | 24 MONTHS |
| MODEL | F1200 D125 |
| DIAMETER | 125 mm |
| DEBIT | 215 м3/ч |
| NOISE LEVEL | 38 dB |
| COLOUR | БЯЛ |
| WARRANTY | 24 MONTHS |
| EAN | 4057749743473 |
