ВЕНТИЛАТОР ЗА БАНЯ ELPLAST EOL 100 B
- DIAMETER : 100 mm
- DEBIT : 100 m3/h
- NOISE LEVEL : 39.5 dB
- COLOUR : БЯЛ

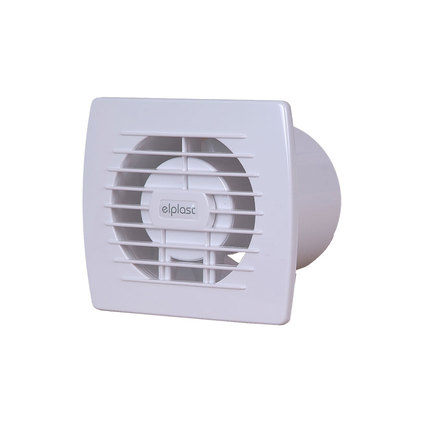

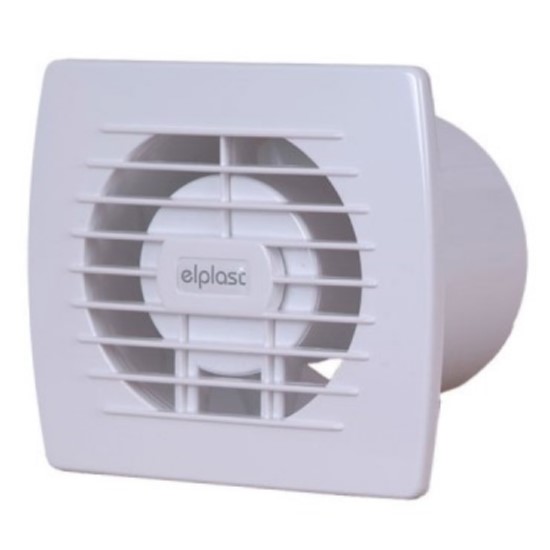

ELPLAST EOL 100 B Bathroom Fan, Ø100 mm, 100 m³/h
Splash-protected axial wall fan built for damp sanitary rooms.
The ELPLAST EOL 100 B bathroom fan is a domestic axial unit for Ø100 mm ducts, moving 100 m³ of air per hour. Its ABS housing with a slim front panel and IP-X4 rating suit it to wet rooms such as bathrooms and WCs.
100 m³/h airflow for bathrooms and WCs
That air volume matches a typical apartment bathroom or toilet and clears steam after a shower. The Ø100 mm spigot fits standard ventilation openings and ducting.
Splash-protected ABS housing
The IP-X4 rating allows operation in bathroom zones exposed to splashing water. The plastic housing does not corrode in humid air, and the slim front panel sits close to the wall.
Quiet operation at 39.5 dB(A) with 19 W input
The sleeve-bearing axial motor spins at 2550 rpm and runs off the 230 V / 50 Hz mains. The noise figure is measured at a distance of 3 m.
Specifications
General
Technical data
Power supply
| Brand | ELPLAST |
| MODEL | EOL 100 B |
| DIAMETER | 100 mm |
| DEBIT | 100 m3/h |
| NOISE LEVEL | 39.5 dB |
| COLOUR | БЯЛ |
| ADDITIONAL EXTRAS | No |
| VALVE | No |
| WARRANTY | 24 MONTHS |
| MODEL | EOL 100 B |
| DIAMETER | 100 mm |
| DEBIT | 100 m3/h |
| NOISE LEVEL | 39.5 dB |
| ADDITIONAL EXTRAS | No |
| VALVE | No |
| COLOUR | БЯЛ |
| WARRANTY | 24 MONTHS |
| EAN | 5907813631153 |
