Bathroom extractor fan

CATA UC 10 STD Black Bathroom Extractor Fan, Ø100 mm, 110 m³/h, 26 dB

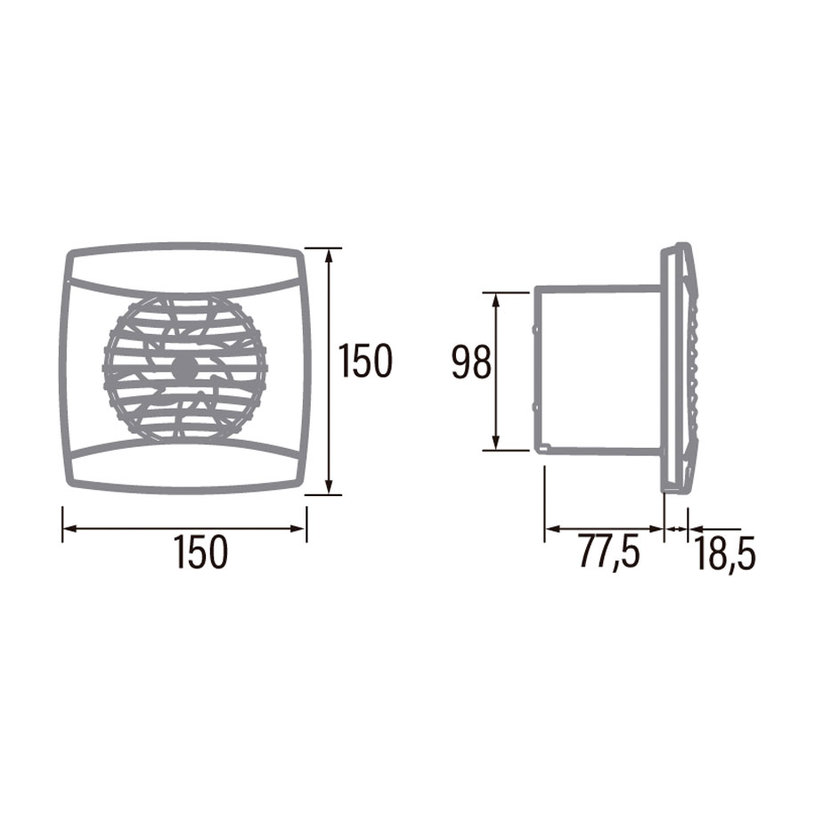

Slim black 150 x 150 mm panel projecting just 18.5 mm, for wall or ceiling fitting.

The CATA UC 10 STD Black is an axial domestic extractor fan for 100 mm ducting. It moves 110 m³/h of humid air and odours at a 26 dB noise level, while the built-in shutter blocks backdraught from the duct. Made in Spain.

110 m³/h airflow for bathrooms and WCs

Post-shower humidity and odours are pushed outside through standard Ø100 mm ducting. The motor runs at up to 2500 rpm while drawing only 8 W, so the fan can stay on after you leave the bathroom.

26 dB noise level for night-time use

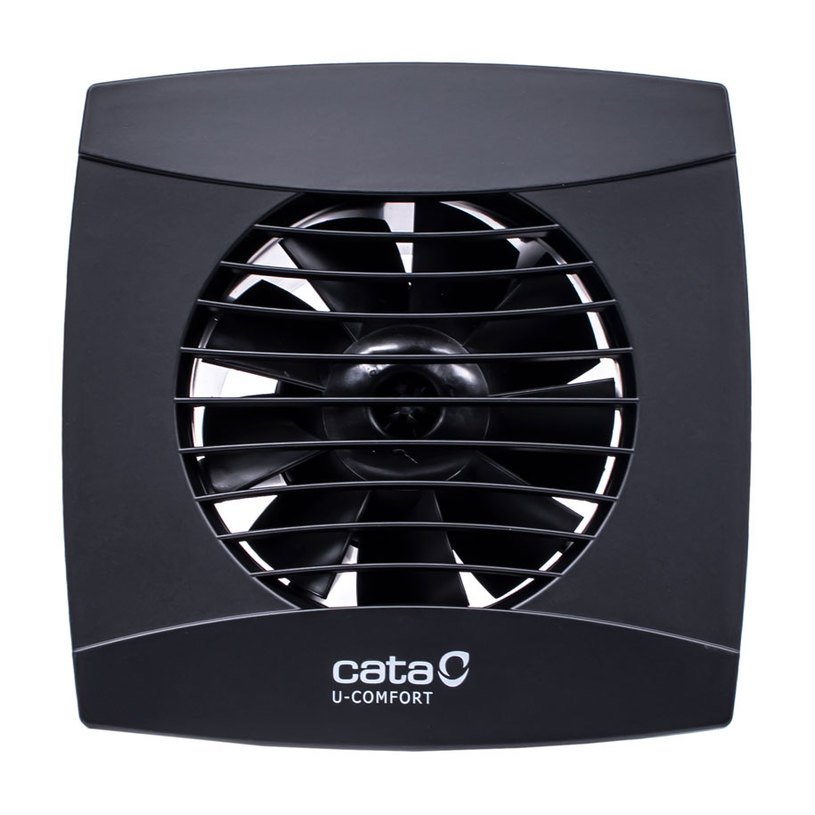

Quiet operation makes it suitable for a bathroom next to a bedroom or nursery. The black 150 x 150 mm front panel clips off for cleaning without removing the body.

Non-return shutter against backdraught

The shutter closes when the motor stops, keeping air and odours from the shared duct out of the room. Power is 230 V / 50 Hz, wired to the light switch or to a separate button.
