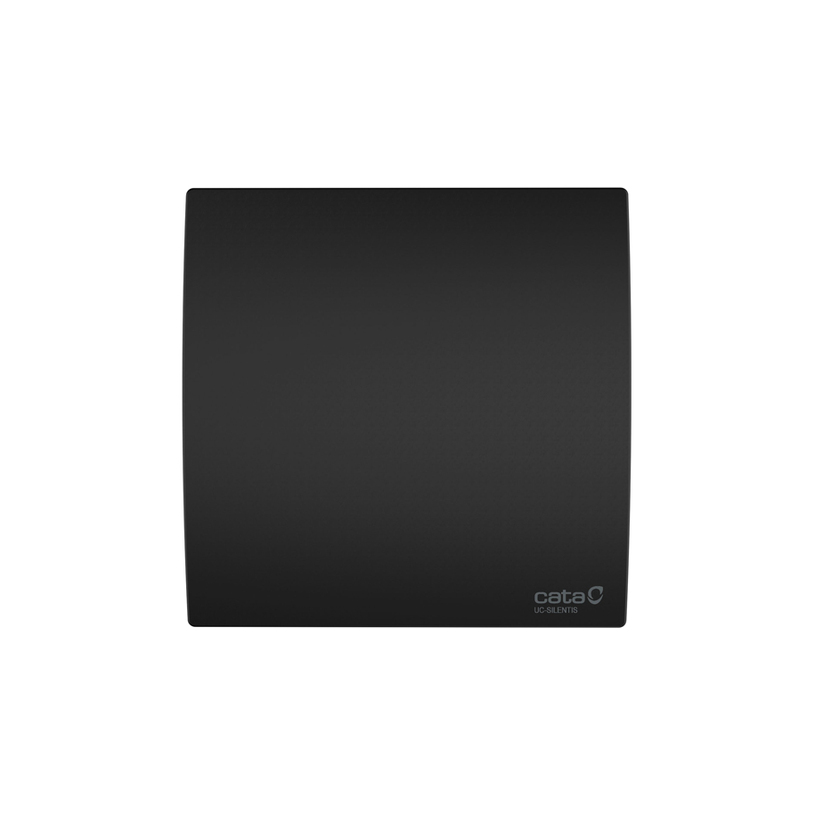

The CATA UC-10 SILENTIS Black bathroom extractor fan connects to a standard Ø100 mm duct and draws just 8 W, with a black front panel. It mounts on the wall or ceiling, and the faceplate lifts off so you can clean the impeller without removing the body.

Helicocentrifugal impeller for longer duct runs

This impeller type keeps its flow even when the duct has several bends or exits through the roof, where plain axial fans lose performance. It runs on a ball bearing at a single speed, switched from the light circuit or a separate switch.

Backdraught flap included

The flap is factory-fitted in the Ø96.6 mm outlet and closes when the fan stops, keeping odours and cold air from the shared shaft out of the room.

Wall or ceiling installation on Ø100 mm duct

The fan fits a standard Ø100 mm pipe and needs only 37.4 mm of recess depth. Power is 220-240 V, 50/60 Hz, double-insulated, with no earth connection required.
