Air-to-water heat pump

DAIKIN EHBX08E6V/ERGA06EVH Air-to-Water Split Heat Pump, 6 kW, R32, Single Phase

Operates at outdoor temperatures as low as -25 °C and delivers water up to 65 °C, including to existing radiators.

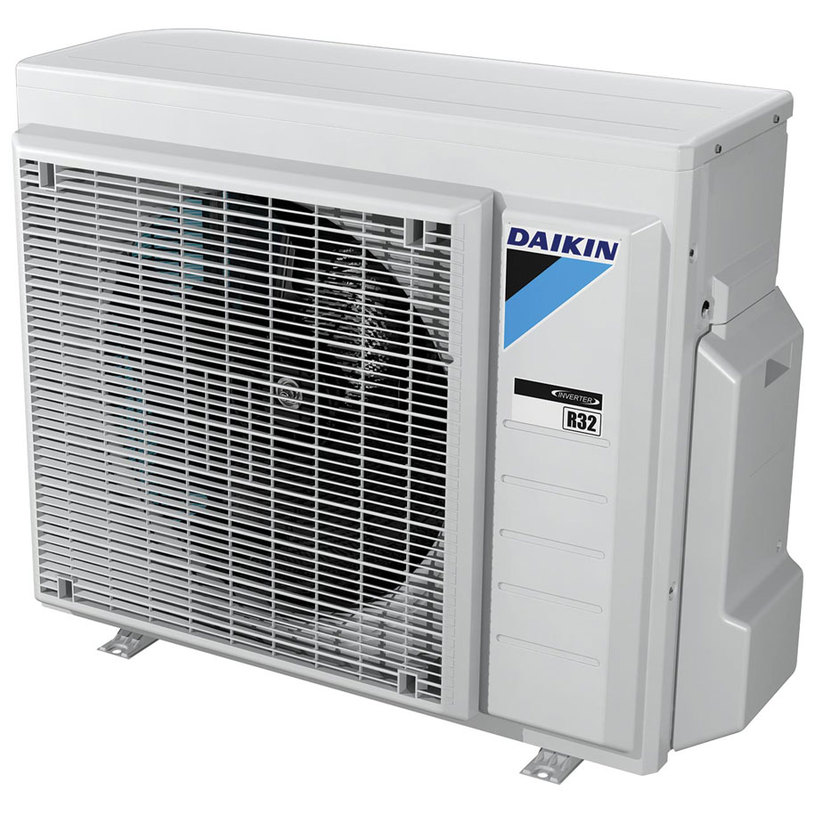

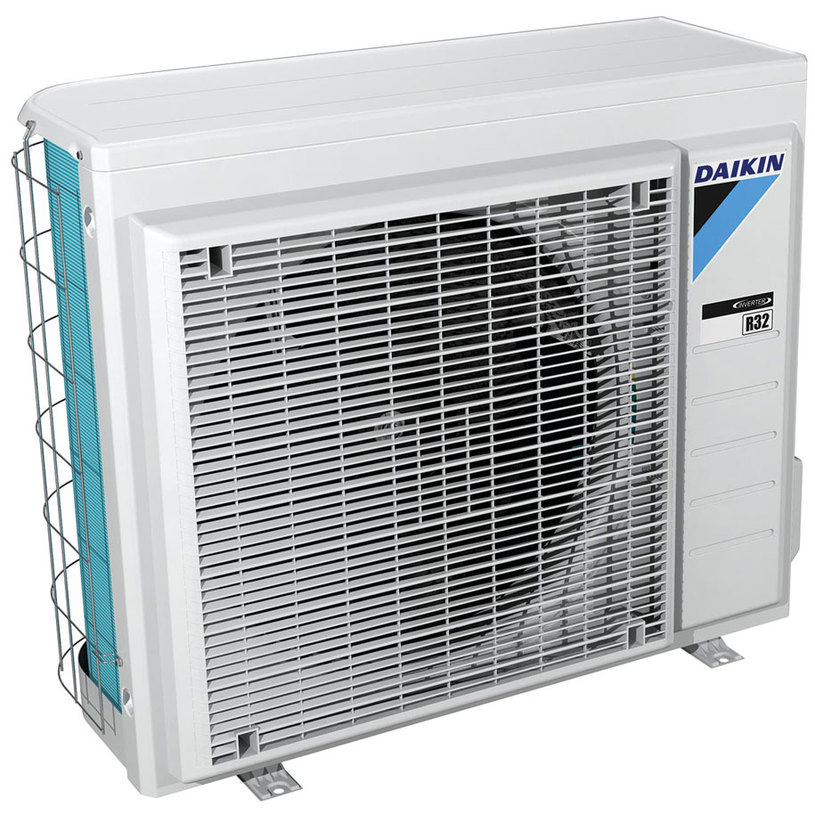

The DAIKIN EHBX08E6V/ERGA06EVH is a low-temperature air-to-water split heat pump running on single-phase power and R32 refrigerant. The set pairs the ERGA06EVH outdoor unit with the wall-mounted EHBX08E6V hydro module, which includes a 6 kW electric backup heater. It covers heating and cooling and can be combined with a Daikin stainless steel or ECH2O thermal storage module.

Heating down to -25 °C outdoors

The outdoor unit still extracts heat from the air in deep winter, with a heating range from -25 °C to +35 °C. In cooling mode it works between +10 °C and +43 °C, covering peak summer conditions too.

Water up to 65 °C for new builds and renovations

The high leaving water temperature feeds underfloor loops as well as radiators already in place, so the existing distribution system can stay. That makes the unit a practical replacement for an older boiler.

A+++ energy class in heating

A COP of 4.85 in heating and an EER of 5.61 in cooling show how much heat or cooling the system delivers per unit of electricity used. Rated power input is 1.240 kW in heating and 1.060 kW in cooling.

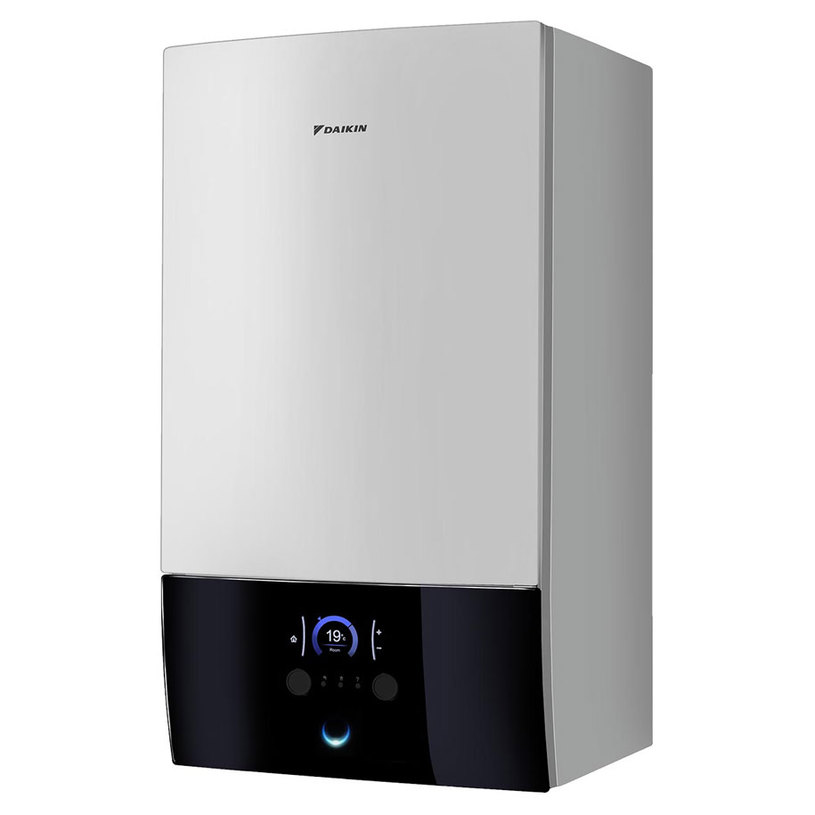

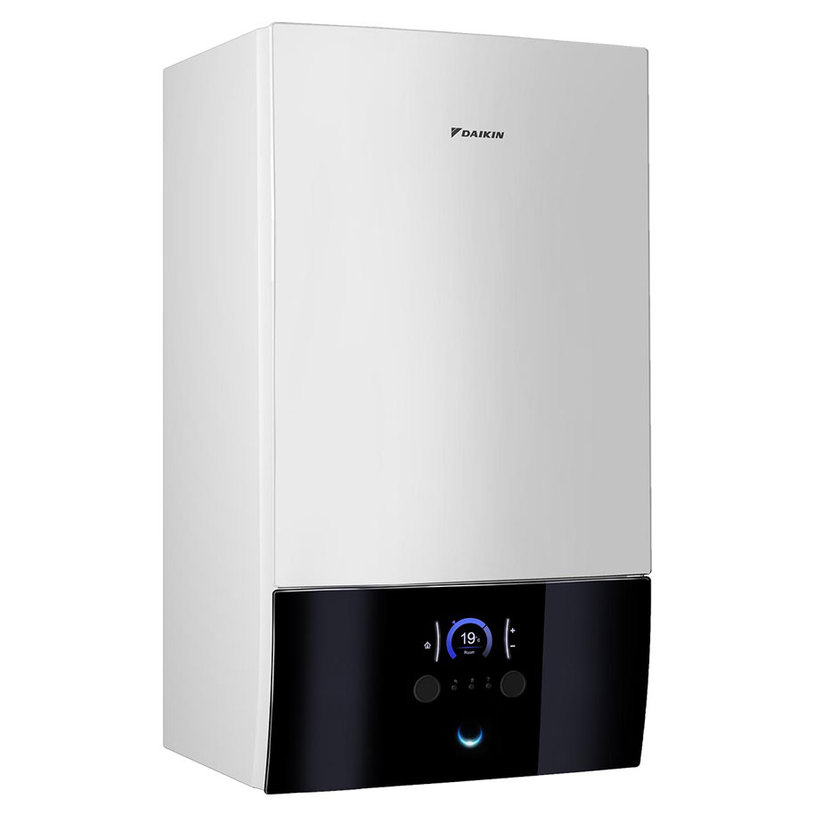

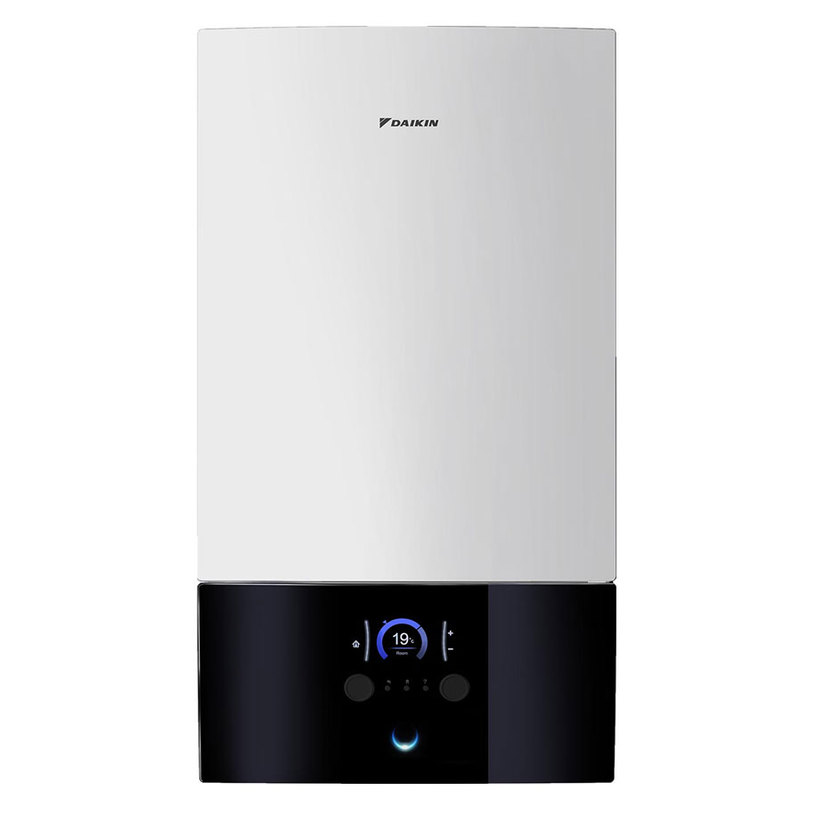

Compact wall-mounted hydro module

The indoor unit weighs 42 kg and mounts on the wall in a utility room or alongside kitchen units, its clean white casing blending with other appliances. Sound pressure is 28 dB, low enough for a living area.

R32 refrigerant and single-phase supply

R32 refrigerant has a lower global warming potential than R410A and needs a smaller charge for the same output. The supply is single phase, so no three-phase connection is required on site.
