СТРУКТУРА ЗА ВГРАЖДАНЕ ROCA ACTIVE ONE AC4
- BUTTON OF THE FLUSHING SYSTEM : DOUBLE
- CAPACITY OF THE FLUSHING SYST : 6.00 L
- CONDENSATION INSULATION
- PAYLOAD : 400.00 kg
- WIDTH : 500.00 мм
- HEIGHT : 1200.00 мм

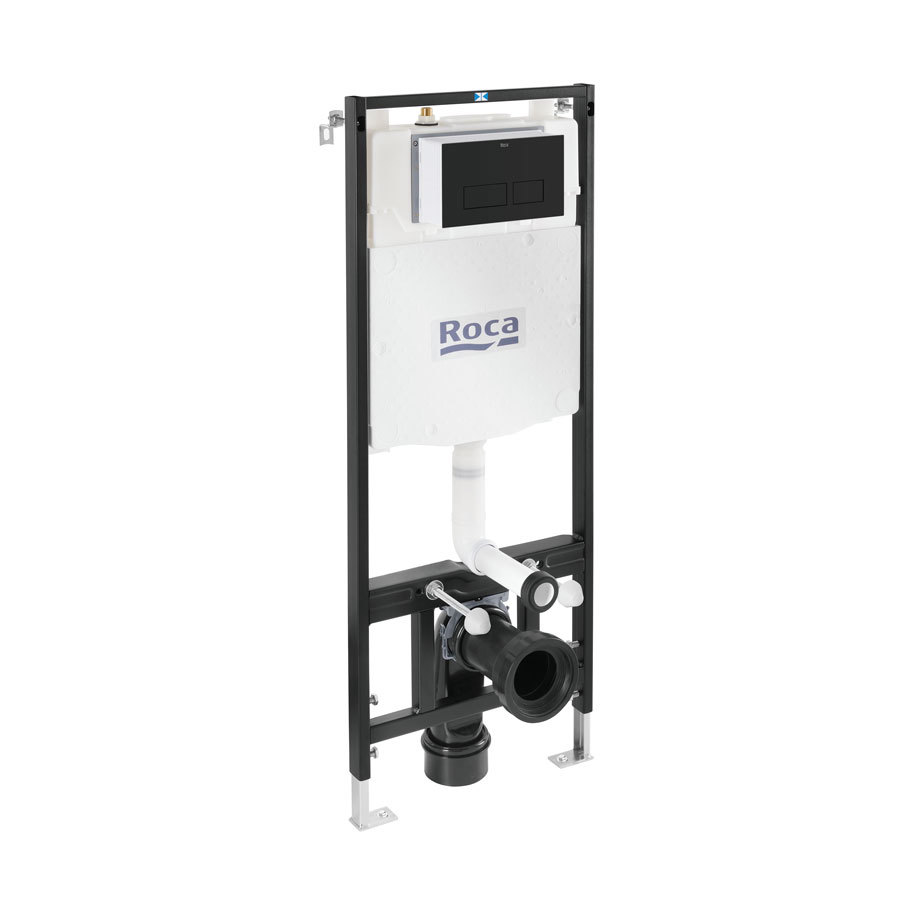

ROCA ACTIVE ONE In-Wall WC Frame with AC4 Dual Flush Plate, 6 L, 500x1200 mm
400 kg load rating and 200 mm height adjustment for floor, wall or drywall installation.
The ROCA ACTIVE ONE in-wall frame (A89P06002E) with the mechanical AC4 dual flush plate in matt black is built for wall-hung WC pans in both masonry and drywall builds. The concealed cistern holds 6 L with dual flush, and the steel frame supports up to 400 kg. Supplied fixing accessories set the distance from the load-bearing wall.

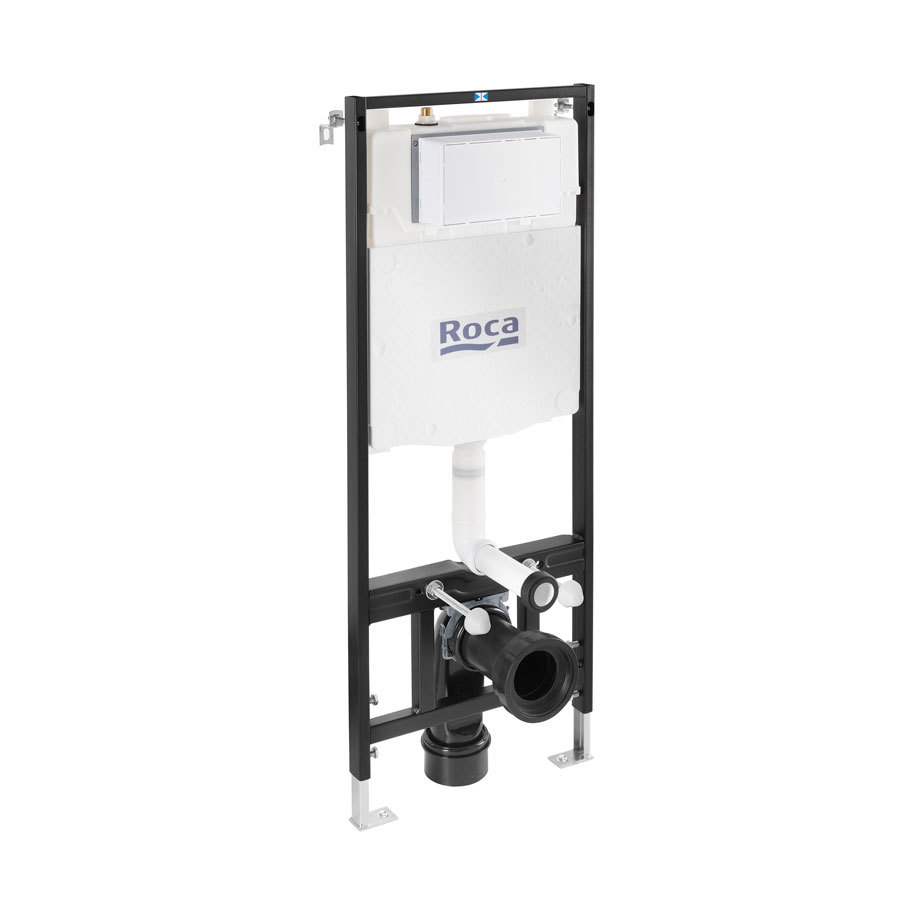

400 kg load capacity on a powder-coated steel frame
The frame is powder-coated against corrosion in humid bathrooms and anchors to floor and wall, or into a drywall partition alone. The load-bearing profile carries both the pan and the user leaning on it.
Adjustable feet with 200 mm height range
The mechanism in the feet is set during installation to align the pan height with the finished floor. The distance from the solid wall is set with the included fixing accessories.

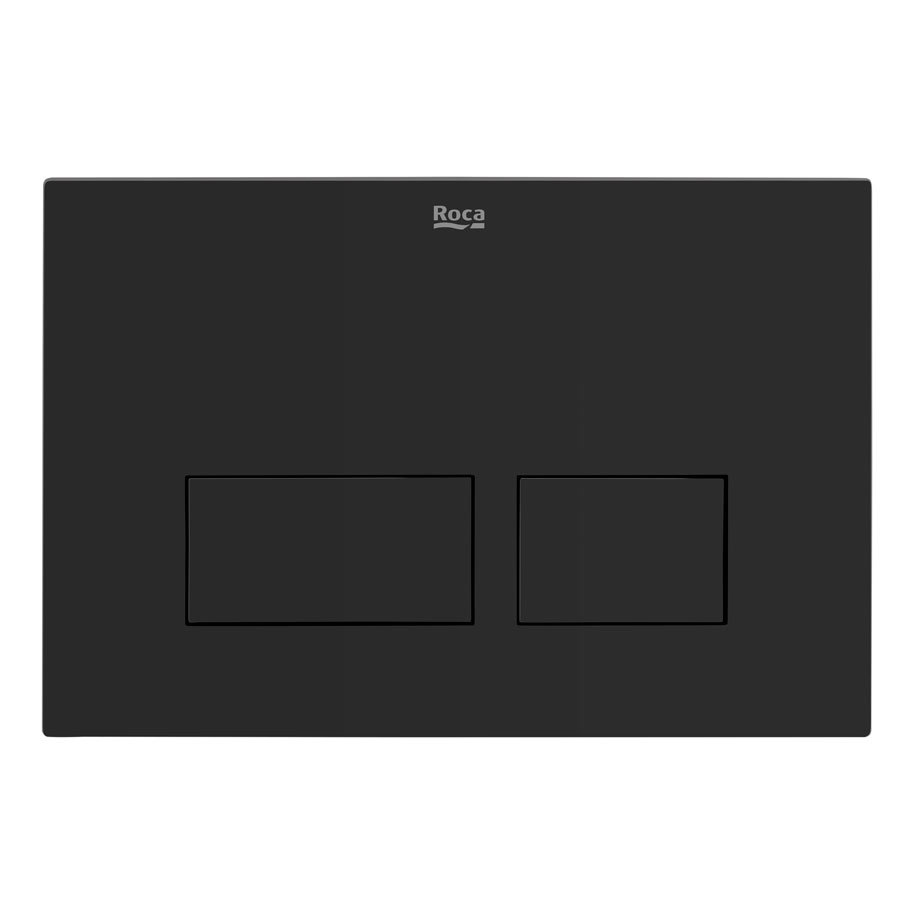

AC4 dual flush plate in matt black, front access
The activator is mechanical and separates the small from the full flush, keeping daily water use in check. The matt black finish pairs with dark taps and accessories in a contemporary bathroom.
Anti-condensation insulation protects the wall
The cistern is wrapped in an insulating layer that prevents droplets forming on the cold outer surface. The inside of the partition wall and the tiling stay dry.
Specifications
General
Dimensions and load
Materials
In the box
| Brand | ROCA |
| MODEL | ACTIVE ONE AC4 |
| BUTTON OF THE FLUSHING SYSTEM | DOUBLE |
| CAPACITY OF THE FLUSHING SYST | 6.00 L |
| CONDENSATION INSULATION | Yes |
| PAYLOAD | 400.00 kg |
| WIDTH | 500.00 мм |
| HEIGHT | 1200.00 мм |
| WARRANTY SANITARY | 120 МЕСЕЦА |
| EAN | 8433290826852 |
