Concealed WC installation frame

GEBERIT Duofix In-Wall WC Frame 112 cm with Delta 12 cm Cistern and Delta01 Chrome Flush Plate

Self-supporting steel frame rated for 400 kg, complete with a dual-flush plate.

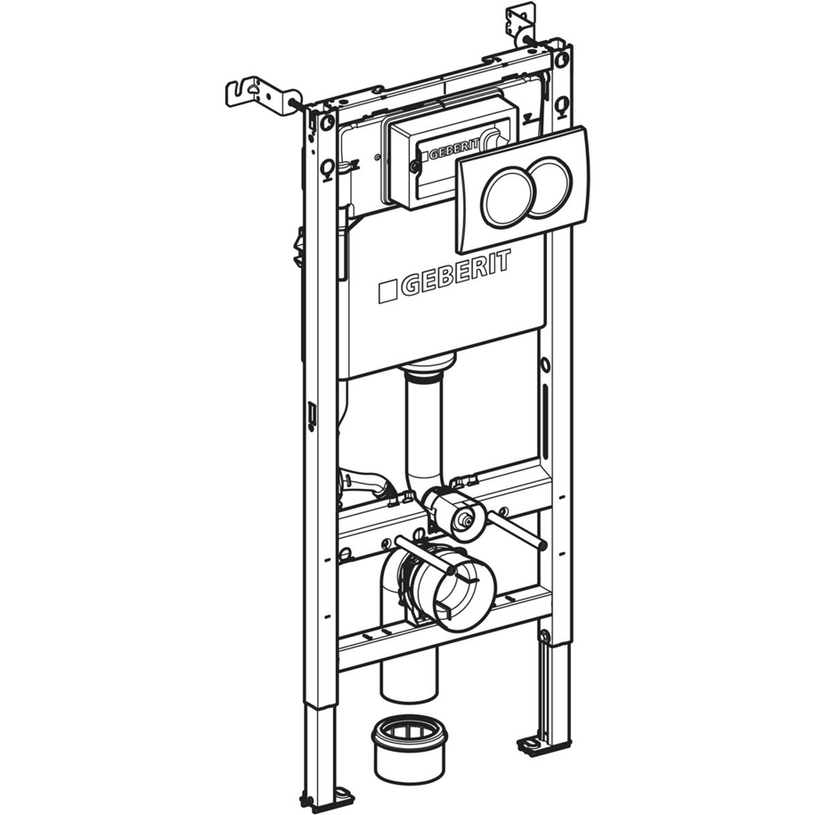

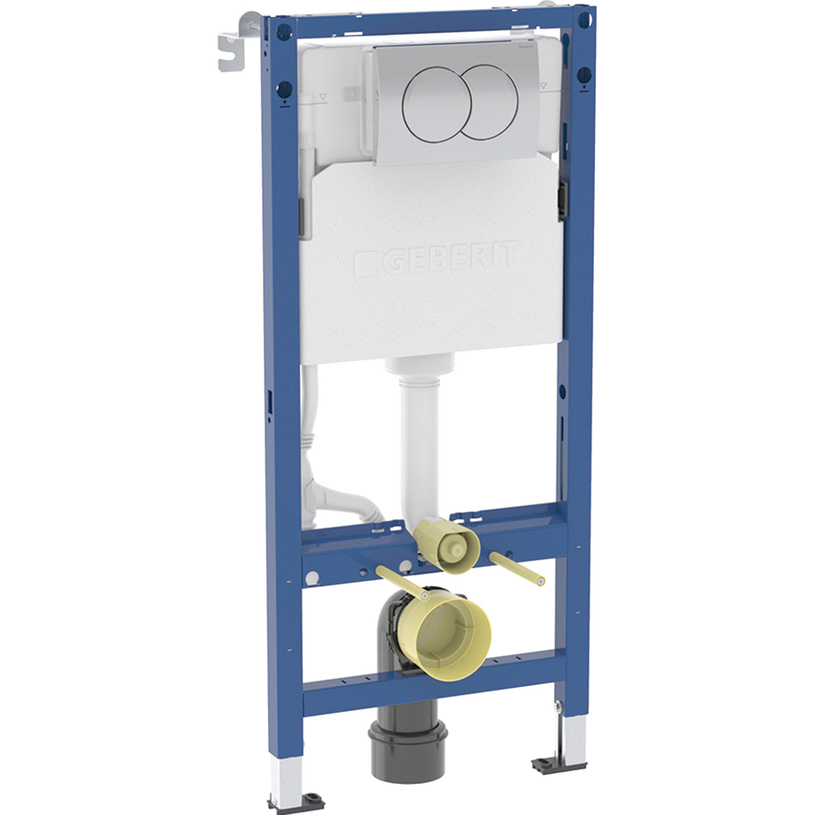

The GEBERIT Duofix in-wall frame, 1120 mm high, carries a wall-hung WC pan and installs into stud walls or pre-wall constructions. The set arrives complete with the Delta 12 cm concealed cistern, a chrome Delta01 flush plate, a ø 90 mm WC connection set and the water supply unit with angle stop valve.

400 kg load capacity in drywall construction

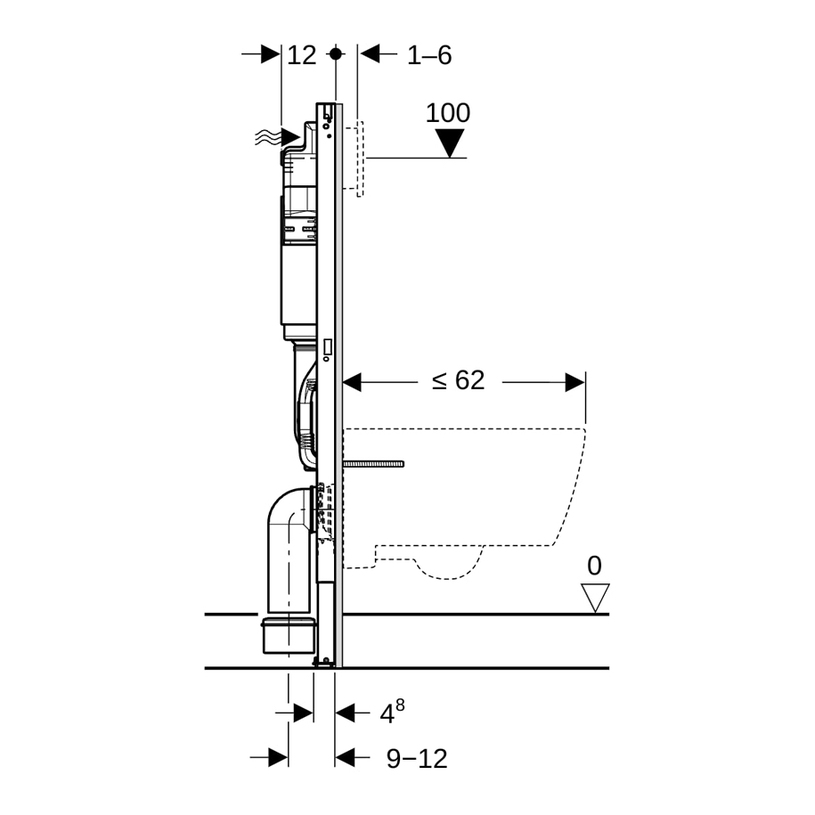

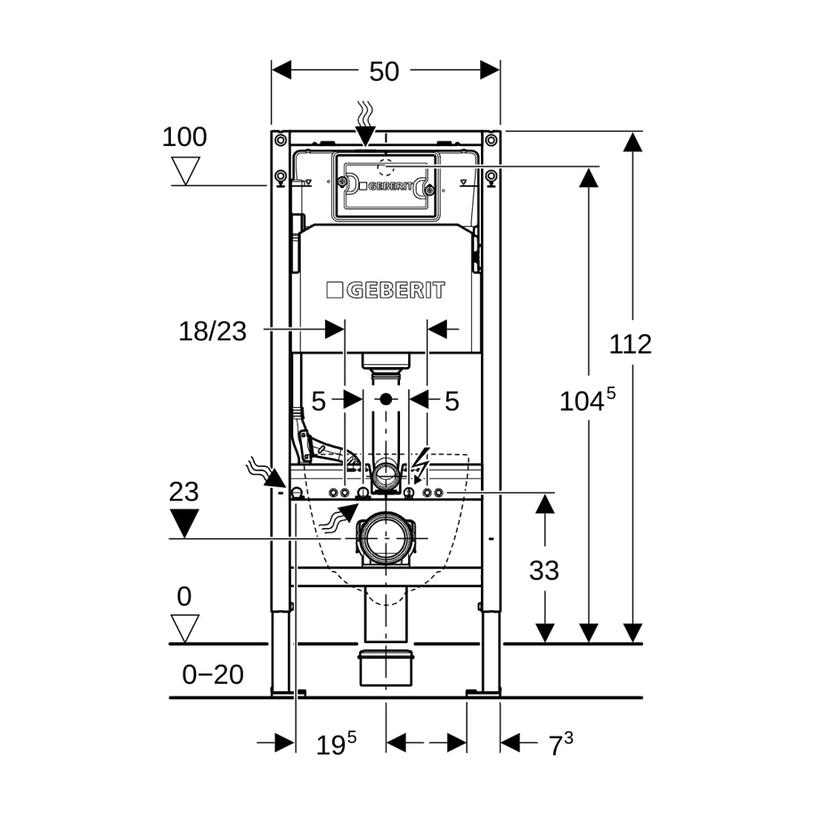

The frame is statically self-supporting, so no load-bearing masonry is needed — the legs fix to studs spaced 500 mm apart. Powder-coated steel resists corrosion and the height-adjustable feet cover floor build-ups from 0 to 20 cm.

Dual flush 6 / 3 l with adjustable volume

The large flush can be reset to 4, 4.5, 6 or 7.5 l and the small one anywhere from 2 to 4 l, matching the pan and the household. The cistern works at 0.1–10 bar and allows an immediate repeat flush straight after the first.

Full condensation insulation on the cistern

Full insulation keeps moisture out of the wall cavity when cold water meets warm room air. All components in contact with drinking water are lead-free.
