In-wall installation frame for wall-hung WC

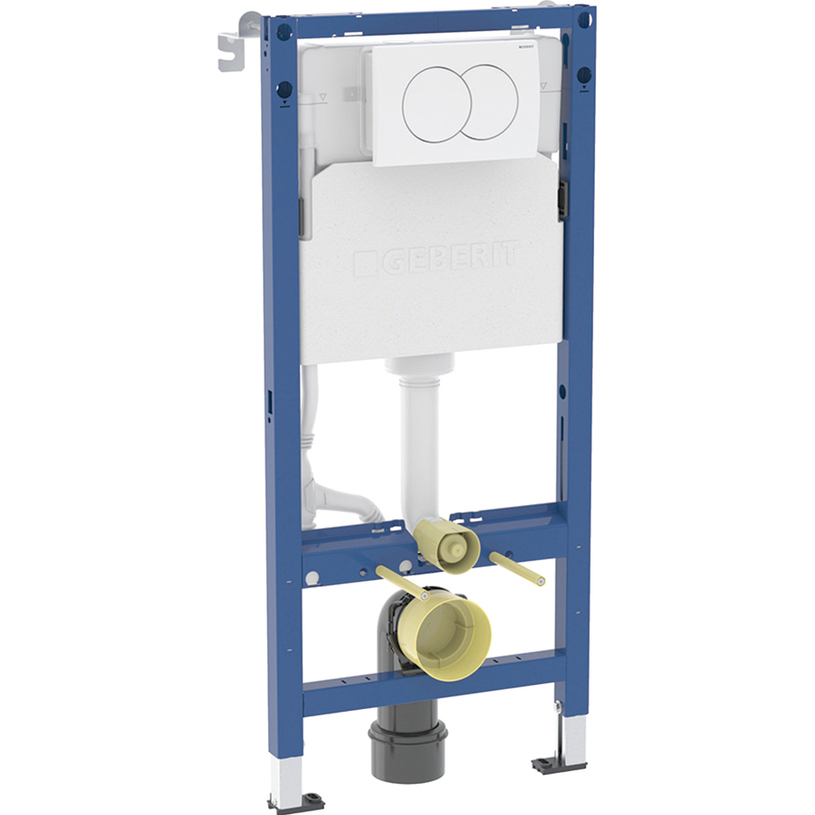

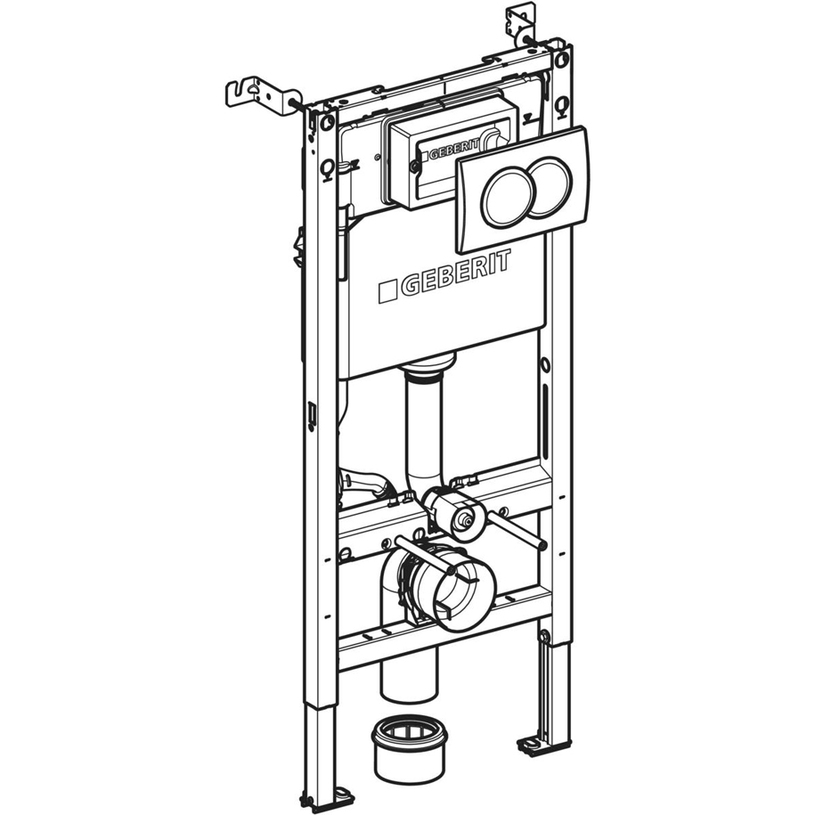

Geberit Duofix In-Wall Frame 112 cm with Delta 12 cm Concealed Cistern and White Delta01 Flush Plate

Self-supporting steel frame with a 6/3 l dual-flush cistern — a complete set ready for drywall installation.

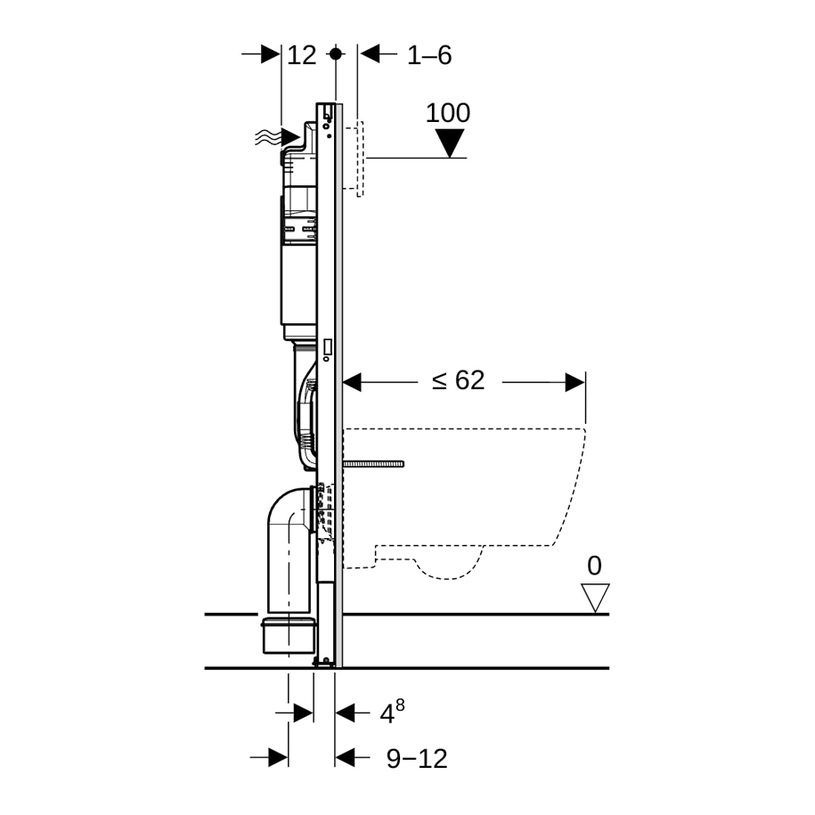

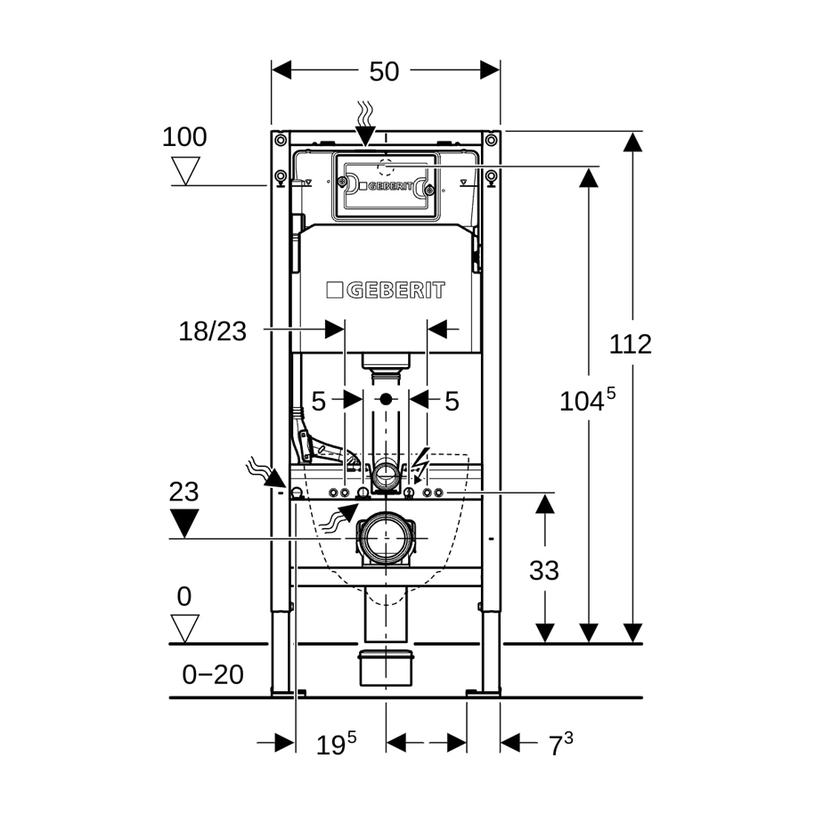

The Geberit Duofix in-wall frame with a Delta 12 cm concealed cistern is built for wall-hung toilets in drywall partitions and pre-wall constructions. The set arrives with the white Delta01 flush plate, a ø 90 mm waste connection kit and an R 1/2" water supply unit. The frame stands 112 cm high and 50 cm wide and takes any wall-hung pan with EN 33 connection dimensions.

6/3 l dual flush with adjustable volumes

The large flush can be reset to 4, 4.5, 6 or 7.5 litres and the small one anywhere between 2 and 4 litres, matching the pan and the household. The cistern operates from 0.1 to 10 bar and supports single, dual and stop-and-go flushing.

White Delta01 flush plate included

Two round buttons are actuated from the front, and the plate is part of the delivery, so no separate actuator order is needed. The white alpine finish blends into light tiling and painted walls.

Cistern fully insulated against condensation

The insulation keeps condensation off the concealed tank and away from the structure inside the wall. Water can be fed in from the rear or from the top centre, and every part in contact with drinking water is lead-free.
