КОМПЛЕКТ СТРУКТУРА ЗА ВГРАЖДАНЕ ROCA GAP
- BUTTON OF THE FLUSHING SYSTEM : DOUBLE
- CAPACITY OF THE FLUSHING SYST : 6.00 L
- CONDENSATION INSULATION
- PAYLOAD : 400.00 kg
- LENGTH : 540.00 мм
- WIDTH : 455.00 мм
- HEIGHT : 1160.00 мм

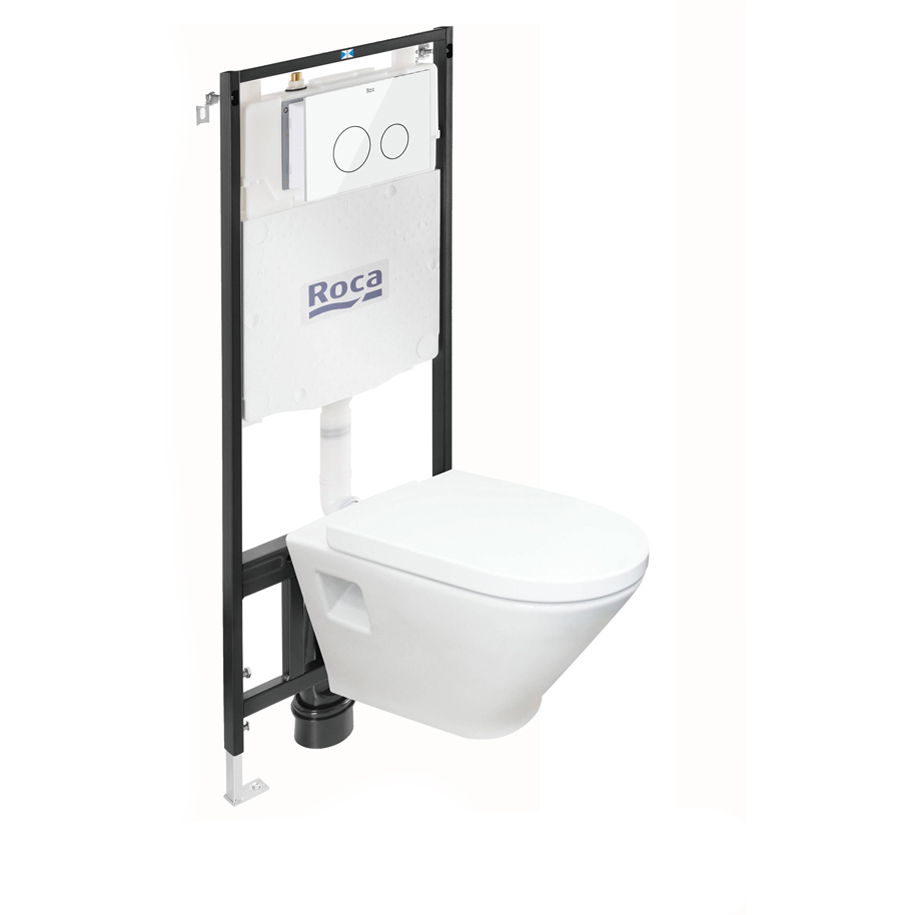

ROCA GAP Concealed WC Frame Set with Dual Flush Button and 6 L Cistern
Hidden 6 L dual-flush cistern on a steel frame rated for 400 kg.
The ROCA GAP concealed WC frame set combines a load-bearing frame, a built-in 6 L dual-flush cistern and anti-condensation insulation in one wall-hung solution. It measures 540 x 455 x 1160 mm and is rated for a 400 kg load.

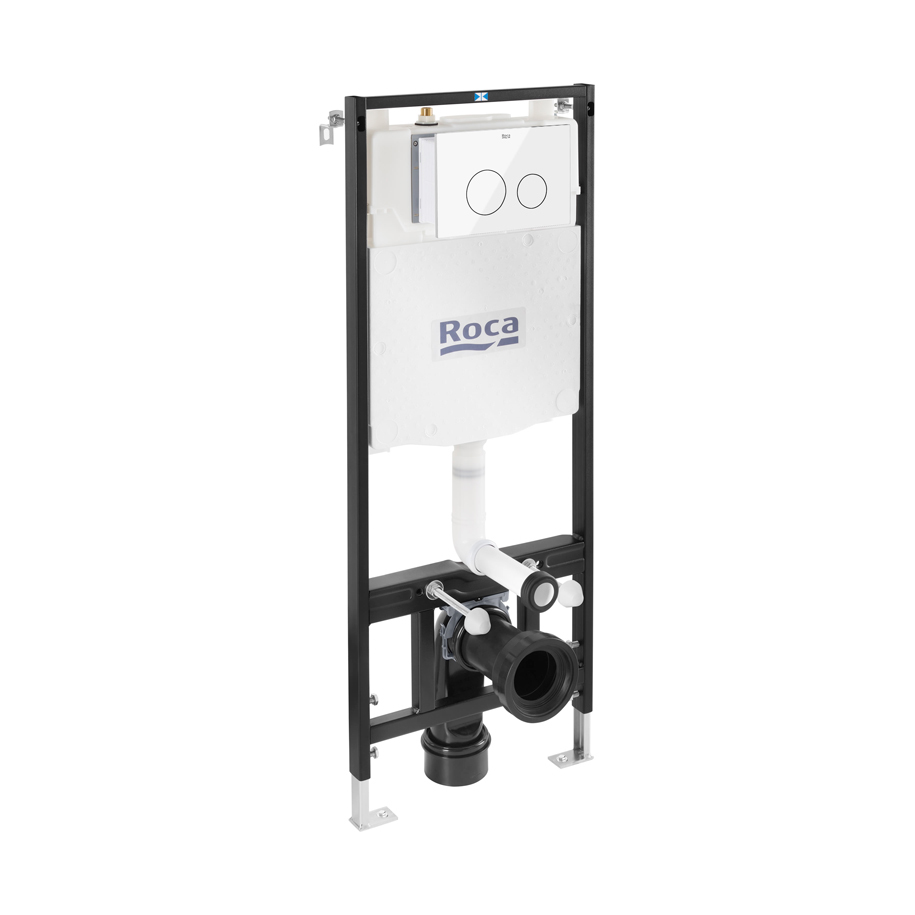

Dual flush button for full or reduced rinse
Two keys on the face plate control the flush: one releases the full volume, the other only part of it. The 6 L cistern stays fully hidden inside the partition, leaving only the plate on show.

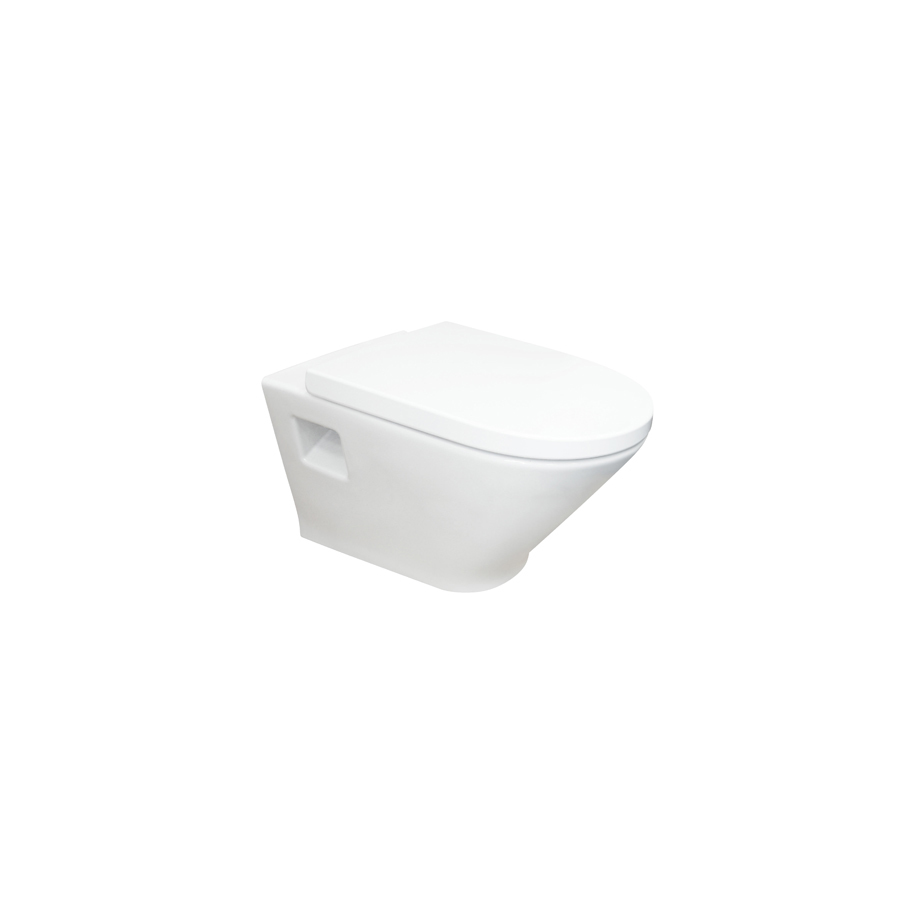

400 kg load rating for wall-hung installation
The support frame carries both the pan and the user, while the floor underneath stays completely clear for cleaning. Threaded studs allow precise levelling against the finished tiling.
Anti-condensation insulation protects the wall build-up
A jacket around the cistern stops moisture forming on its walls when cold water meets warm bathroom air, keeping the plasterboard and joints behind the partition dry.

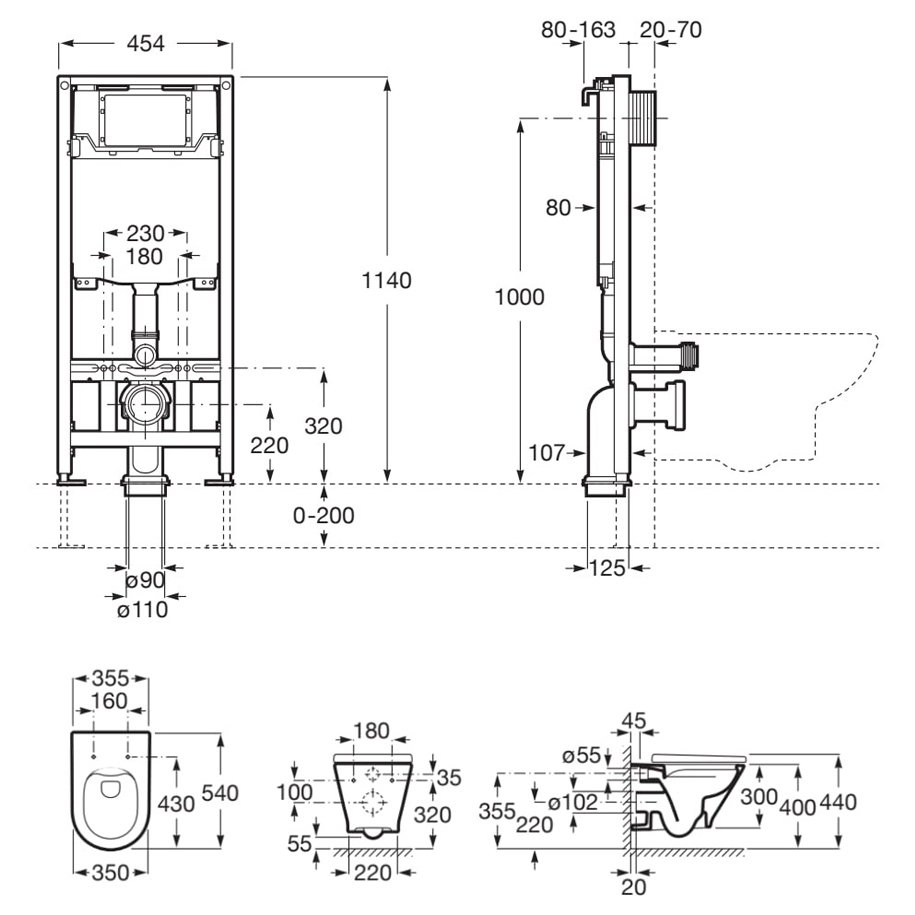

540 x 455 x 1160 mm footprint for partition planning
Standing just over a metre tall, the frame can be boxed into a low partition or a niche, and its 455 mm width fits between standard drywall studs. Water and waste connections are made before the panel is closed.
Specifications
Main
Dimensions & weight
| Brand | ROCA |
| MODEL | GAP |
| BUTTON OF THE FLUSHING SYSTEM | DOUBLE |
| CAPACITY OF THE FLUSHING SYST | 6.00 L |
| CONDENSATION INSULATION | Yes |
| PAYLOAD | 400.00 kg |
| LENGTH | 540.00 мм |
| WIDTH | 455.00 мм |
| HEIGHT | 1160.00 мм |
| WARRANTY SANITARY | 120 МЕСЕЦА |
| WARRANTY STRUCTURE | 120 МЕСЕЦА |
