КОМПЛЕКТ СТРУКТУРА ЗА ВГРАЖДАНЕ ROCA ADELE
- BUTTON OF THE FLUSHING SYSTEM : DOUBLE
- CAPACITY OF THE FLUSHING SYST : 4.50 L
- CONDENSATION INSULATION
- PAYLOAD : 400.00 kg
- LENGTH : 530.00 мм
- WIDTH : 454.00 мм
- HEIGHT : 1114.00 мм

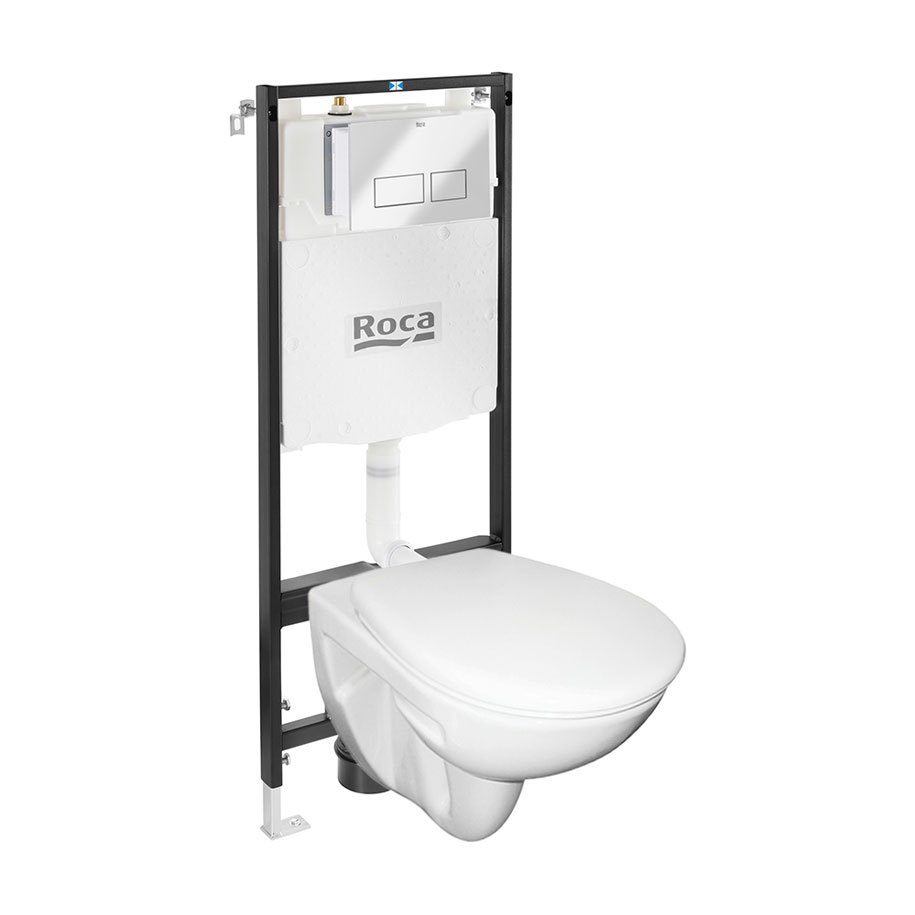

ROCA ADELE Concealed Frame Set with Wall-Hung WC, Seat and AC4 Flush Plate
Everything for a wall-hung toilet in one box — frame, pan, seat and flush plate.
The ROCA ADELE concealed frame set combines the ONE metal frame (A89P06002E), the Adele wall-hung WC pan (A346196000) with seat, and the AC4 mechanical dual flush plate. It suits floor-and-wall fixing as well as drywall partitions. The 4.50 L cistern stays hidden inside the wall, leaving only the pan and the plate on show.
400 kg load capacity from a powder-coated steel frame
The load-bearing frame is powder-coated steel that copes with bathroom humidity. It fixes to floor and wall or into a plasterboard partition, which covers both refurbishments and newly planned bathrooms.
Height adjustment of up to 200 mm during installation
Mechanism-equipped legs allow precise levelling against the finished floor. The supplied mounting accessories also set the distance from the solid wall where pipework runs behind the frame.
AC4 dual flush plate and anti-condensation insulation
The mechanical plate delivers two flush volumes and needs no power supply. The cistern carries anti-condensation insulation, so cold water does not leave moisture on the wall build-up.
Oval Adele vitreous china pan with horizontal outlet
The pan is wall-mounted, with a standard flush and a horizontal outlet into the wall. The clean oval lines of the Adele range sit well with white sanitaryware and furniture in most styles.
Specifications
General
Installation
Dimensions
Materials
In the box
| Brand | ROCA |
| MODEL | ADELE |
| BUTTON OF THE FLUSHING SYSTEM | DOUBLE |
| CAPACITY OF THE FLUSHING SYST | 4.50 L |
| CONDENSATION INSULATION | Yes |
| PAYLOAD | 400.00 kg |
| LENGTH | 530.00 мм |
| WIDTH | 454.00 мм |
| HEIGHT | 1114.00 мм |
| WARRANTY SANITARY | 120 МЕСЕЦА |
| WARRANTY STRUCTURE | 120 МЕСЕЦА |
