SET STRUCTURE FOR BUILT-IN IDEALSTANDARD PROSYS TESI AQUABLADE
- BUTTON OF THE FLUSHING SYSTEM : DOUBLE
- CAPACITY OF THE FLUSHING SYST : 6.00 L
- CONDENSATION INSULATION
- PAYLOAD : 400.00 kg

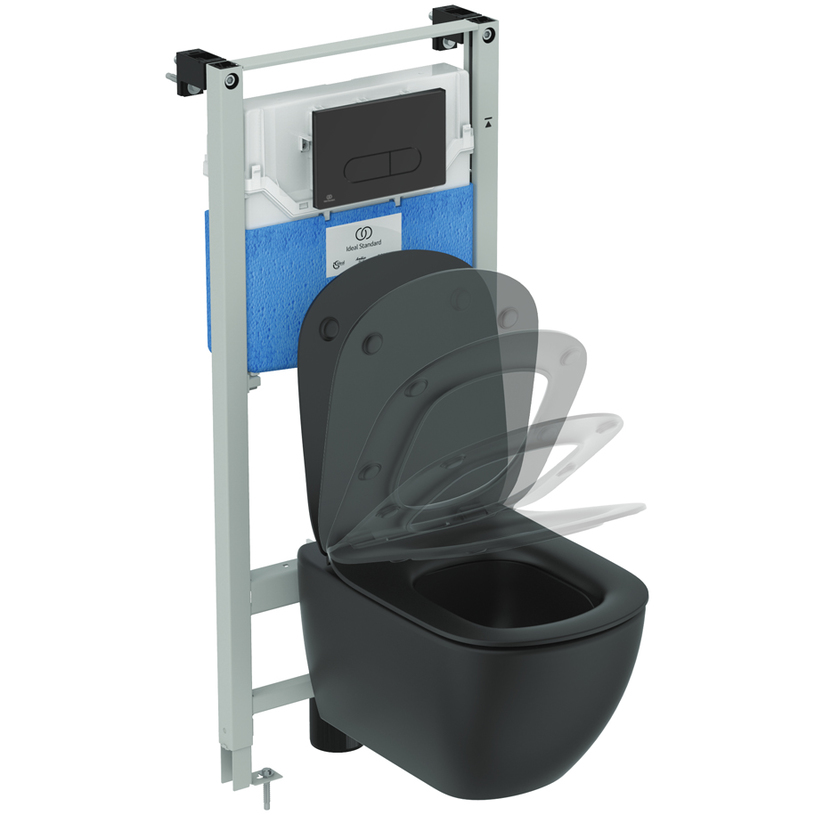

IDEALSTANDARD PROSYS TESI AQUABLADE In-Wall Frame Set with Wall-Hung WC
AquaBlade® flushing that rinses 95% of the bowl's inner surface.
The IDEALSTANDARD PROSYS TESI AQUABLADE in-wall set combines a Tesi wall-hung ceramic pan, an ultra-thin soft-closing seat, the ProSys 120P frame and the pneumatic Oleas™ P1 dual-flush plate. Everything needed to install a wall-hung WC against a solid wall or between two stud partitions arrives in one delivery.

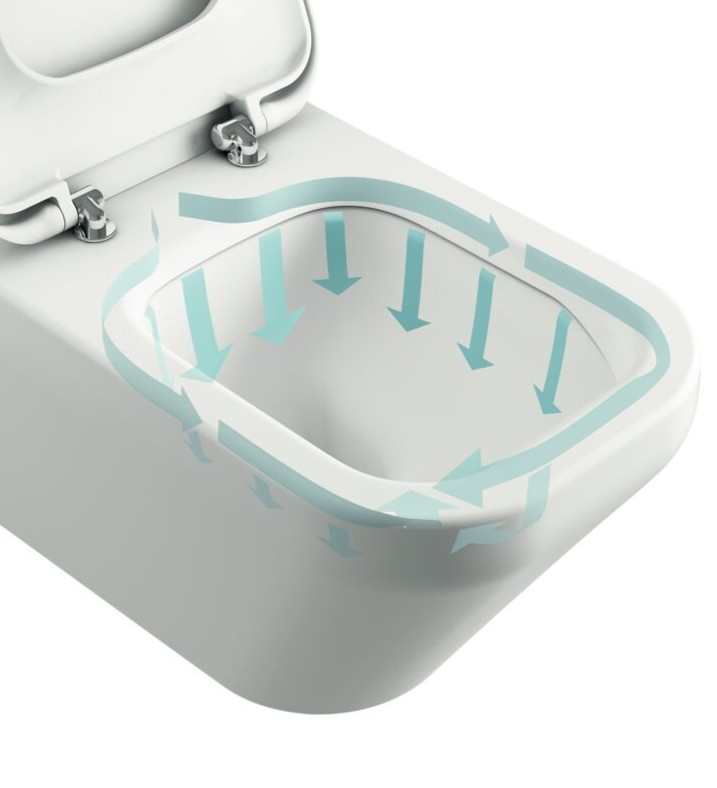

AquaBlade® technology — splash-free flushing
A patented micro-channel along the top of the bowl spreads water evenly across the whole interior, including the hard-to-reach rear section. Ideal Standard states up to 25% lower flush noise than traditional models, along with more efficient water use.

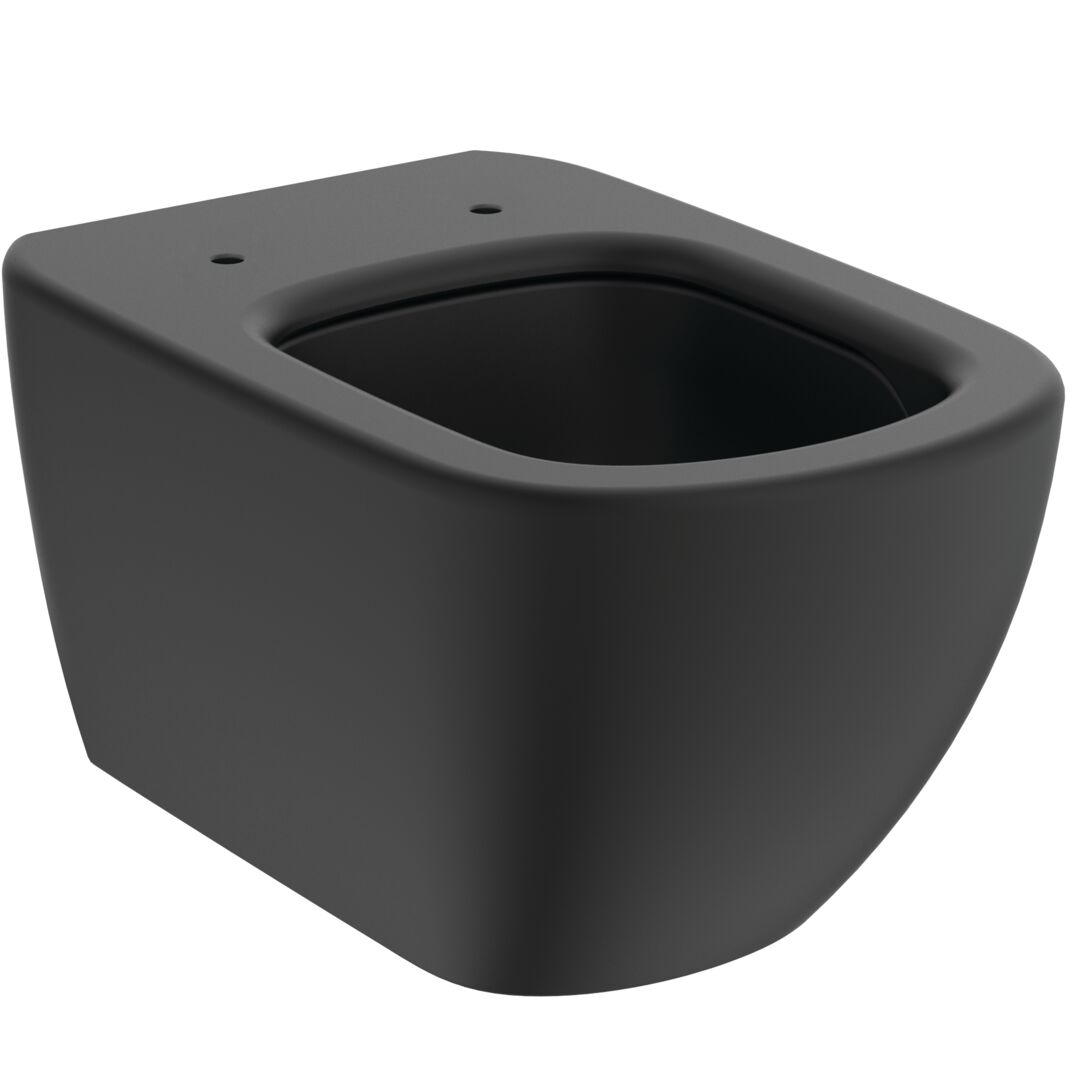

Tesi wall-hung pan with fully concealed connection

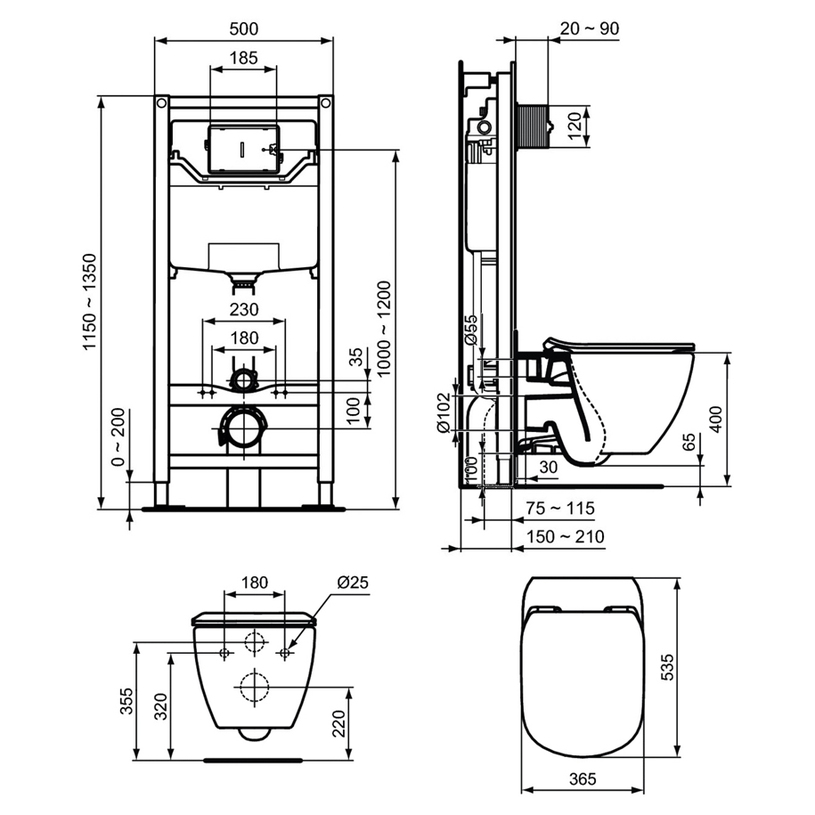

The pan is made of high-grade sanitary porcelain with no side openings and a fully concealed connection, leaving no visible joints where dirt can gather. Its compact 535 mm projection suits small bathrooms as well.

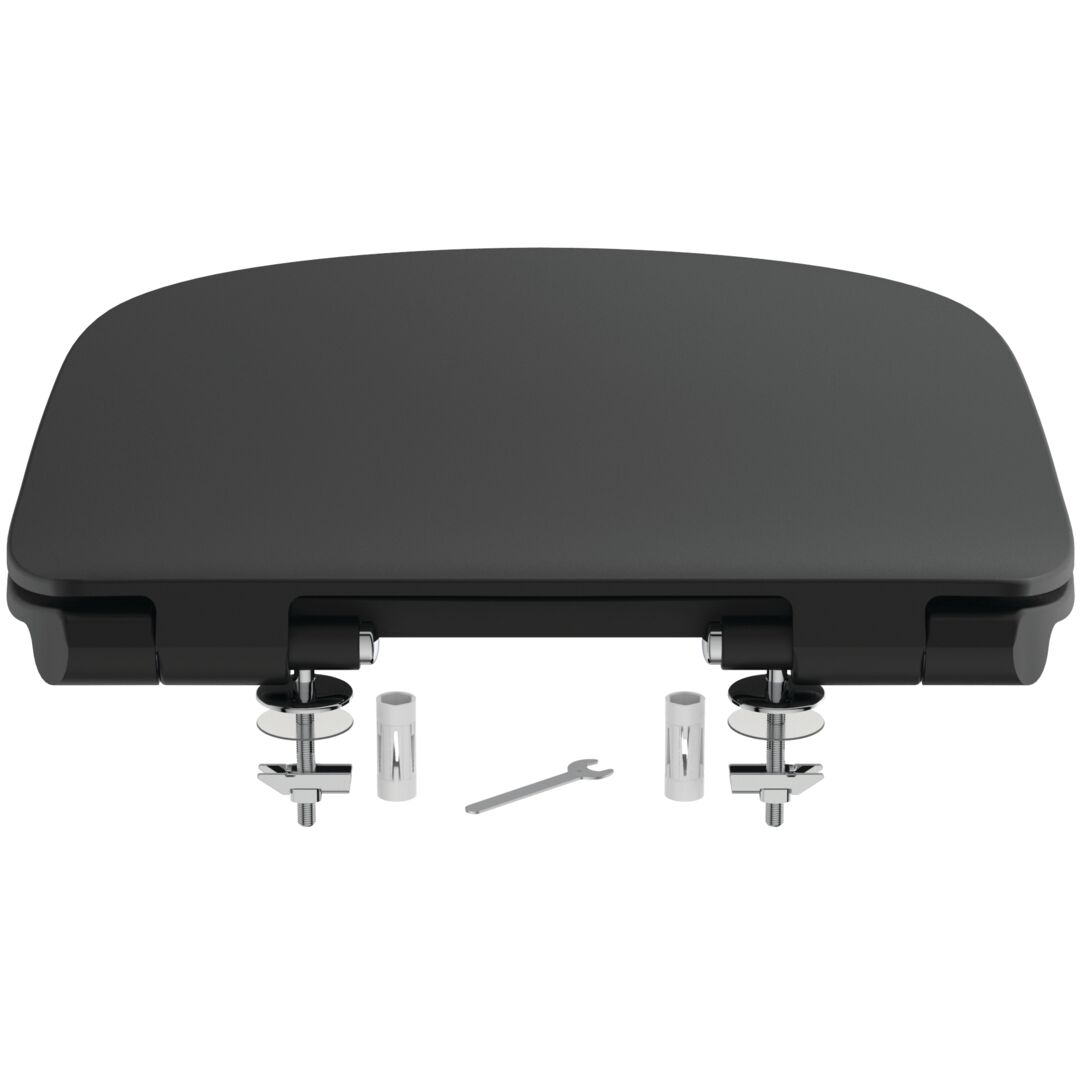

Ultra-thin seat with soft close and Easy Take Off
The Duroplast seat has a slim sandwich design, and the soft-close mechanism stops the lid from slamming. Easy Take Off hinges let the seat be removed by hand for thorough cleaning.
ProSys 120P frame, 120 mm deep, with EasyFix mounting
The steel frame is corrosion- and scratch-resistant and load-tested to 400 kg. The integrated EasyFix system and the swivelling outlet bend with adjustable depth give flexibility when connecting to the drain in tight sanitary rooms.
Oleas™ P1 pneumatic dual-flush plate
The plate works with the pneumatic kit for frames and cisterns with mechanical actuation. Two buttons split the flush into a reduced and a full volume from the 6 L cistern, while condensation insulation keeps the surrounding wall dry.
Specifications
General
Dimensions and weight
Materials
Features
In the box
| Brand | IDEALSTANDARD |
| MODEL | PROSYS TESI AQUABLADE |
| BUTTON OF THE FLUSHING SYSTEM | DOUBLE |
| CAPACITY OF THE FLUSHING SYST | 6.00 L |
| CONDENSATION INSULATION | Yes |
| PAYLOAD | 400.00 kg |
| ADDITIONAL INFORMATION | СЕДАЛКА С ПЛАВНО ЗАТВАРЯНЕ |
| WARRANTY SANITARY | 25 ГОДИНИ |
