К-Т СТРУКТУРА ЗА ВГРАЖДАНЕ CERSANIT ХРОМ БУТОН CERSANIT S4028-001

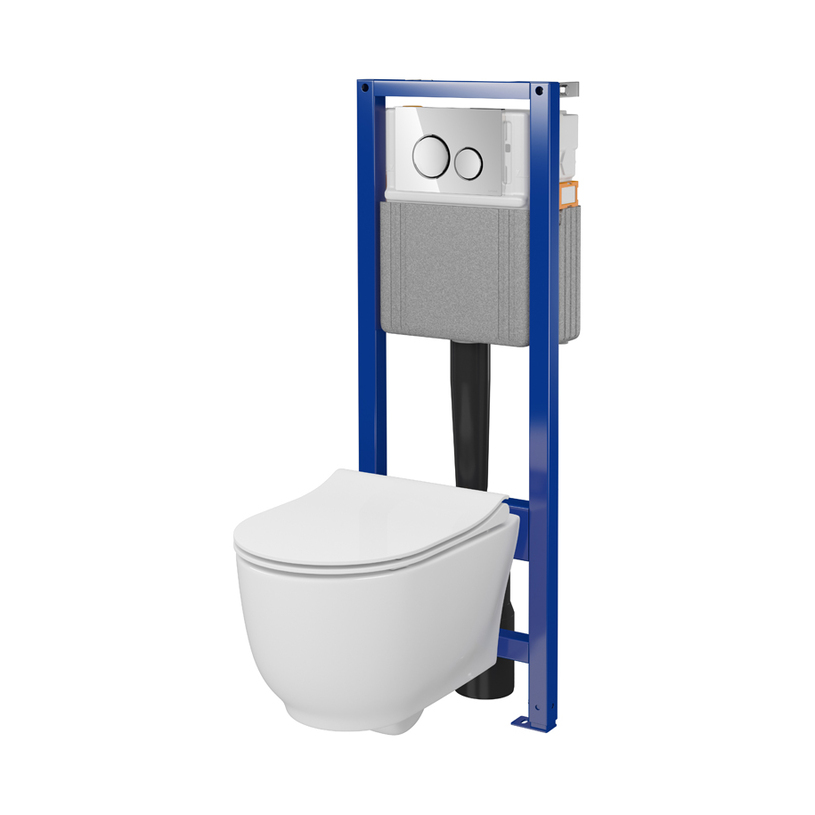

Cersanit SYSTEM 40 MECH S4028-001 Concealed WC Frame Set with Wall-Hung Bowl, Seat and LUNA Chrome Button
A complete wall-hung toilet package — frame, bowl, seat and flush plate in one box.
The Cersanit SET C696 (S4028-001) brings together the SYSTEM 40 MECH concealed frame, the MZ123 SLIM rimless CleanOn wall-hung bowl, a soft-close seat and the LUNA gloss-chrome flush plate. It is designed for drywall installation and ships with every connection and the mounting kit. Flush volume is factory-set to 3/5 l and can be switched to 2/4 l or 3/6 l.
Everything for a wall-hung toilet in one set
Components are pre-matched and factory-adjusted, so no manual flush setting is needed after installation. The box holds the frame, the CleanOn bowl, the soft-close seat and the gloss-chrome LUNA plate, plus the mounting kit and all connection parts.
Rimless CleanOn bowl for one-wipe cleaning
Water sweeps the entire inner surface because the traditional hidden rim, where deposits collect, is gone. The SLIM seat closes softly and lifts off at the press of a single button, while the bowl uses concealed fixings.
Narrow 41 cm frame for compact bathrooms
The load-bearing structure uses 40 × 40 mm powder-coated steel profiles, and the installation depth adjusts between 14.6 and 19.8 cm. Height is adjustable from 116.5 to 136.5 cm to match the finished floor level.
Average 2.5 l per flush, verified by Unified Water Label
The figure is calculated at three small flushes to one full flush and is confirmed by the Water Label certificate for the CERSANIT VORTEX system. Volume is set on the flush valve — 2/4 l, 3/5 l (factory setting) or 3/6 l — and the water stream dynamics can be adjusted as well.
One-person installation with braked feet and QUICK FIX brackets
The rotatable feet offer four mounting positions, the wall brackets are adjustable, and the outlet elbow can be directed sideways or downwards with four-stage depth adjustment. Colour-coded parts and the one-metre marking speed up setting the bowl hanging height.
Seamless cistern and silent filling
The cistern is blow-moulded as a single piece with no joints, while polystyrene insulation and a silent filling valve with plastic tip keep filling noise down. Internal parts are reached and adjusted through the inspection opening without special tools, and the FRESH SYSTEM basket takes a freshening tablet.
Specifications
General
In the box
Flushing system
Dimensions and weight
Materials
Compatibility
| Brand | CERSANIT |
| MODEL | S4028-001 |
| EAN | 5901771173106 |
