CONTOUR SAW EINHELL TC-SS 406 E

Code: 249705
EINHELL КОНТУРЕН ТРИОН TC-SS 406 E
EINHELL КОНТУРЕН ТРИОН TC-SS 406 E
EINHELL КОНТУРЕН ТРИОН TC-SS 406 E
EINHELL КОНТУРЕН ТРИОН TC-SS 406 E
EINHELL КОНТУРЕН ТРИОН TC-SS 406 E
EINHELL КОНТУРЕН ТРИОН TC-SS 406 E
In stock
Shipping:
Order now and pick up from: "" – Today
Free delivery
See credit plans
from4 .16 €
Price:  109.99 €
Quantity

Scroll saw

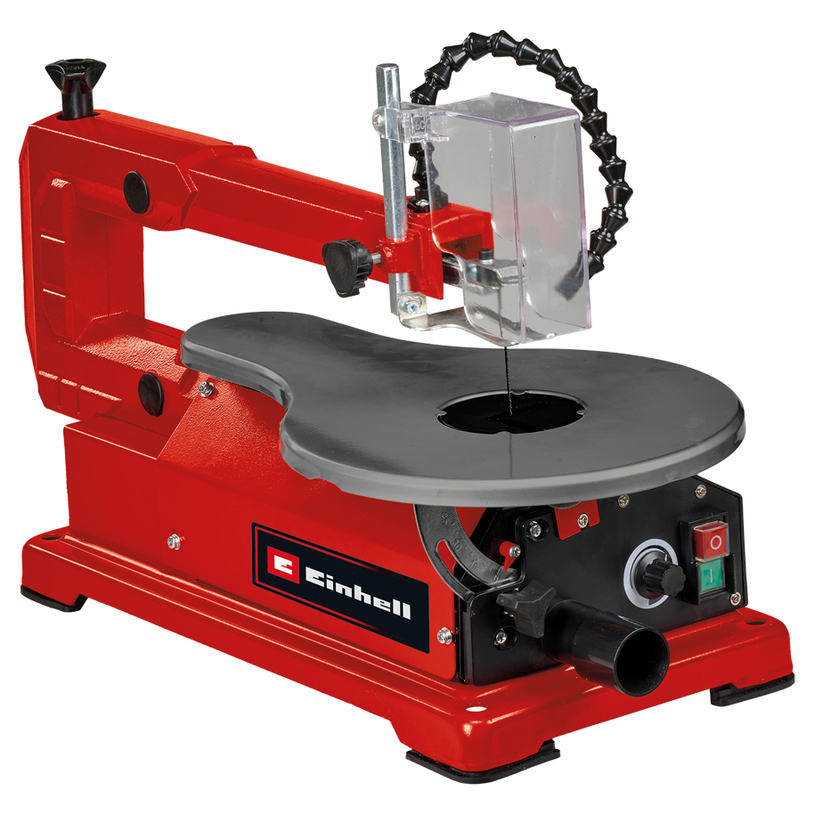

Einhell TC-SS 406 E Scroll Saw, 120 W, 406 mm Throat

Clean, intricate cuts in wood for model making, décor and fine joinery

Einhell TC-SS 406 E Scroll Saw, 120 W, 406 mm Throat

The Einhell TC-SS 406 E benchtop scroll saw is built for fine, intricate work: model parts, toys, lettering and decorative pieces. Variable stroke speed, a tilting steel table for bevel cuts, and a blower plus dust port keep each cut accurate and the bench tidy.

406 mm throat for larger panels

406 mm throat for larger panels

The distance from blade to rear arm lets you swing and steer wide boards without the frame getting in the way. Maximum cutting height is 50 mm at 90°. A 415 x 250 mm table supports the workpiece along its full length.

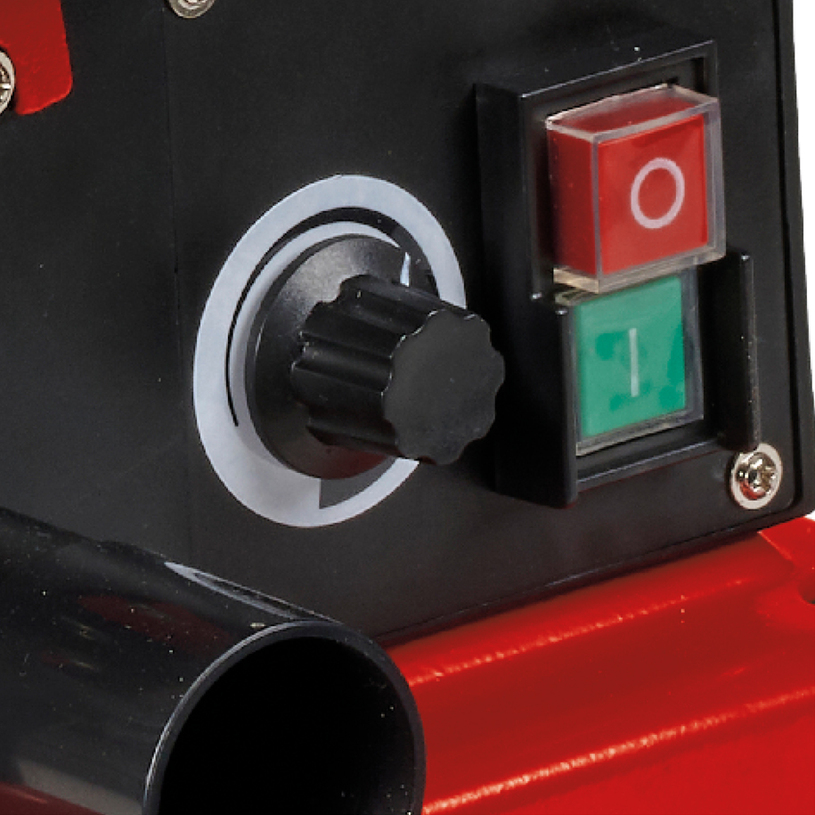

Variable speed to match the material

Variable speed to match the material

Electronic control varies the stroke rate from 400 to 1600 strokes per minute. Lower speeds give you control on tight curves and thin stock, while higher speeds move faster through straight cuts in thicker wood. Blade stroke is 14 mm.

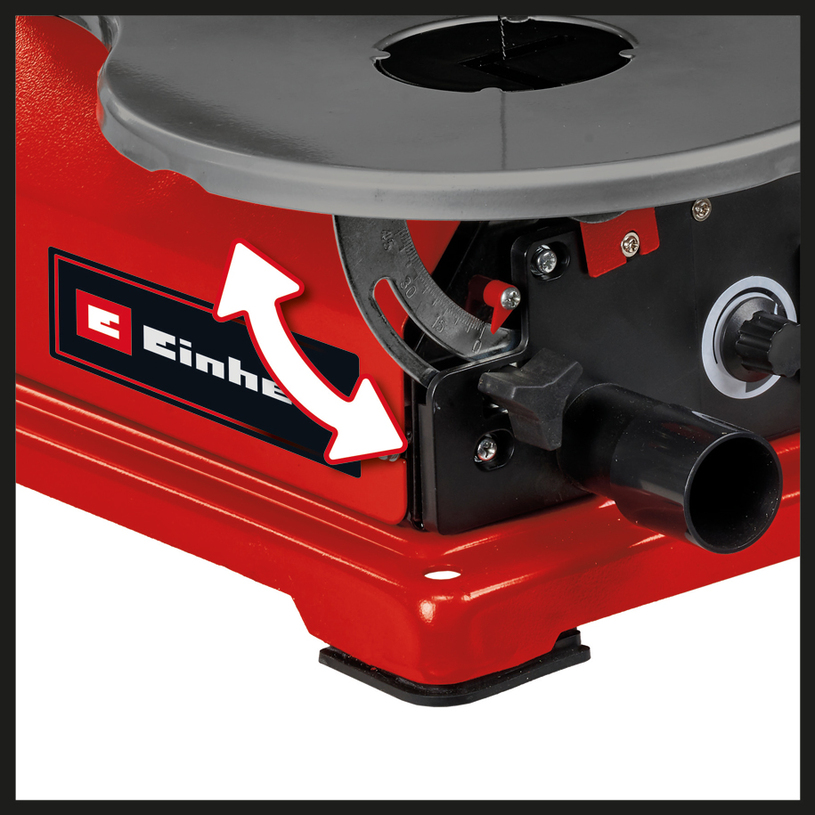

Steel table tilts to 47° for bevel cuts

Steel table tilts to 47° for bevel cuts

An angle scale under the table lets you set the bevel precisely. At 45° the saw handles stock up to 23 mm thick. The table also tilts 2° the other way.

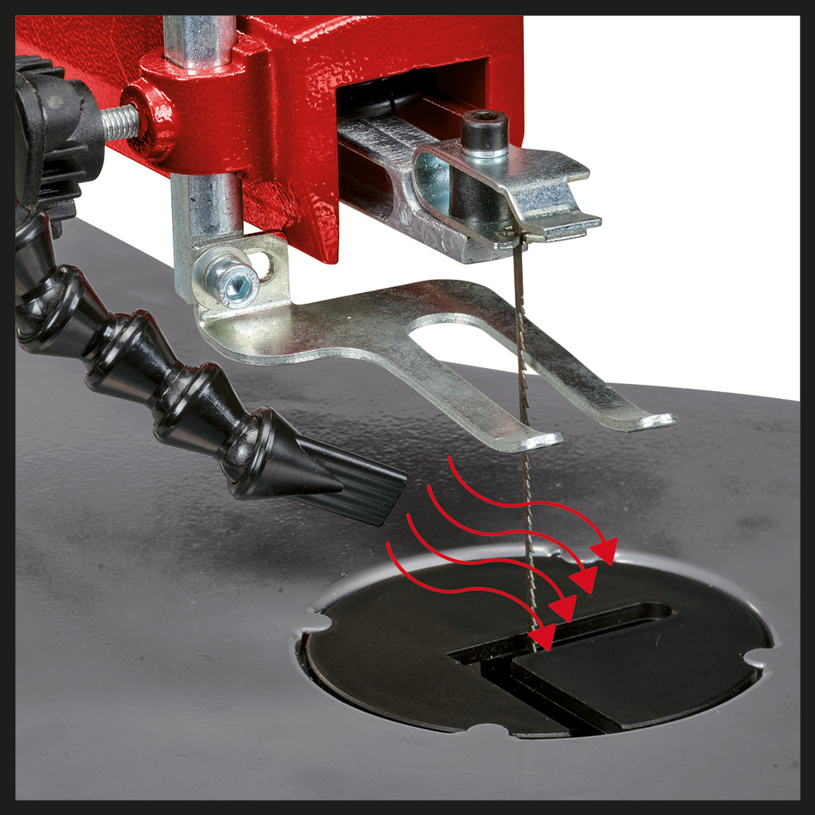

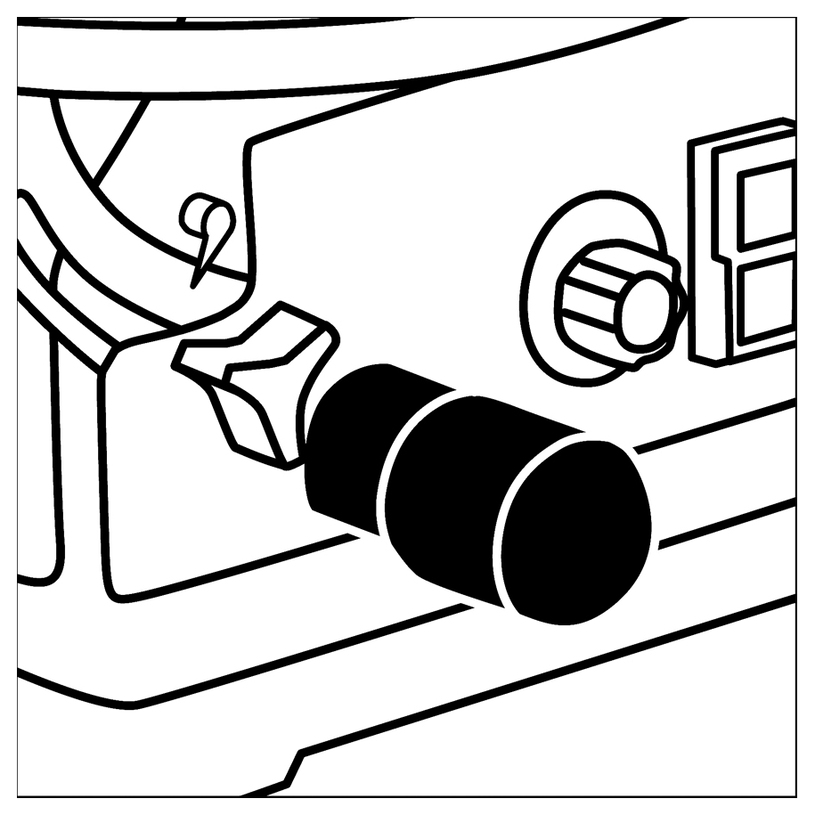

Blower and 36 mm dust port keep the cut line visible

Blower and 36 mm dust port keep the cut line visible

A built-in blower clears sawdust from the table, so you can always see the line you are following. The 36 mm extraction port connects to a wet and dry vacuum to keep the work area clean.

Quick blade changes with the clamping device

Quick blade changes with the clamping device

The clamping device makes blade swaps quick. The saw accepts 127 mm pin-end and round blades. Two blades come in the box, and Einhell offers 5-piece and 10-piece blade sets as optional accessories.

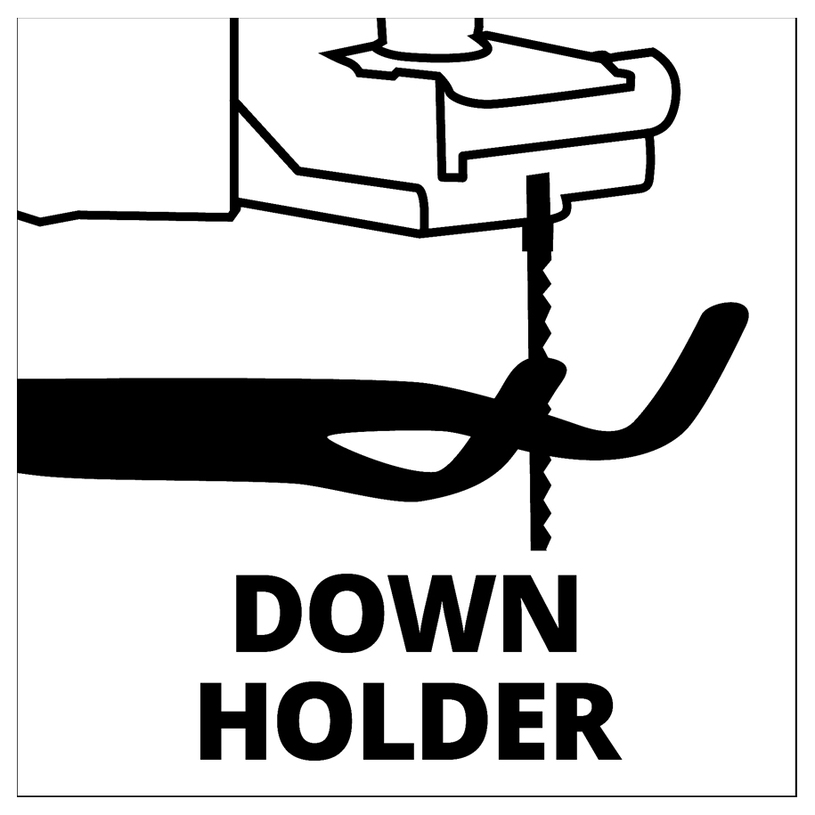

Workpiece hold-down and solid base

The hold-down presses the workpiece against the table, so the blade cannot lift it during the cut. A solid base and 9.3 kg of weight keep the saw steady. For a permanent setup, you can bolt it to a workbench.

Specifications

General

EinhellBrand
TC-SS 406 EModel
4309047Manufacturer item no.
4006825670660EAN

Power

230 V / 50 HzMains supply
70 WRated power
120 WMax. power (S6, 30%)

Cutting

400–1600 min⁻¹Stroke rate
14 mmStroke length
127 mmBlade length
Pin-end and roundBlade type
50 mmMax. cutting height at 90°
23 mmMax. cutting height at 45°
406 mmThroat depth
-2° to 47°Table tilt

Dimensions and weight

415 x 250 mmTable size
36 mmDust port diameter
9.3 kgProduct weight
656 x 330 x 385 mmPackaging dimensions
11.6 kgGross weight

In the box

2 pcsBlades included

Warranty

24 monthsWarranty
BrandEINHELL
MODEL
TC-SS 406 E
WARRANTY
24 MONTHS
EAN4006825670660
No documents were found for this product
