Instantaneous water heater

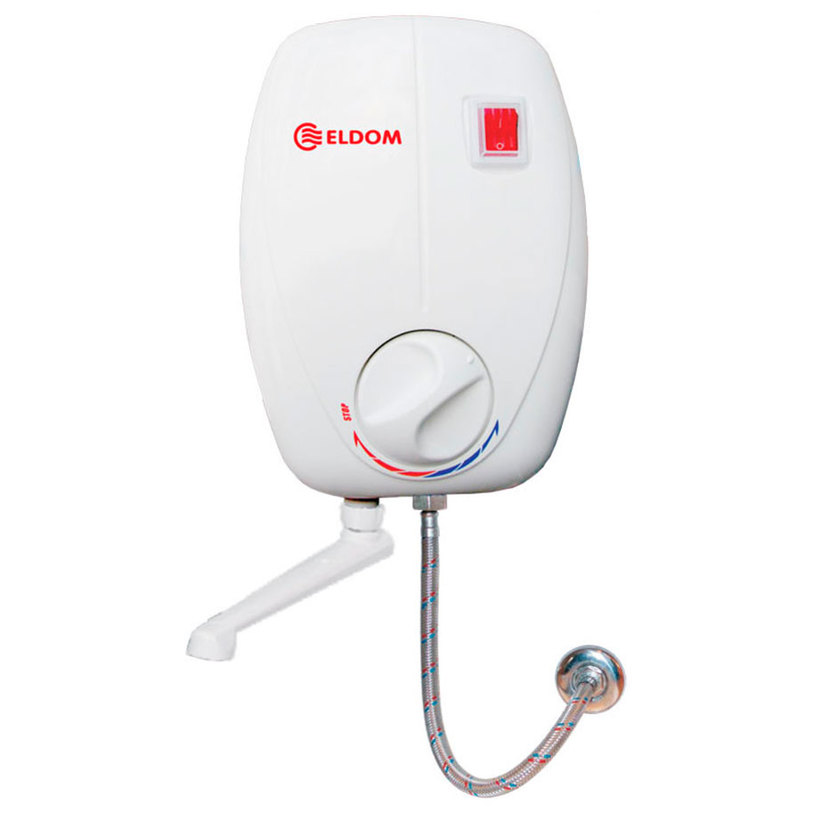

ELDOM B4 72485 Instantaneous Water Heater for Sink, 3.5 kW, Non-Pressurised
Hot water the moment you open the tap, with no tank to heat up first.
The ELDOM B4 72485 instantaneous water heater warms water as it flows, right where you need it at the kitchen sink or washbasin. It is a non-pressurised (free-outlet) model with a mechanical thermostat and a built-in swivel spout with aerator, supplied fully assembled with cable and Schuko plug.
Hot water without a tank or waiting time
Water is heated only while it runs, so no energy is wasted keeping a tank warm. The 3.5 kW output covers washing up and hand washing in a kitchen or a secondary bathroom.
Flow regulator and swivel spout with aerator
The jet strength is adjustable, so a lower flow gives you a hotter stream. The swivel spout reaches across the whole sink, and the illuminated switch shows when the heater is running.
Overheat and pressure-drop protection
An external capillary thermostat cuts the element off if the set temperature is exceeded. If mains pressure drops the elements will not switch on, while a built-in diaphragm valve relieves any excess pressure.
Compact body with IP24 protection
At 1.7 kg and under 13 cm deep, the unit fits into tight spots above or below the sink. IP24 rating covers splashes and humidity in kitchens and bathrooms, and the materials are approved for both sanitary and drinking water.
Specifications
General
Electric instantaneous water heaterType
Free outlet (non-pressurised)System type
Mechanical, external capillaryThermostat
IP24Ingress protection
Power and supply
3.5 kWRated power
230 V~Supply voltage
Single-phaseElectrical supply
1.5 mm²Min. supply cable cross-section
AEnergy class
XXSLoad profile
480 kWhAnnual energy consumption
Dimensions and weight
28.90 cmHeight
20.00 cmWidth
12.80 cmDepth
1.7 kgWeight
In the box
Swivel spout with aerator, cable and Schuko plugIn the box
