БЕЗКОНТАКТЕН ФАЗОМЕР 150 MM LASERLINER AC-TIVE PEN
- TYPE : ФАЗОМЕР
- SIZE : 150 MM
- ISOLATED : ДО 1000 V
Laserliner ActivePen Non-Contact Voltage Tester, 150 mm, CAT III 600 V
A bright LED signals live wiring without ever touching a conductor.

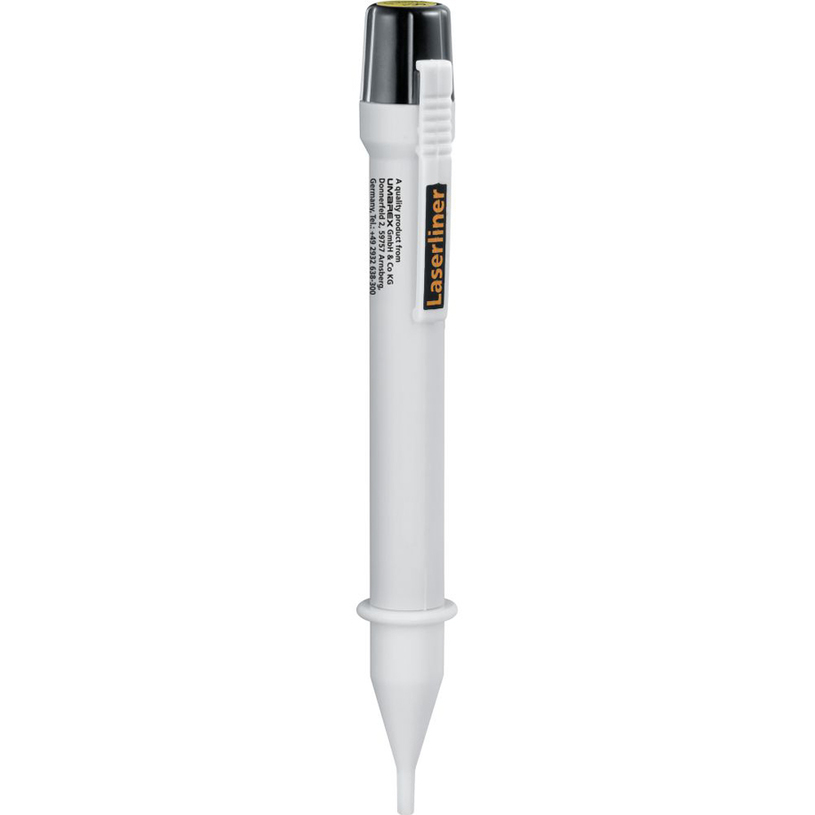

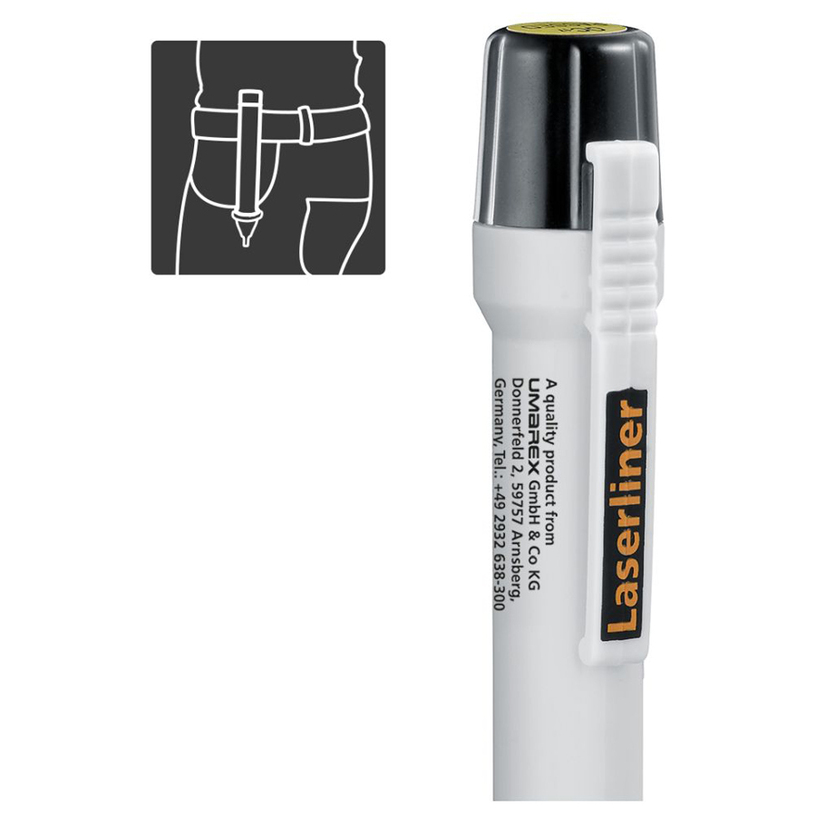

The Laserliner ActivePen is a non-contact voltage tester that checks cables, sockets, bulb holders and fuses for live AC without touching a conductor. It identifies L and N polarity and traces breaks in wires and cables. The pen-format housing with pocket clip weighs just 37 g including batteries.
Live-line detection from 200 to 600 V AC
The tester registers the electrostatic fields generated by alternating voltage across the 50 to 60 Hz band. One instrument covers checks throughout a building installation, from sockets and bulb holders to the fuse board.
L and N polarity without removing covers
The single-pole test shows which terminal is live at sockets and terminal blocks. A clearly visible LED signals detected voltage, readable even in dim shafts and recesses.
Tracing breaks in wires and cables
Running the tip along a cable shows how far the voltage travels and where the break sits. The operating range of -10 °C to +55 °C covers unheated sites in winter as well.
CAT III 600 V for building installations
The overvoltage category permits measurements on a building's distribution circuits. Power comes from two AAA batteries, supplied in the box.
Specifications
General
Measurement
Safety
Power
Operating conditions
Dimensions and weight
In the box
Warranty
| Brand | LASERLINER |
| MODEL | AC-TIVE PEN |
| TYPE | ФАЗОМЕР |
| SIZE | 150 MM |
| ISOLATED | ДО 1000 V |
| ADDITIONAL INFORMATION | CAT III 600V, 2ХААА |
| WARRANTY | 48 MONTHS |
| EAN | 4021563690039 |
