HAIER ES10V-SQM2
- HEIGHT : 36.00 см
- DIAMETER SM : 36.0 см
- TYPE : МОНТАЖ ПОД МИВКА
- TANK TYPE : TITANIUM
- HEATER TYPE : STEEL AND MOLYBDENUM
- PROTECTION : АНОДНА
- WARRANTY : 60 MONTHS

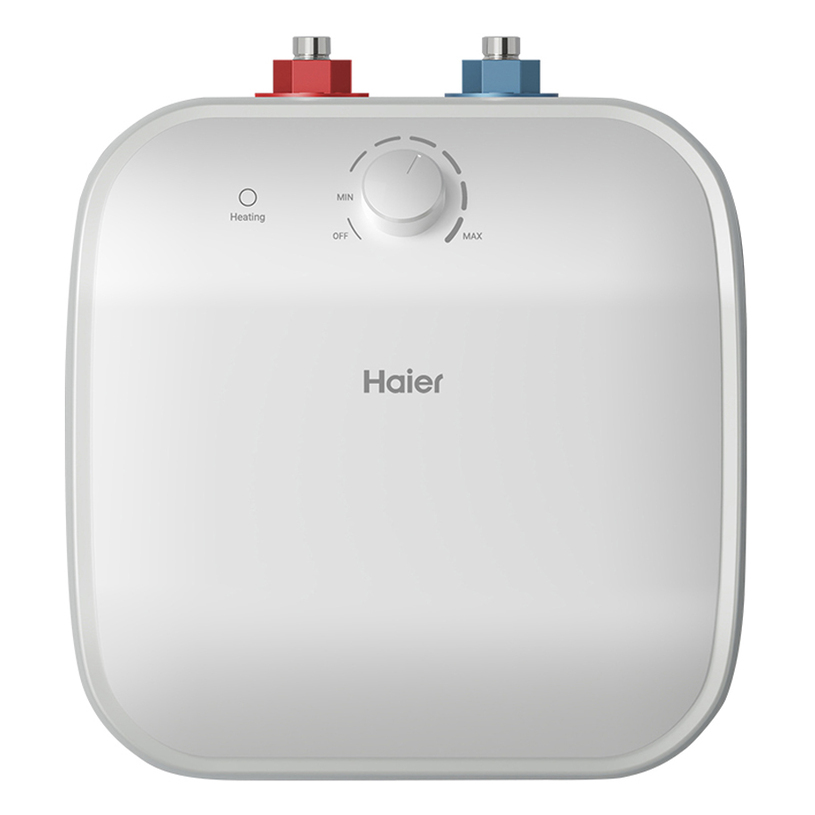

HAIER ES10V-SQM2 Under-Sink Water Heater, 10 L, 1500 W, Energy Class A
Titanium-coated tank with anode protection and a built-in anode tester.
The HAIER ES10V-SQM2 is a 10-litre under-sink electric water heater with a mechanical thermostat and energy class A. Its compact body fits inside a vanity or kitchen cabinet and delivers hot water right at the tap, with no long wait for the pipes to warm up.
Titanium-coated inner tank
The inner surface is treated against corrosion and hard-water deposits, while the sacrificial anode takes the electrochemical load. An anode tester on the body shows when the anode needs replacing, without dismantling the unit.
310S steel heating element with molybdenum
The molybdenum alloy coating resists limescale and corrosion far better than a standard element. A 1500 W output brings the 10 litres up to a 75 °C rated temperature for dishwashing and handwashing.
Energy class A, 527 kWh per year
The declared load profile is XXS, sized for a single draw-off point. Thick insulation holds the heat between uses and keeps the element from cycling on so often.
Compact body for under-sink installation
Connections are on the underside, so the heater sits close to the trap inside the cabinet. IPX4 protection covers splashing in wet rooms, and the mechanical thermostat is set with a single turn of the knob.
Specifications
General
Power and supply
Operating data
Materials and protection
Dimensions and weight
| Brand | HAIER |
| MODEL | ES10V-SQM2 |
| HEIGHT | 36.00 см |
| DIAMETER SM | 36.0 см |
| TYPE | МОНТАЖ ПОД МИВКА |
| TANK TYPE | TITANIUM |
| HEATER TYPE | STEEL AND MOLYBDENUM |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 1.500 |
| ENERGY CLASS | A |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| ANNUAL ENERGY CONSUMPTION | 527 |
| PROTECTION | АНОДНА |
| WARRANTY | 60 MONTHS |
| EAN | 6941467348066 |
