HAIER ES10V-SQM1
- HEIGHT : 36.00 см
- DIAMETER SM : 36.0 см
- TYPE : МОНТАЖ НАД МИВКА
- TANK TYPE : TITANIUM
- HEATER TYPE : STEEL AND MOLYBDENUM
- PROTECTION : АНОДНА
- WARRANTY : 60 MONTHS

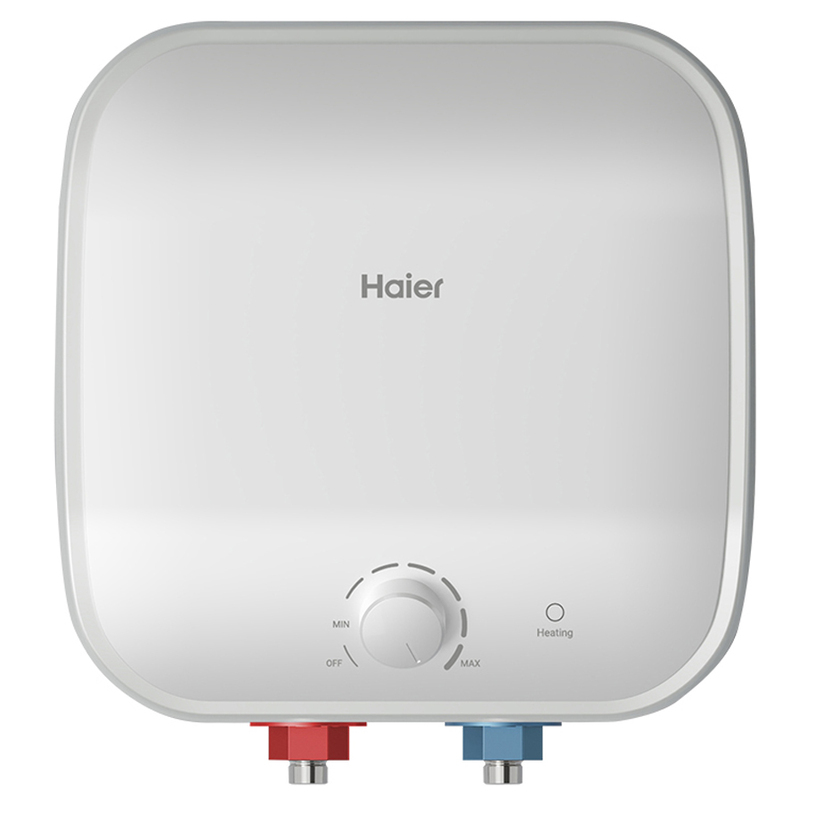

HAIER ES10V-SQM1 Electric Water Heater, 10 L, Over-Sink, 1500 W
A compact 36 cm body that fits above the sink in a kitchenette or small bathroom.
The HAIER ES10V-SQM1 is a 10-litre electric water heater designed for over-sink installation. Its tank carries a titanium coating and the heating element is a 310S steel and molybdenum alloy, while a mechanical thermostat and an anode with a condition tester keep operation simple and protected.
Titanium-coated tank for long service life
The single-weld-line construction and the protective coating limit corrosion during daily heating cycles. A built-in anode tester shows when the sacrificial anode needs replacing, so maintenance happens on time.
310S steel and molybdenum heating element
According to Haier, the molybdenum alloy coating offers four times the corrosion resistance of a standard element. Water can be heated to 75 °C and the temperature is set with a simple rotary control.
Energy class A on the XXS load profile
Energy efficiency is rated at 36% with a declared annual consumption of 508 kWh. The V40 mixed-water figure is 10.8 litres, enough for washing up and hand washing at a kitchen sink.
IPX4 protection and Shock Proof safety
Splash protection allows the unit to sit directly above a sink or basin. Haier's patented Shock Proof system, recognised in the IEC standard, acts as a resistor that reduces the intensity of any transmitted current.
Specifications
Key facts
Energy and efficiency
Power and supply
Dimensions and weight
Materials and protection
| Brand | HAIER |
| MODEL | ES10V-SQM1 |
| HEIGHT | 36.00 см |
| DIAMETER SM | 36.0 см |
| TYPE | МОНТАЖ НАД МИВКА |
| TANK TYPE | TITANIUM |
| HEATER TYPE | STEEL AND MOLYBDENUM |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 1.500 |
| ENERGY CLASS | A |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| ANNUAL ENERGY CONSUMPTION | 508 |
| PROTECTION | АНОДНА |
| WARRANTY | 60 MONTHS |
| EAN | 6941467348059 |
