БУФЕРЕН СЪД TESY EV 50 40
- HEIGHT : 86.50 см
- DIAMETER SM : 40.0 см
- TYPE : ВЕРТИКАЛЕН
- TANK TYPE : GLAZED
- WARRANTY : 60 MONTHS

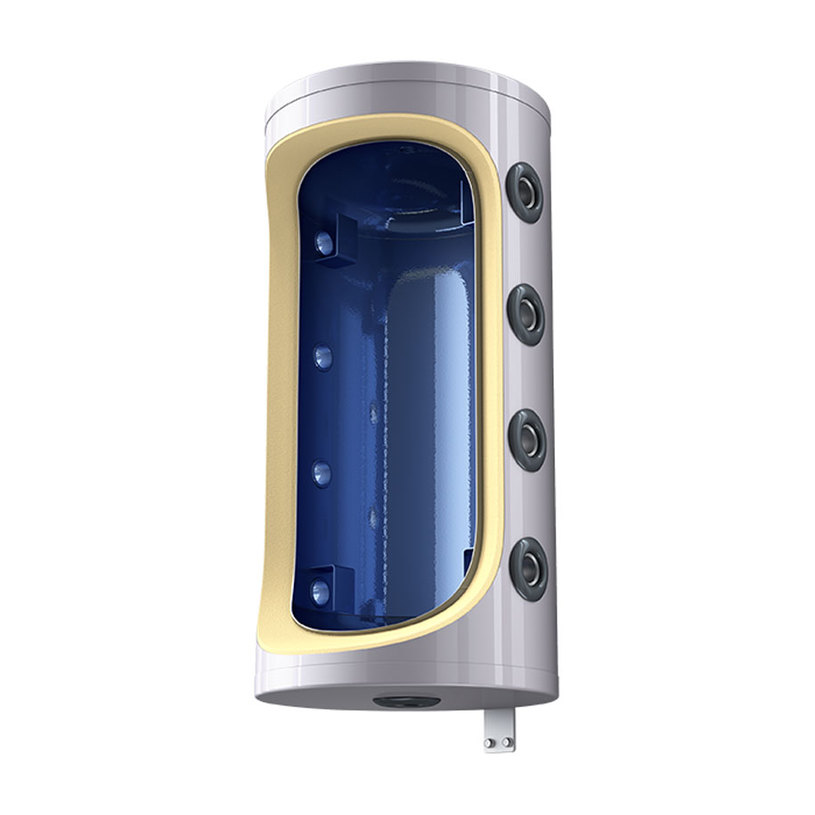

TESY EV 50 40 Buffer Tank, 51 l, Enamelled, Vertical
50 mm insulation keeps heat in at just 38 W of losses, with a 6 bar working pressure rating.
The TESY EV 50 40 is a 51 l enamelled buffer tank engineered for heat pump systems. It comes without an internal heat exchanger and its vertical body is also suitable for wall-hung mounting. With a 400 mm diameter and 86.50 cm height, it slots into narrow plant rooms and utility spaces.
Enamelled tank body built to last
The steel body is coated with vitreous enamel that shields it from corrosion in permanent contact with water. Maximum operating temperature is 95 °C and working pressure reaches 6 bar.
Heat losses of 38 W at ΔT 45K
A 50 mm insulation layer earns the tank energy class B on its ErP label. Heat gathered from the heat pump stays in the volume between compressor cycles.
No heat exchanger, for direct loop integration
The series stores hot or chilled water directly in a heat pump circuit. The vertical shell can be wall-hung, keeping floor space in the plant room free.
Specifications
Main
Materials
Energy and performance
Dimensions and weight
| Brand | TESY |
| MODEL | EV 50 40 |
| HEIGHT | 86.50 см |
| DIAMETER SM | 40.0 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | GLAZED |
| ENERGY CLASS | B |
| WARRANTY | 60 MONTHS |
| EAN | 3800879004386 |
