БОЙЛЕР TESY GCH 503520 B12 TSR 50 L
- CAPACITY : 50 L
- TANK CAPACITY : 50.0 L
- HEIGHT : 80.00 см
- DIAMETER SM : 35.0 см
- TYPE : ХОРИЗОНТАЛЕН
- TANK TYPE : GLASS-CERAMIC
- HEATER TYPE : COPPER
- PROTECTION : АНОДНА
- WARRANTY : 60 MONTHS

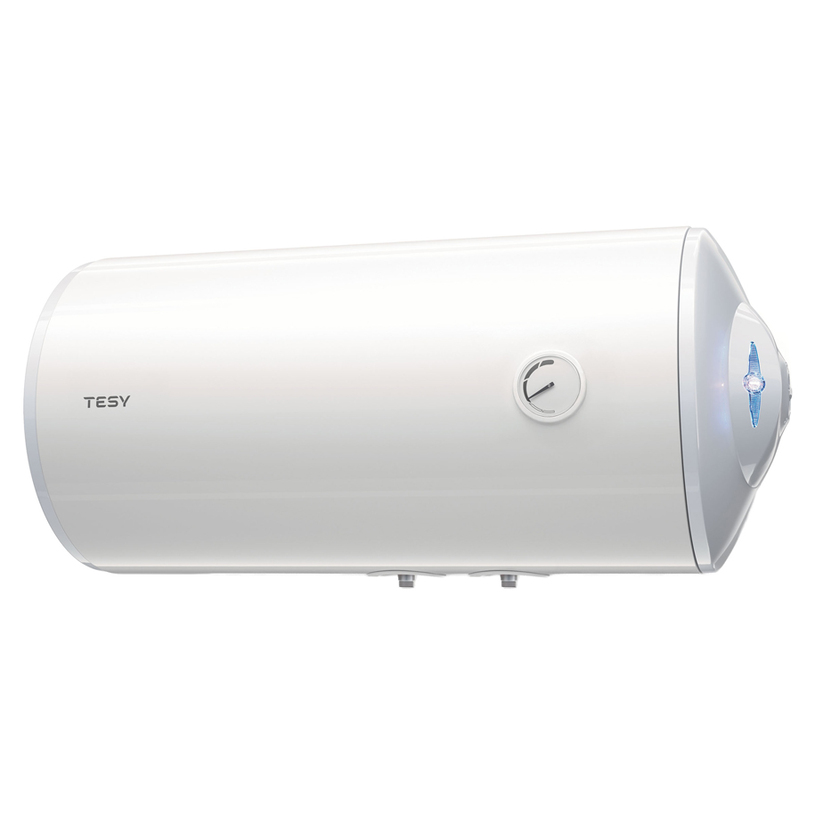

TESY GCH 503520 B12 TSR Electric Water Heater, 50 L, Horizontal, 2 kW
Horizontal wall mounting above a door or under the ceiling, where vertical space is taken.
The TESY GCH 503520 B12 TSR is a horizontal electric water heater with a real capacity of 50 L and a 2 kW copper heating element. The tank is glass-ceramic lined with anode protection, and the temperature is set with a mechanical thermostat. At 35 cm in diameter, it fits narrow recesses and mounts above bathroom doors.

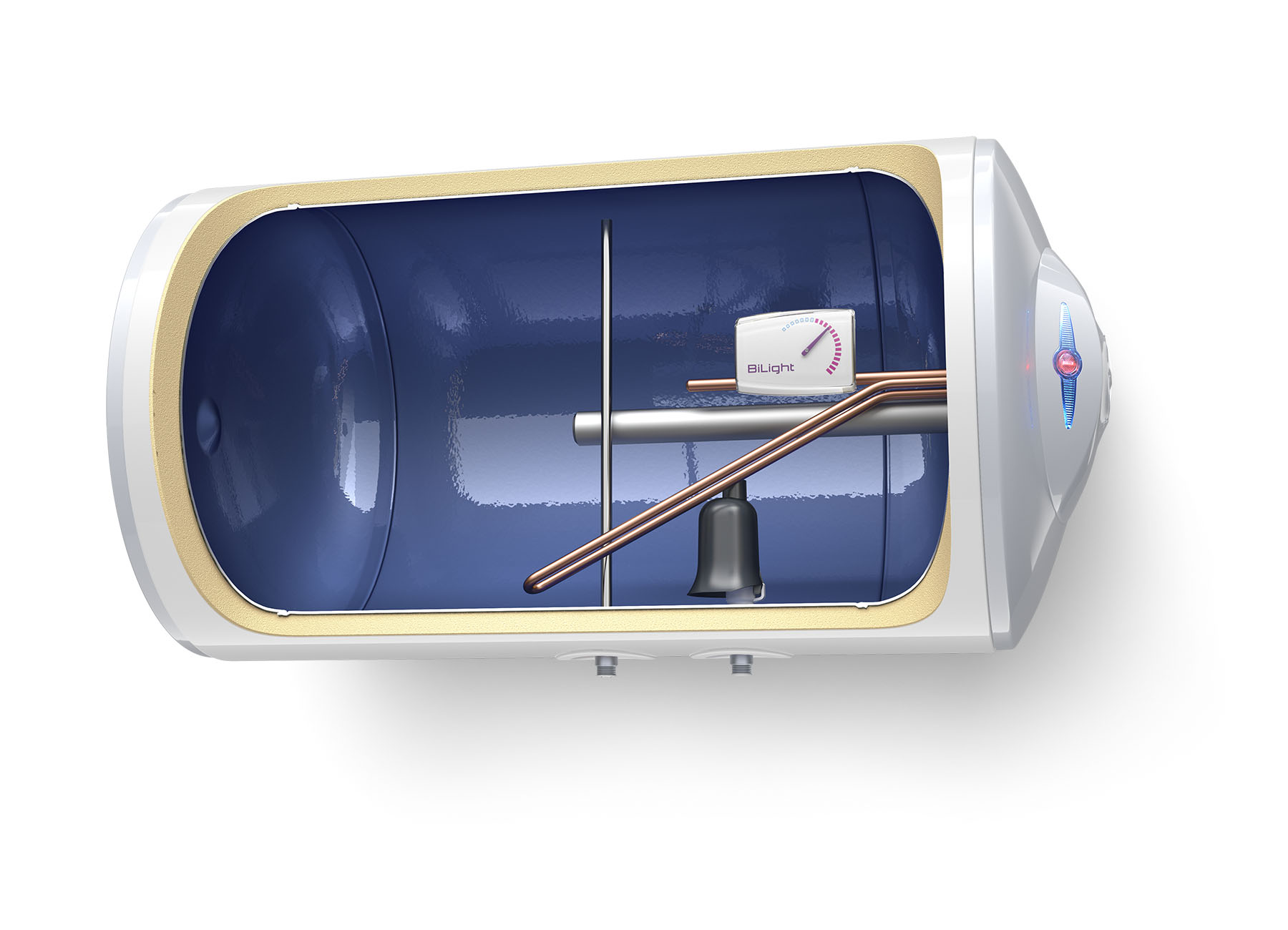

Glass-ceramic tank with anode protection
The lining withstands the high temperatures of domestic hot water and limits scale build-up on the tank walls. The magnesium anode takes on corrosion instead of the steel body and is replaced during routine servicing.
2 kW copper heating element, up to 60 °C
Copper transfers heat quickly and stays cleaner of deposits than standard steel elements. According to the manufacturer's data for the BiLight Slim 50 H series, water reaches 60 °C in 1 hour and 18 minutes from 15 °C.
Mechanical thermostat with rotary control
Temperature is set smoothly with a rotary knob, with no electronics or display to maintain. A built-in thermal cut-out disconnects the power in case of overheating.
50 L of hot water for bathroom and kitchen
The capacity suits one or two people and covers a shower plus dishwashing without waiting in between. Power supply is single-phase 230 V, connecting to a standard household circuit.
Specifications
Main
Dimensions
Power and supply
Materials
| Brand | TESY |
| MODEL | GCH 503520 B12 TSR |
| CAPACITY | 50 L |
| TANK CAPACITY | 50.0 L |
| HEIGHT | 80.00 см |
| DIAMETER SM | 35.0 см |
| TYPE | ХОРИЗОНТАЛЕН |
| TANK TYPE | GLASS-CERAMIC |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 2 KW |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| ANODE TESTER | No |
| ANNUAL ENERGY CONSUMPTION | 1437 kWh |
| HEAT EXCHANGER | No |
| PROTECTION | АНОДНА |
| WARRANTY | 60 MONTHS |
| EAN | 3800879115143 |
