BOILER TESY CTV 503820 B11 TSR 50 L
- CAPACITY : 50 L
- HEIGHT : 76.80 см
- DIAMETER SM : 38.6 см
- TYPE : ВЕРТИКАЛЕН
- NOMINAL POWER KW : 2
- CAPACITY : 50 L
- TANK CAPACITY : 45.0 L
- HEIGHT : 76.80 см
- DIAMETER SM : 38.6 см
- TYPE : ВЕРТИКАЛЕН
- TANK TYPE : GLASS-CERAMIC
- HEATER TYPE : COPPER
- WARRANTY : 36 MONTHS

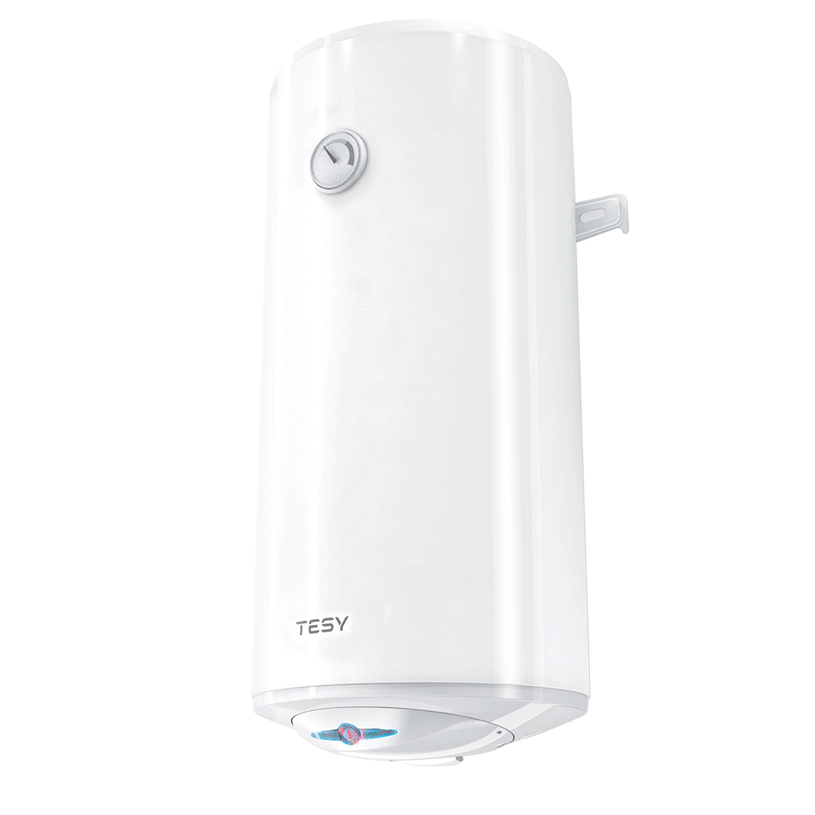

TESY CTV 503820 B11 TSR SimpatEco Slim Water Heater, 50 L, Vertical, 2000 W
A slim 38.6 cm body that fits even into a tight bathroom niche.
The TESY CTV 503820 B11 TSR from the SimpatEco Slim range is a vertical 50 L electric water heater with 45 L of usable capacity. A copper heating element and a mechanical thermostat keep temperature control simple, while the glass-ceramic tank runs on a standard single-phase household supply.
Slim body for narrow spaces
At 38.6 cm in diameter and 76.80 cm tall, the heater mounts above a washing machine, inside a niche or behind a bathroom door. Vertical installation keeps the connections at the top, so tying into existing plumbing stays straightforward.
Heats to 60 °C in 1 hour 18 minutes
The 2000 W copper element brings the full tank from 15 °C to 60 °C. A mechanical thermostat sets the temperature with a single turn, and the on/off switch cuts power completely when the heater is not in use.
PISTON Effect: up to 15% more hot water
The technology slows the incoming cold water and limits mixing with the heated volume. On the M tapping profile the unit delivers 70 L of water at 40 °C.
Crystal Tech glass ceramic and plasma-welded tank
The Crystal Tech coating shields the inner wall from corrosion in hard-water areas. The tank seams are plasma-welded, and these joints carry the highest load under working pressure.
INSUTECH insulation and frost protection
TESY's INSUTECH insulation limits standby heat losses between heating cycles. Frost protection maintains a minimum temperature, which matters in holiday homes and unheated rooms in winter. The BiLight indicator shows at a glance whether the unit is heating or on standby.
Specifications
Main
Materials
Controls
Power and supply
Dimensions and weight
| Brand | TESY |
| MODEL | CTV 503820 B11 TSR |
| CAPACITY | 50 L |
| TANK CAPACITY | 45.0 L |
| HEIGHT | 76.80 см |
| DIAMETER SM | 38.6 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | GLASS-CERAMIC |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | МЕХАНИЧЕН |
| ENERGY CLASS | C |
| ANNUAL ENERGY CONSUMPTION | 1428 |
| HEAT EXCHANGER | No |
| WARRANTY | 36 MONTHS |
| NOMINAL POWER KW | 2 |
| MODEL | CTV 503820 B11 TSR |
| CAPACITY | 50 L |
| TANK CAPACITY | 45.0 L |
| HEIGHT | 76.80 см |
| DIAMETER SM | 38.6 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | GLASS-CERAMIC |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 2 |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| ANNUAL ENERGY CONSUMPTION | 1428 |
| HEAT EXCHANGER | No |
| WARRANTY | 36 MONTHS |
| EAN | 3800879131990 |
