БОЙЛЕР ELDOM WVF08039FSL 80 L
- CAPACITY : 80 L
- TANK CAPACITY : 73.0 L
- HEIGHT : 112.50 см
- DIAMETER SM : 38.7 см
- TYPE : ВЕРТИКАЛЕН
- TANK TYPE : GLAZED
- HEATER TYPE : COPPER
- HEAT EXCHANGER
- WARRANTY : 60 MONTHS

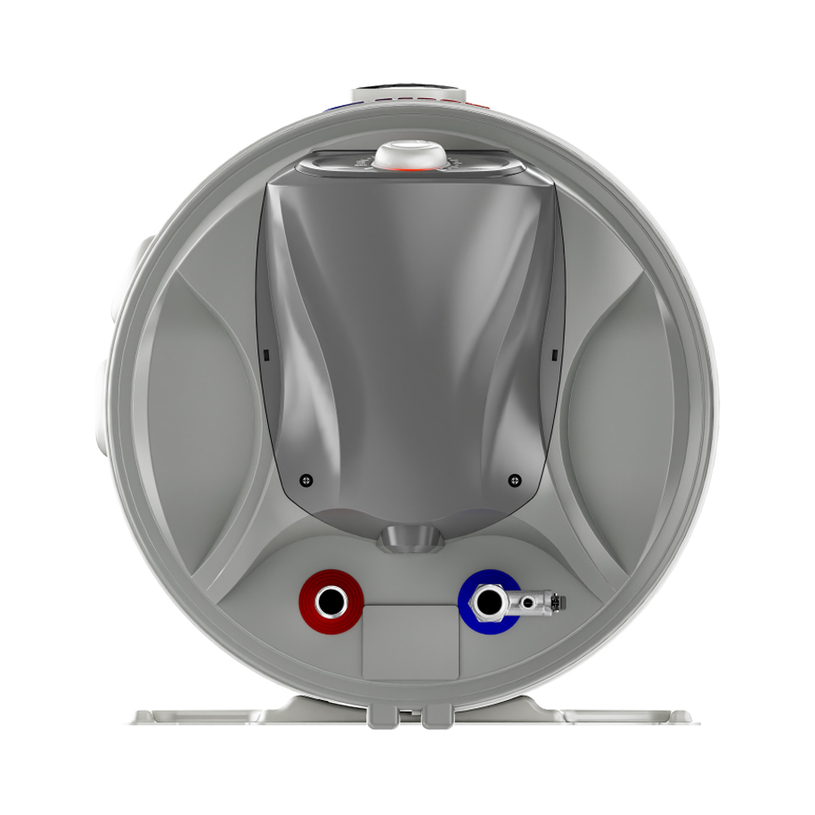

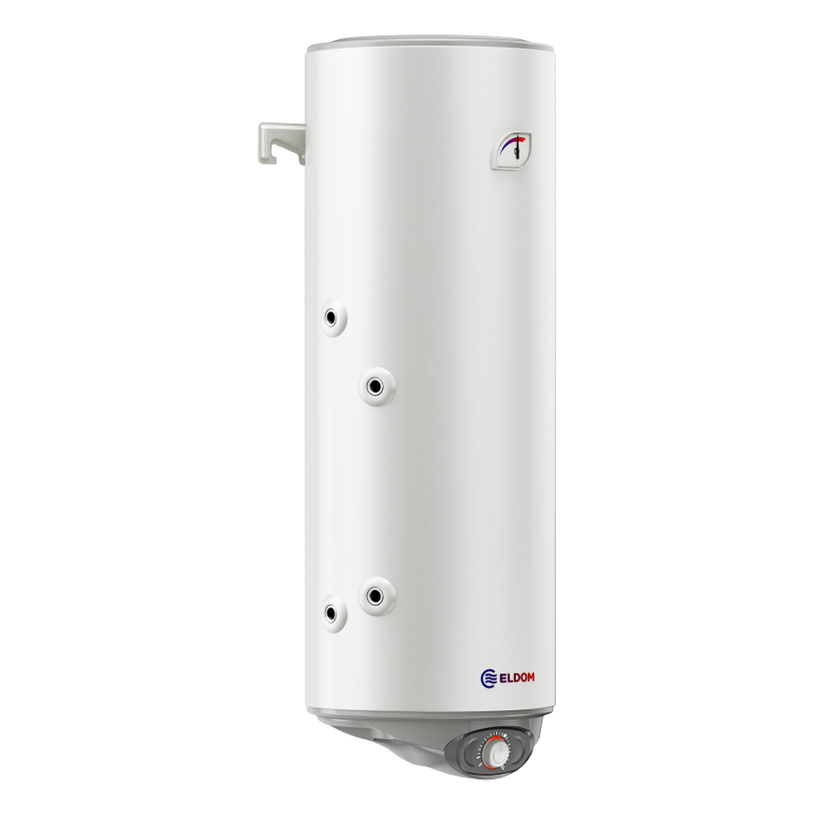

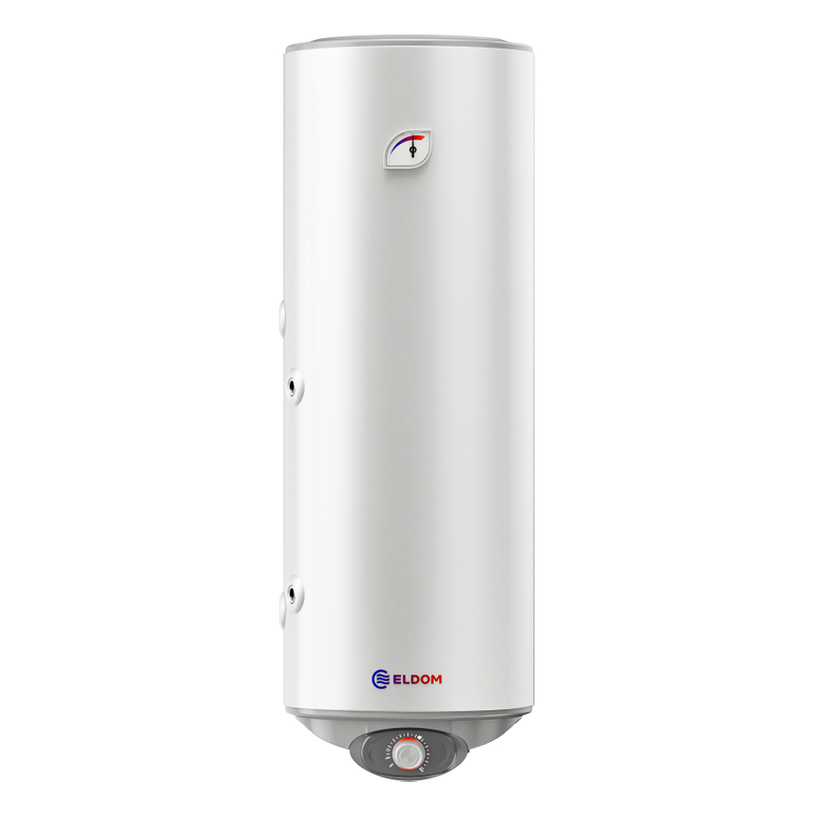

ELDOM WVF08039FSL 80 L Water Heater with Left-Side Coil, Enamelled, 3 kW
A slim 38.7 cm body that fits narrow bathroom niches and service shafts.
The ELDOM WVF08039FSL is a vertical indirectly heated water heater from the ELDOM Green Line series, rated at 80 L with 73 L of usable capacity. Water is heated through a coil fed by a solar collector or heat pump, with the electric element serving as the back-up source. Coil connections are on the left side and control is mechanical.
Low-mounted 0.49 m² coil for solar or heat-pump input
The heat exchanger sits in the lower part of the tank, where the water is coldest, so it captures as much energy as possible from the alternative source. Sensor sleeves accept thermal probes, letting the heating system time the charging cycles precisely. Both the plumbing and the coil use 1/2" connections.
SHIELD zirconium enamel plus two magnesium anodes
The tank is coated with a specially formulated zirconium enamel that withstands daily temperature cycling. Two magnesium anodes protect the entire internal volume against corrosion, including the area around the flange. The copper immersion element is engineered specifically for this model.
HFO Closed-Cells insulation over 33 mm thick, 44 W standby loss
This new-generation polyurethane system has a fine closed-cell structure that holds heat between charging cycles. Water heated by the collector stays usable for hours after sunset without the electric element switching on. The energy efficiency class is B.
Combined control knob, Twin LED indicator and 60 °C ECO mode
A single knob switches the unit on and sets the temperature, while the Twin LED indicator glows red during heating and white once the setpoint is reached. The 60 °C ECO position is the most economical setting for everyday use. The "Holiday" mode keeps the water above 5 °C when the property is left unoccupied in winter.
Six-level safety system and IP24 moisture protection
The patented flange design handles excess pressure, and the combined metal valve acts as both a check and a safety valve. A capillary thermal cut-out interrupts power on overtemperature independently of the external capillary thermostat. Setting the thermostat to maximum destroys bacteria inside the tank.
Specifications
General
Power and supply
Connections
Dimensions and weight
Materials
| Brand | ELDOM |
| MODEL | WVF08039FSL |
| CAPACITY | 80 L |
| TANK CAPACITY | 73.0 L |
| HEIGHT | 112.50 см |
| DIAMETER SM | 38.7 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | GLAZED |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 3 |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| HEAT EXCHANGER | Yes |
| WARRANTY | 60 MONTHS |
| EAN | 3800035778922 |
