БОЙЛЕР ELDOM WHF05039FL 50 L
- CAPACITY : 50 L
- TANK CAPACITY : 45.0 L
- HEIGHT : 76.00 см
- DIAMETER SM : 38.7 см
- TYPE : Horizontal
- TANK TYPE : GLAZED
- HEATER TYPE : COPPER
- WARRANTY : 60 MONTHS

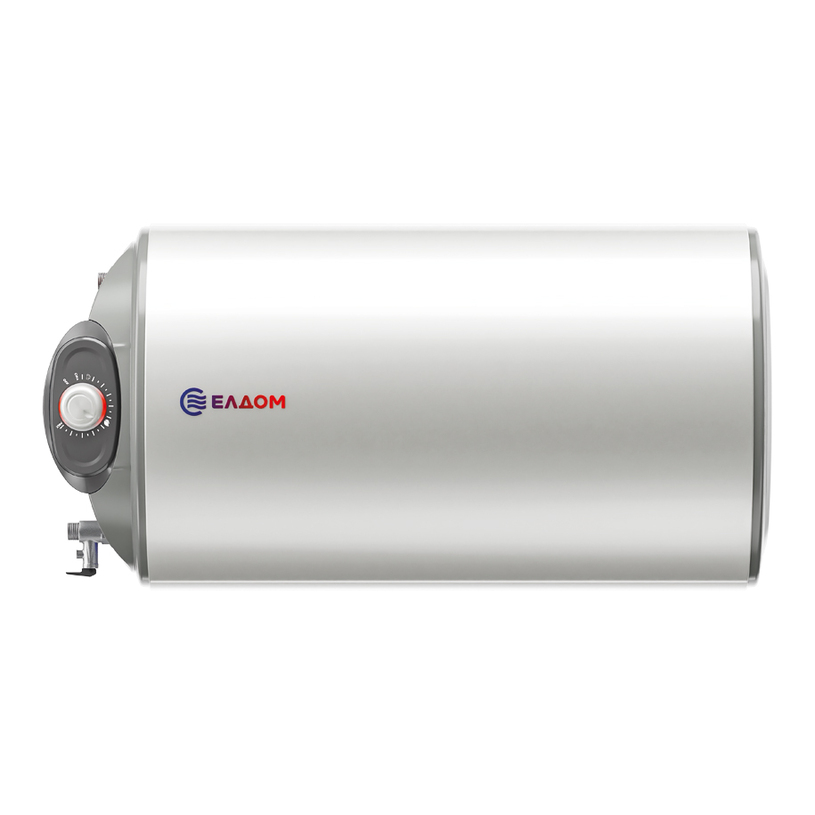

ELDOM WHF05039FL Water Heater 50 L, Horizontal, Left-Side Outlets
Horizontal wall mounting under the bathroom ceiling, with 33 mm+ insulation and IP24 protection.
The ELDOM WHF05039FL is a 50-litre horizontal storage water heater for wall mounting, with water and electrical connections on the left. Its enamelled tank holds 45.0 L of usable water, heated by a copper immersion element under mechanical thermostat control. At 38.7 cm in diameter and 76.00 cm long, it fits neatly above a door or inside a suspended ceiling.
Horizontal mounting that frees up bathroom space
All water and power connections sit on the left-hand side, which determines where the unit goes and how it ties into the plumbing. The body measures 38.7 cm across and 76.00 cm long and weighs 20.5 kg empty, so plan the wall fixings accordingly.
Enamelled tank with SHIELD technology
The tank interior is lined with zirconium enamel formulated for wear resistance. Two magnesium anodes take on corrosion across the full volume, and an anode tester can be fitted to check their condition.
HFO Closed-Cells insulation over 33 mm thick
The closed-cell polyurethane structure holds heat between heating cycles and cuts standby losses. Annual electricity consumption is 1426 kWh at load profile M.
Six-stage protection system and IP24 rating
A patented round flange handles excess pressure, while a capillary thermal cut-out interrupts heating on overheat. The combined metal valve acts as both check and safety valve, and the "Holiday" mode keeps the water above 5 °C while you are away.
ECO mode at 60 °C with twin LED indication
A single combined knob switches the heater on and sets the temperature, with the 60 °C position being the most economical for everyday use. Red light means heating, white light means the set temperature has been reached; at the maximum setting the water is thermally disinfected.
Specifications
Main
Power and supply
Dimensions and weight
Materials
| Brand | ELDOM |
| MODEL | WHF05039FL |
| CAPACITY | 50 L |
| TANK CAPACITY | 45.0 L |
| HEIGHT | 76.00 см |
| DIAMETER SM | 38.7 см |
| TYPE | Horizontal |
| TANK TYPE | GLAZED |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | MECHANICAL |
| NOMINAL POWER KW | 2 |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| ANNUAL ENERGY CONSUMPTION | 1426 |
| WARRANTY | 60 MONTHS |
| EAN | 3800035780390 |
