БОЙЛЕР ARISTON LYDOS R 80 V 3K EU 80 L
- CAPACITY : 80 L
- TANK CAPACITY : 80.0 L
- HEIGHT : 77.30 см
- DIAMETER SM : 45.0 см
- TYPE : ВЕРТИКАЛЕН
- TANK TYPE : TITANIUM
- HEATER TYPE : COPPER
- PROTECTION : IPX3
- WARRANTY : 60 MONTHS

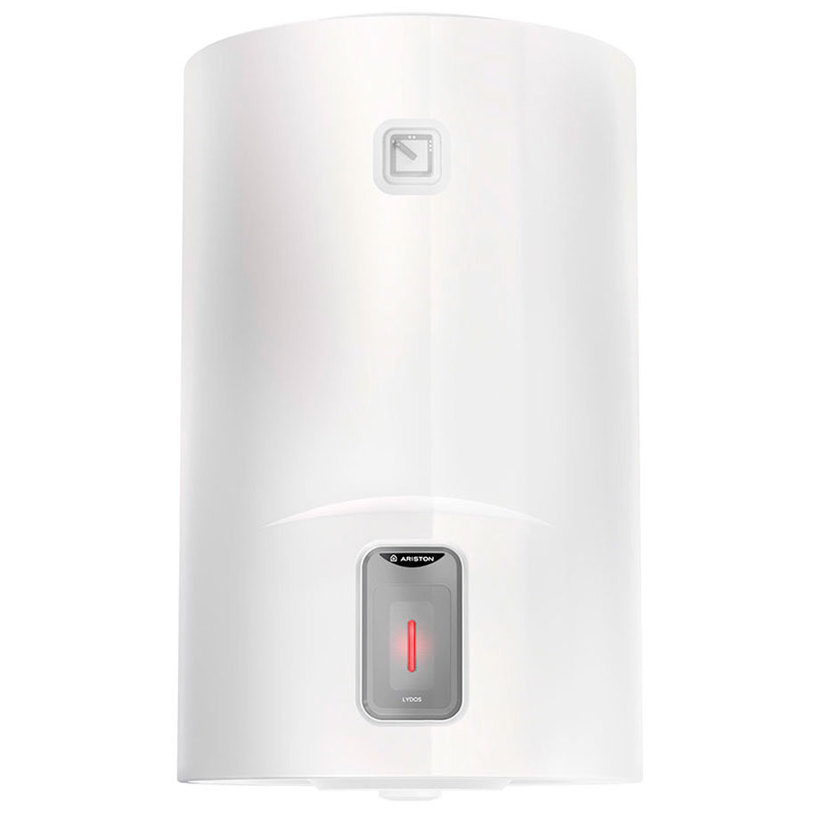

ARISTON LYDOS R 80 V 3K EU Water Heater, 80 L, 3 kW, Vertical
Titanium-enamelled tank with an external temperature dial, made for wall mounting.
The ARISTON LYDOS R 80 V 3K EU is a wall-mounted electric water heater with an 80 L usable capacity and vertical installation. It runs on a single-phase 230 V supply and handles pressurised mains systems up to 8 bar. Control is mechanical, with a thermostat and an externally accessible temperature dial.
3 kW heating for fast hot-water recovery
Bringing the full tank up by 45 °C takes 1 hour and 18 minutes. Three kilowatts is the top of the range normally offered on domestic electric water heaters, so a second shower is ready soon after the first.
Titanium-enamelled tank with magnesium anode
The interior is finished in high-grade titanium enamel, while a large magnesium anode takes on the corrosive load of the water. The immersed heating element is copper.
WaterPlus technology: up to 16% more usable hot water
The patented design keeps incoming cold water at the bottom of the tank and limits mixing with the heated volume. The same 80 L therefore deliver more water at a usable temperature during peak draw-off.
Dual safety thermostat and IPX3 protection
Maximum working temperature is 75 °C, and the dual safety thermostat cuts power in case of overheating. The IPX3 rating suits the damp conditions of a bathroom.
Compact 45 cm diameter body for wall mounting
The unit stands 77.30 cm tall and weighs 20.5 kg empty, keeping wall installation manageable. Cold inlet and hot outlet connections are G 1/2”.
Specifications
General
Power and supply
Performance
Dimensions and weight
Materials
| Brand | ARISTON |
| MODEL | LYDOS R 80 V 3K EU |
| CAPACITY | 80 L |
| TANK CAPACITY | 80.0 L |
| HEIGHT | 77.30 см |
| DIAMETER SM | 45.0 см |
| TYPE | ВЕРТИКАЛЕН |
| TANK TYPE | TITANIUM |
| HEATER TYPE | COPPER |
| THERMOREGULATOR | МЕХАНИЧЕН |
| NOMINAL POWER KW | 3 |
| ELECTRICAL POWER TYPE | MONOPHASIC |
| ANODE TESTER | No |
| HEAT EXCHANGER | No |
| PROTECTION | IPX3 |
| WARRANTY | 60 MONTHS |
| EAN | 5414849770980 |
