COMBINATION SAW BOSCH PROFESSIONAL GTM 12 JL
- POWER CONSUMPTION : 1800 W
- OUTER DIAMETER OF DISC : 305 мм
- CUTTING DEPTH AT 90 DEGREES : 150 мм
- SUITABLE FOR : PROFFESIONAL USE

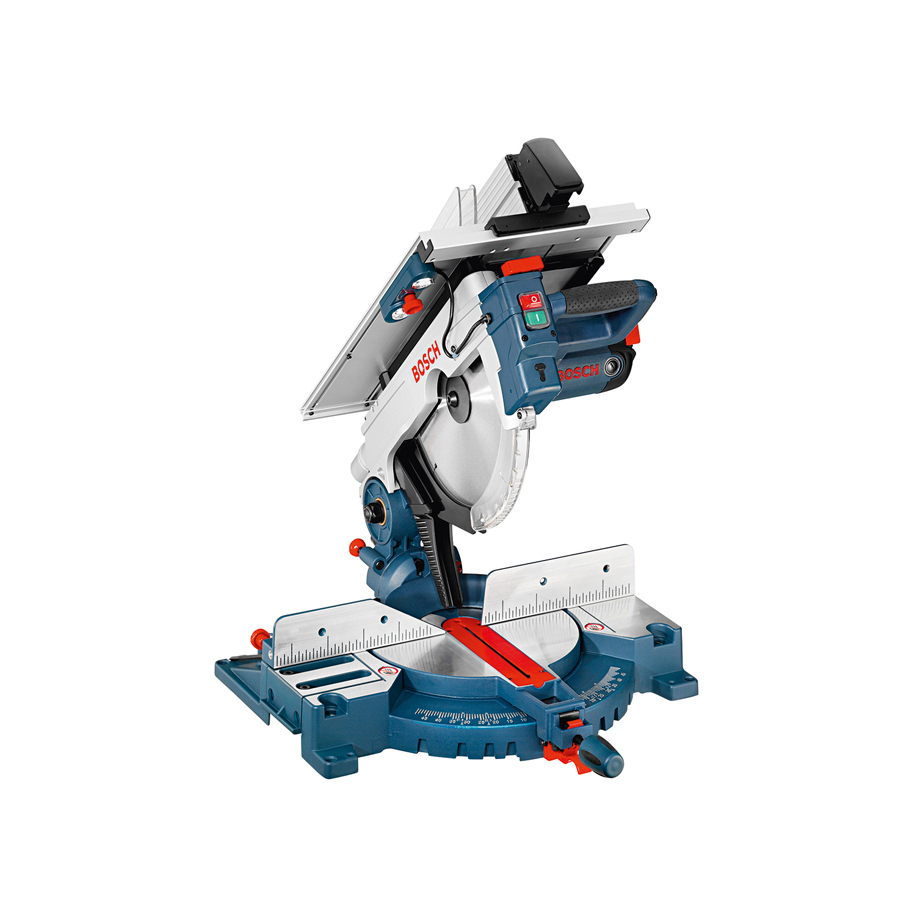

BOSCH Professional GTM 12 JL Combination Saw, 1800 W, Ø 305 mm
Mitre saw and table saw in one machine, with a built-in laser for precise cuts.
The BOSCH Professional GTM 12 JL combination saw brings a mitre saw and a table saw together in a single body for carpentry and site work. A powerful 1800 W motor drives the Ø 305 mm blade, while the built-in laser marks the cutting line for precise results. It is designed for professional wood-cutting applications.

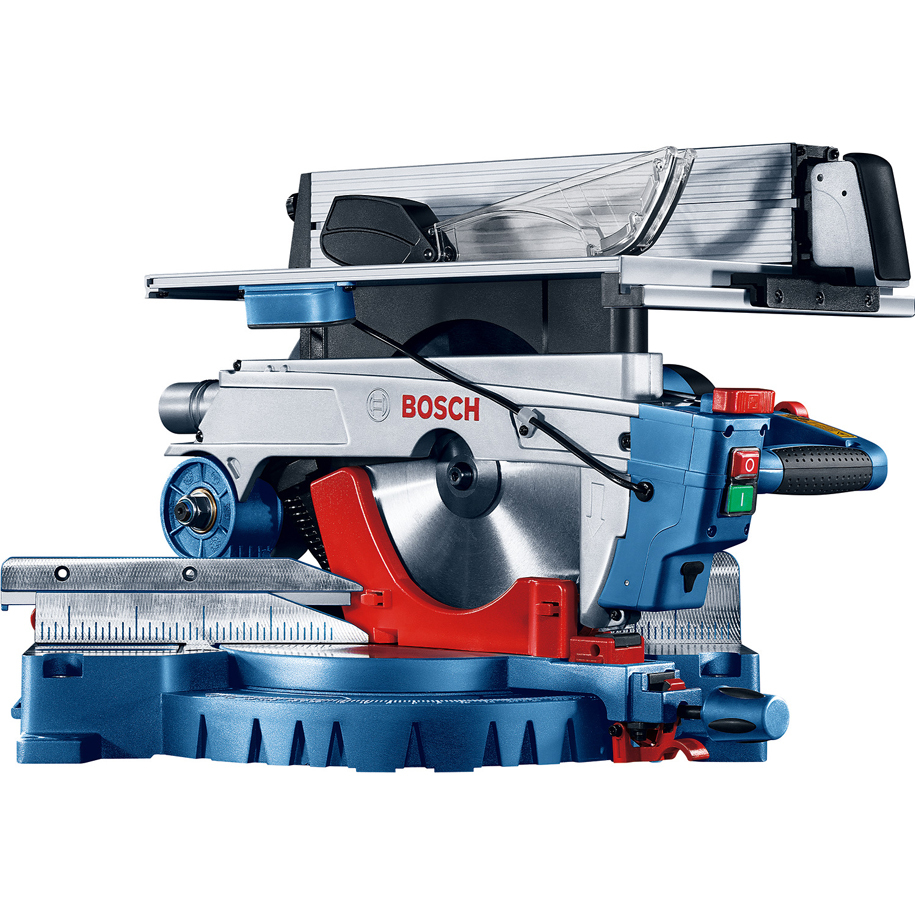

Two saws in one body for more applications
The combination design of the BOSCH GTM 12 JL pairs a mitre saw below with a table saw on top. One machine covers cross, angle and rip cuts without switching tools. A handy solution for fitting trim, laminate and timber structures.
1800 W motor for fast work progress
The GTM 12 JL motor delivers 1800 W and spins the blade at 3800 rpm at no load. This power keeps cuts fast and even in both mitre and table saw modes. A soft start function eases the tool smoothly up to speed on switch-on.
Built-in laser for an accurate cutting line
The built-in laser of the BOSCH GTM 12 JL projects the cutting line straight onto the workpiece. You see exactly where the blade will travel, which helps with precise cuts even in poor light. Useful for repeated cuts to the same length.
Ø 305 mm blade with large cutting capacity
The Ø 305 mm blade of the GTM 12 JL cuts wide workpieces — up to 150 mm on a straight 90° cut. At a 45° bevel the capacity stays at 90 mm, covering beams, battens and profiles. The blade bore is a standard 30 mm.
Compatible with Click & Clean dust extraction
The BOSCH GTM 12 JL connects to the Click & Clean dust extraction system and to various Bosch stands. A cleaner workspace improves visibility of the cut line and helps the machine last longer. The saw is intended for cutting wood.
Specifications
General
Power & supply
Cutting
Dimensions & weight
General
| Brand | BOSCH PROFESSIONAL |
| MODEL | GTM 12 JL |
| POWER SUPPLY TYPE | ELECTRICAL |
| POWER CONSUMPTION | 1800 W |
| OUTER DIAMETER OF DISC | 305 мм |
| IDLE SPEED 1/min | 3800 |
| DIAMETER OF DISC INNER HOLE | 30.0 мм |
| CUTTING DEPTH AT 90 DEGREES | 150 мм |
| CUTTING DEPTH AT 45 DEGREES | 90 мм |
| LASER | Yes |
| PRODUCT WEIGHT | 21.000 kg |
| WARRANTY | 36 MONTHS, *AFTER REGISTRATION |
| EAN | 3165140695268 |
