Electric underfloor heating

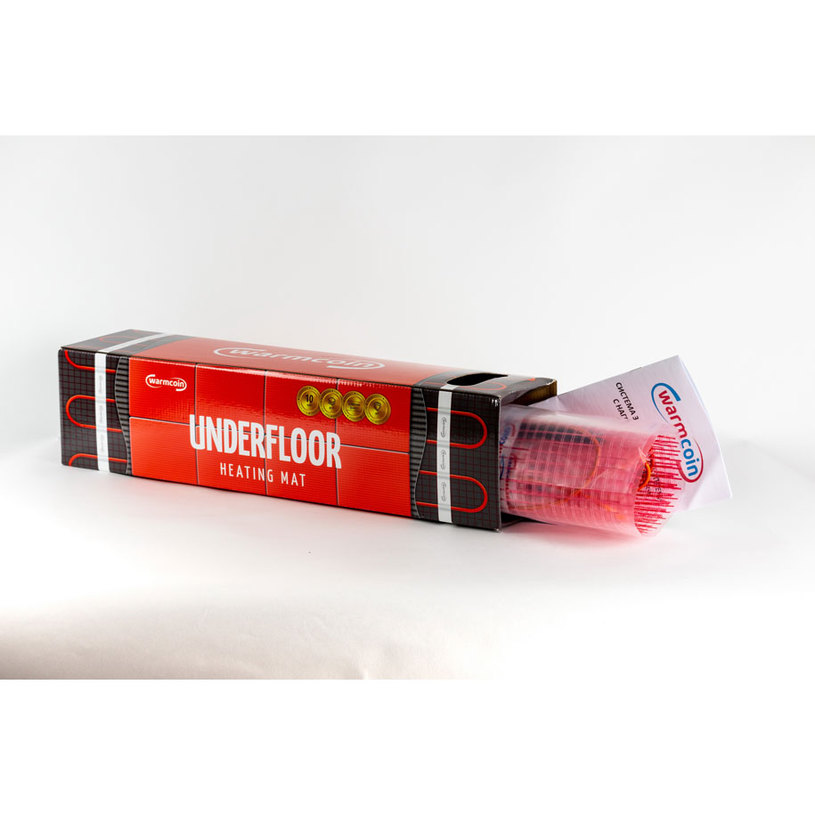

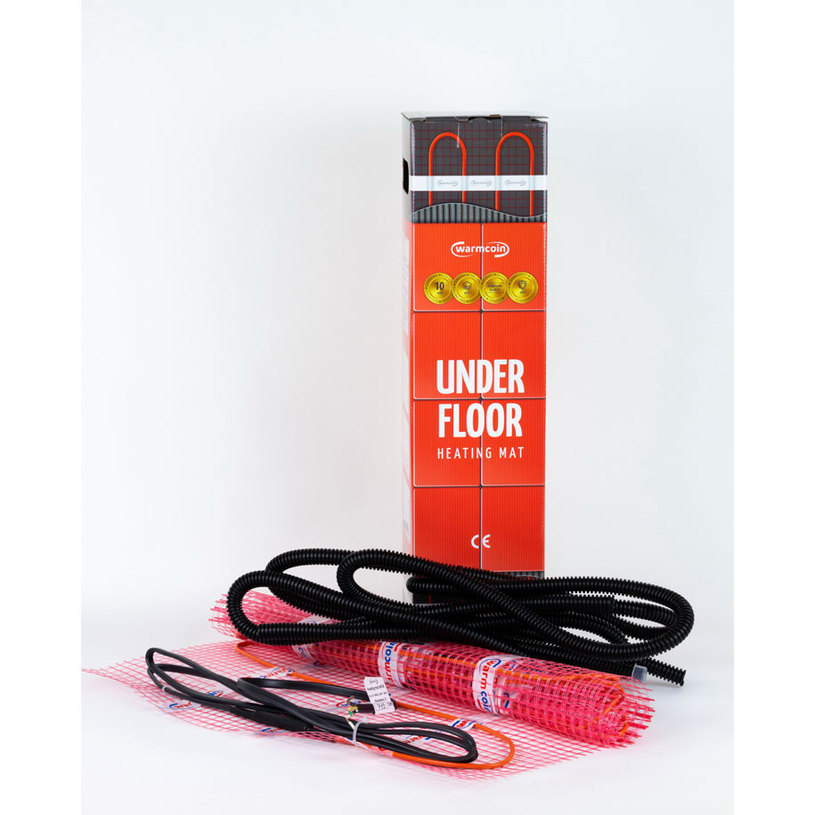

WARMCOIN WCM Underfloor Heating Mat 8.0 m², 1280 W, 230 V

Set into the tile adhesive layer, with no change to floor height.

The WARMCOIN WCM 8.0 m² electric underfloor heating mat is a ready-to-lay heating section for bathrooms, hallways, kitchens and any room finished with tiles or porcelain stoneware. It works as primary or supplementary heating and is controlled by a thermostat with a floor sensor, purchased separately.

Installs in the tile adhesive, no screed needed

The heating cable measures 2.5–4 mm in diameter and stays inside the tile adhesive layer. Floor level and door heights remain untouched, which matters most when renovating an existing bathroom.

160 W/m² output for full bathroom heating

The mat covers 8.0 m² of heated area with a total output of 1280 W at 230 V. This output density suits both floor warming and full room heating once the room has been properly sized.

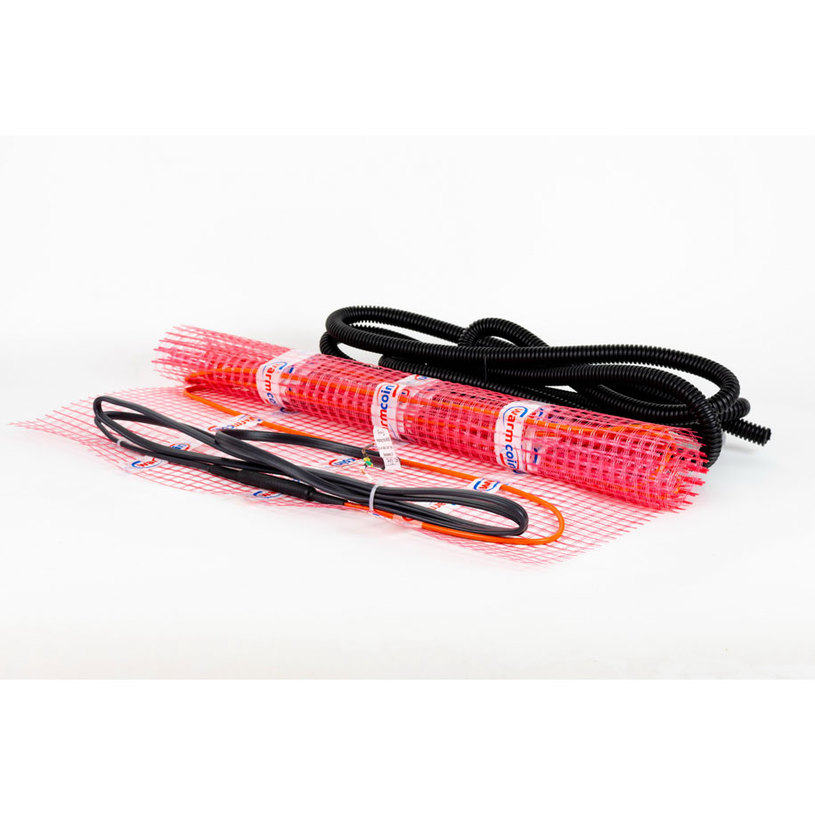

Twin-conductor cable on a self-adhesive mesh

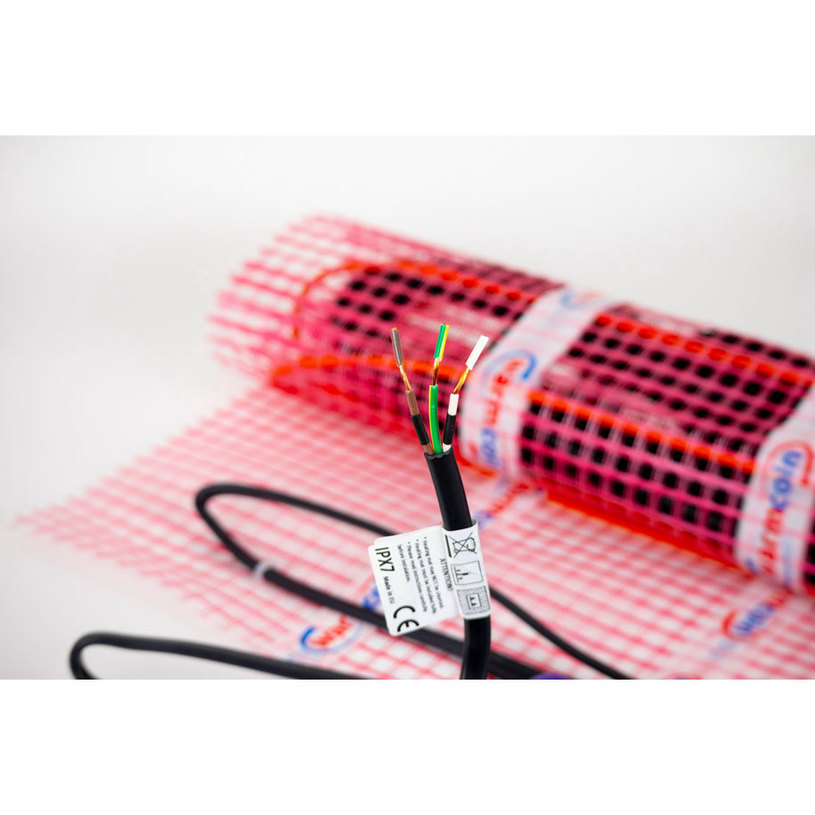

The cable is fixed to a 50 cm wide mesh that rolls out to a total run of 16 m, and a single cold tail keeps the wiring simple. The mesh can be cut when turning the strip; the heating cable itself must never be shortened.
