Electric underfloor heating

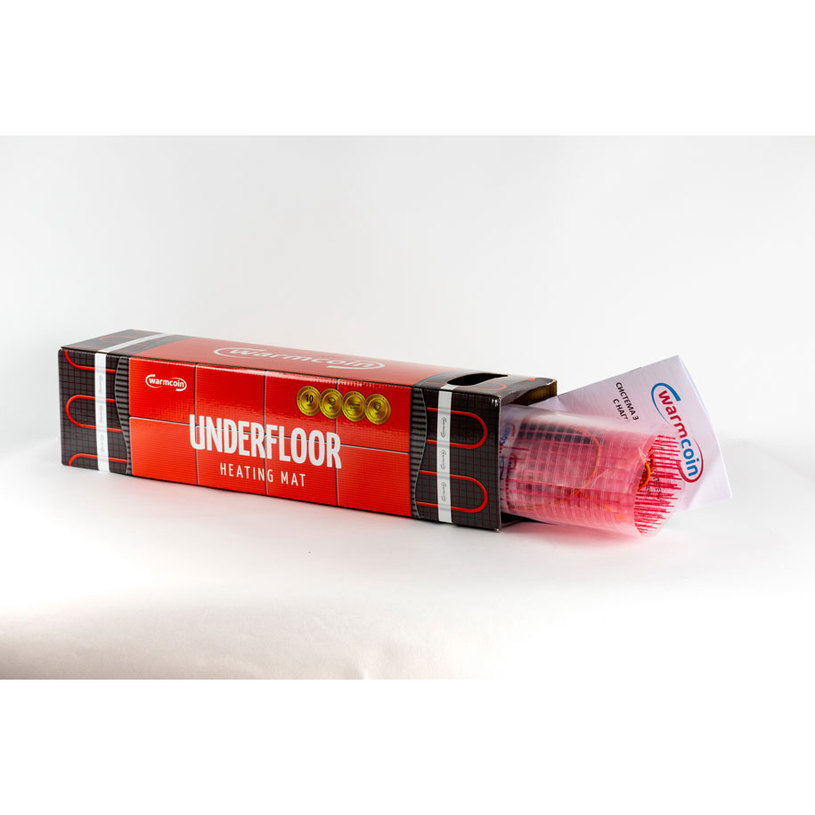

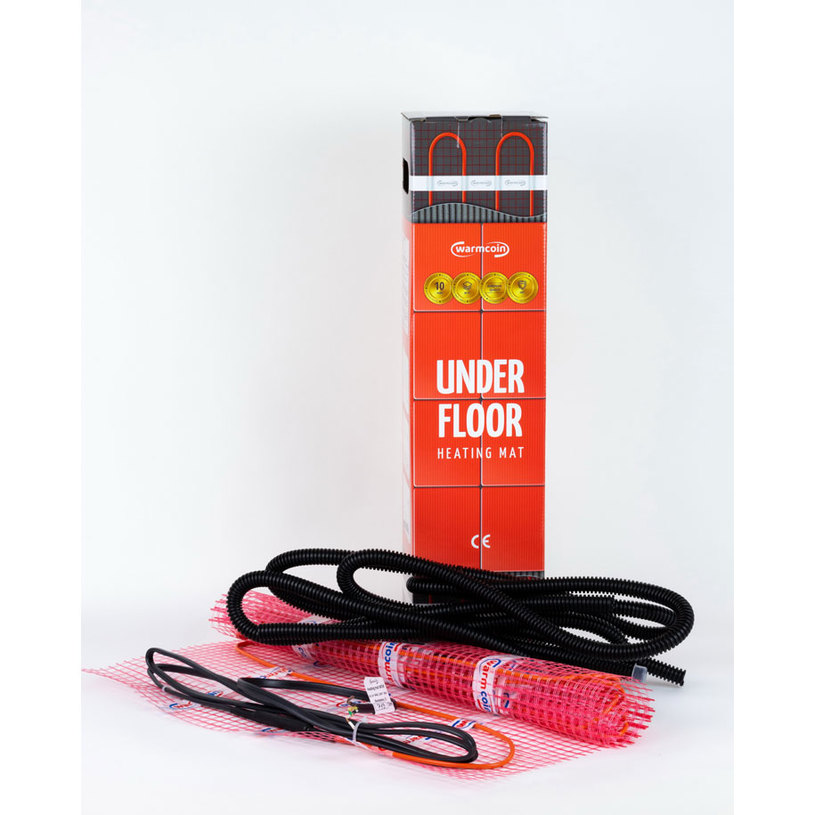

WARMCOIN Underfloor Heating Cable Mat 7.0 m², 1120 W, 230 V

Fits straight into the tile adhesive layer without raising the floor level.

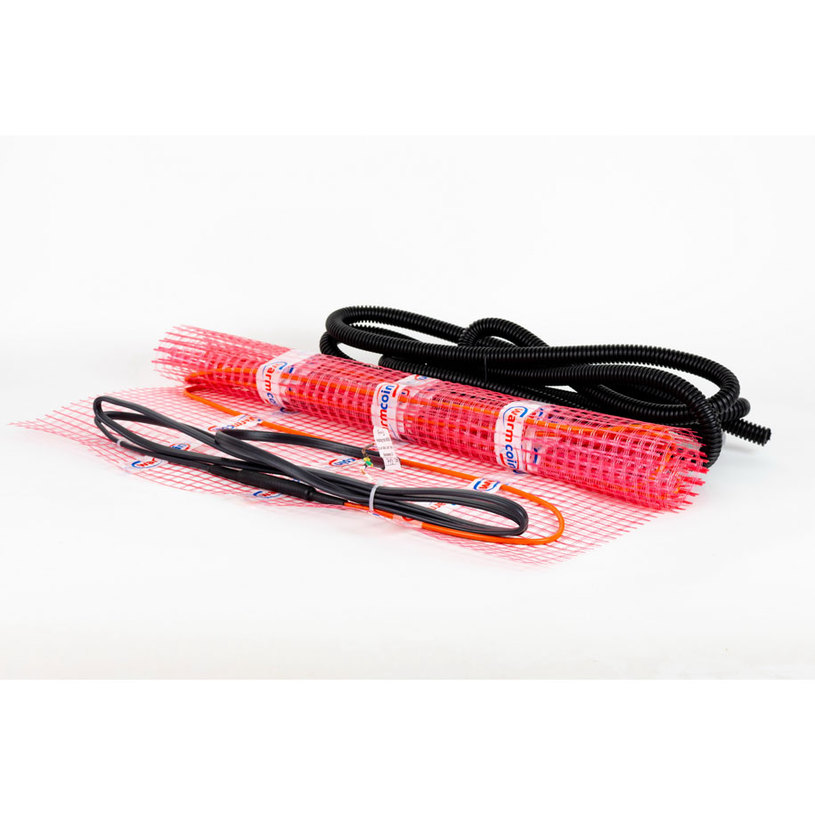

The WARMCOIN WCM underfloor heating cable mat covers 7.0 m² of heated area and works as primary or supplementary heating in bathrooms, hallways, kitchens and entrances. The heating cable comes factory-fixed to a 50 cm wide mesh, so you simply roll it out without calculating cable spacing. It runs through a thermostat with a floor sensor, sold separately.

Installed in tile adhesive, no screed needed

The slim 2.5 to 4 mm cable sits directly in the adhesive bed under ceramic, terracotta or porcelain tiles. Room height stays practically unchanged, which matters when you are renovating an existing bathroom with doors and thresholds already in place.

160 W/m² for primary or supplementary heating

That output density covers both warm-floor comfort and full room heating once the area is correctly sized. In typical winter operation the actual draw is around 80 to 100 W per square metre per hour.

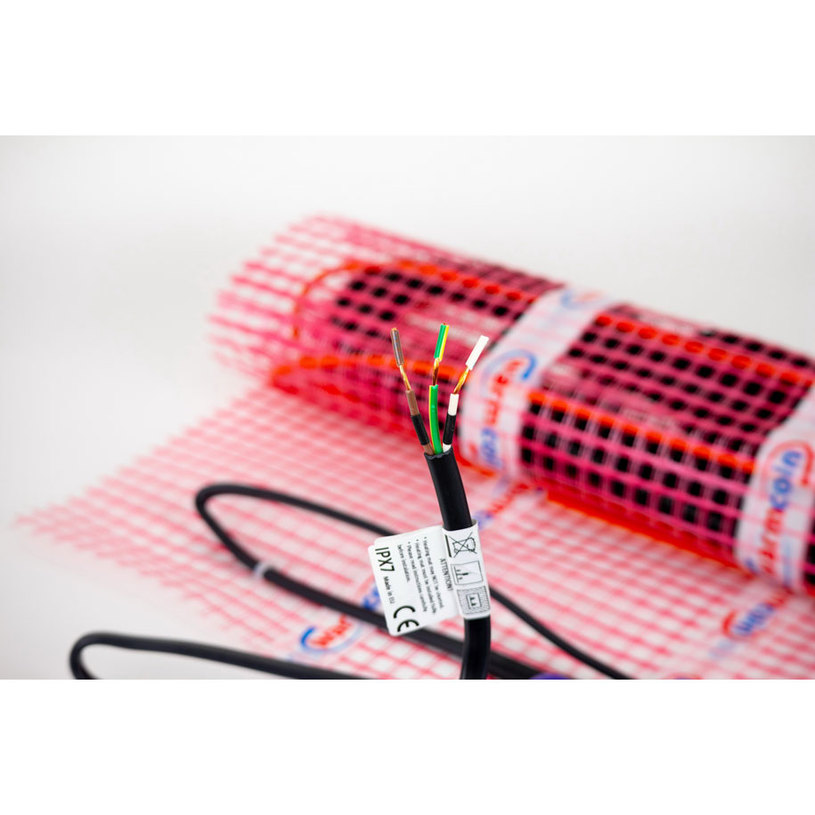

Twin-conductor screened cable with a single cold tail

The screen and earth make the mat suitable for wet rooms when installed under tiles over proper waterproofing. Only one end is the cold tail, so a single connection runs back to the thermostat instead of two.
