ПОДОВО ОТОПЛЕНИЕ КАБЕЛНА РОГОЗКА WARMCOIN 3.5m2

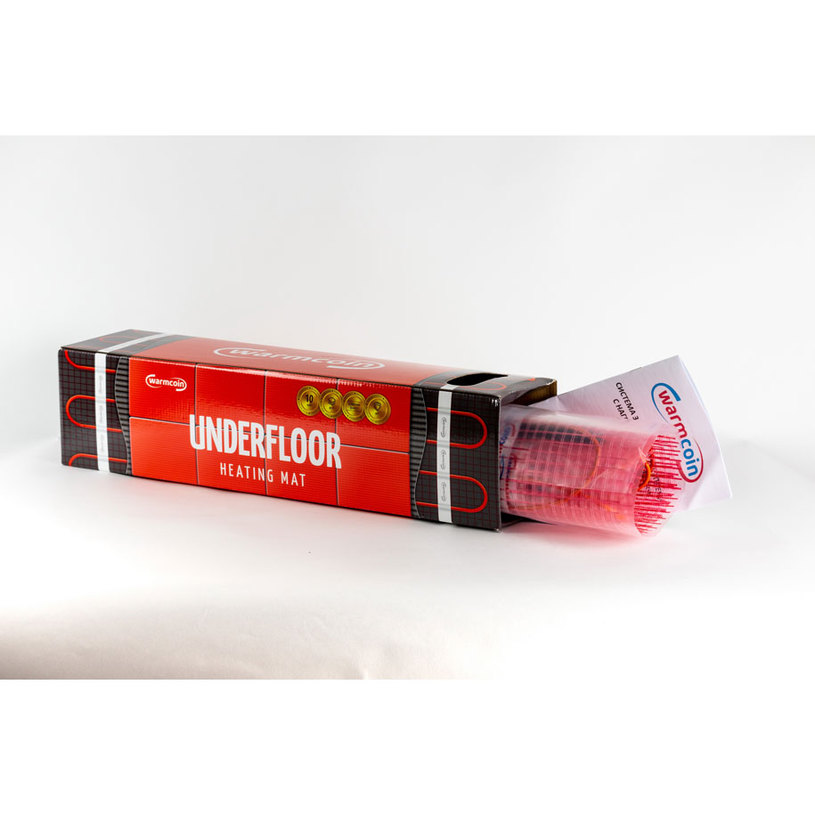

WARMCOIN WCM Underfloor Heating Mat, 3.5 m², 560 W
Warm tiles without raising the floor level or pouring a screed.
The WARMCOIN WCM 3.5 m² underfloor heating mat is a twin-conductor heating cable pre-fixed to a mesh, rolled out over the prepared subfloor and embedded straight into the tile adhesive. It heats 3.5 m² of net floor area and works as primary or supplementary heating in bathrooms, hallways and kitchens. It must be run through a thermostat with a floor sensor, sold separately.
Installs in the tile adhesive, no new screed
The cable measures 2.5 to 4 mm across and beds into an adhesive layer from 8 mm up. Floor height stays practically unchanged, which matters in a bathroom refit with doors and thresholds already in place.
160 W/m² for comfortable tile temperature
Total output is 560 W at 230 V. This power density is the standard choice for tiled rooms and allows the floor to carry the entire bathroom heat load when correctly sized.
7 x 0.5 m size lays out around sanitary ware
The strip is 50 cm wide and the mesh can be cut between runs so you can turn the mat around a toilet, vanity or shower area. The heating cable itself is never shortened: cutting it changes the resistance and causes overheating.

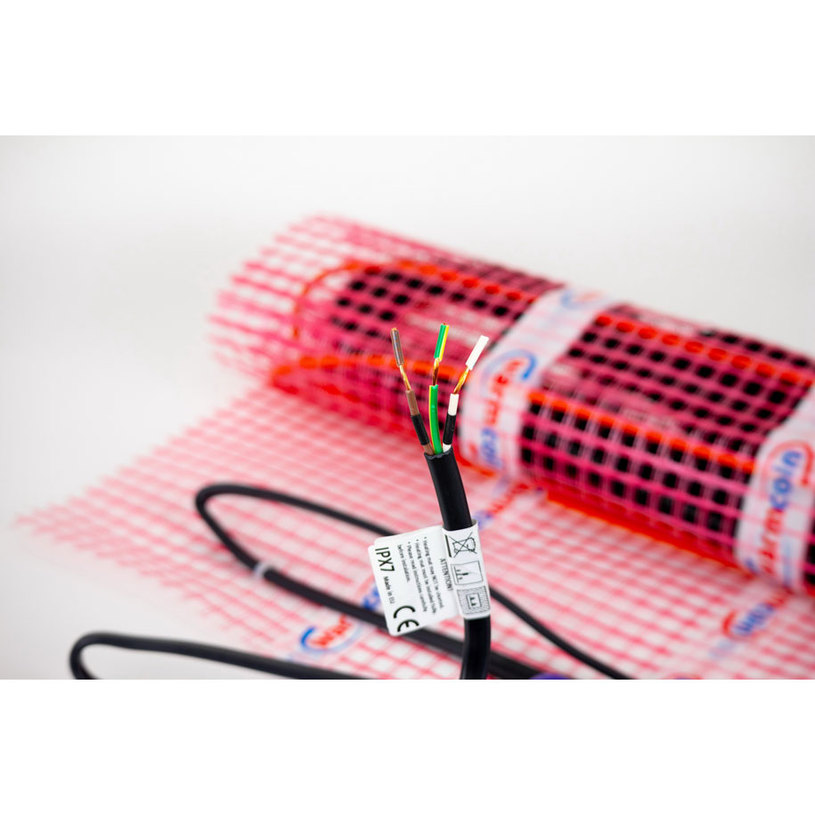

Twin-conductor cable with a single cold tail
Only one cold tail runs back to the thermostat, keeping wall connections to a minimum. The cable is screened and earthed, so it is approved for wet rooms provided the waterproofing and an RCD are in place.
In the box: conduit for the floor sensor

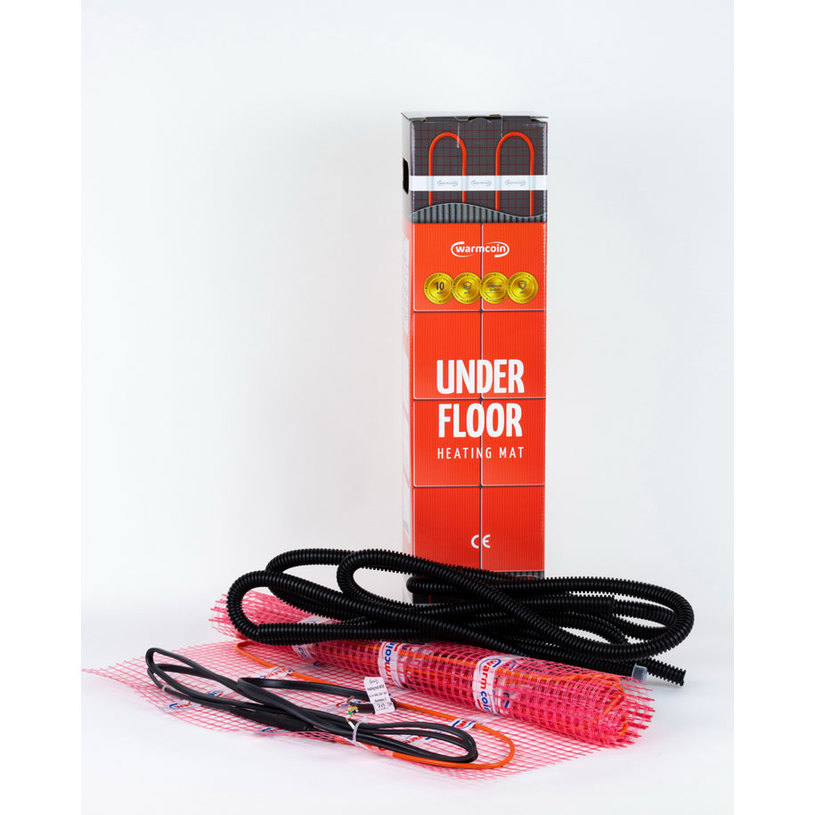

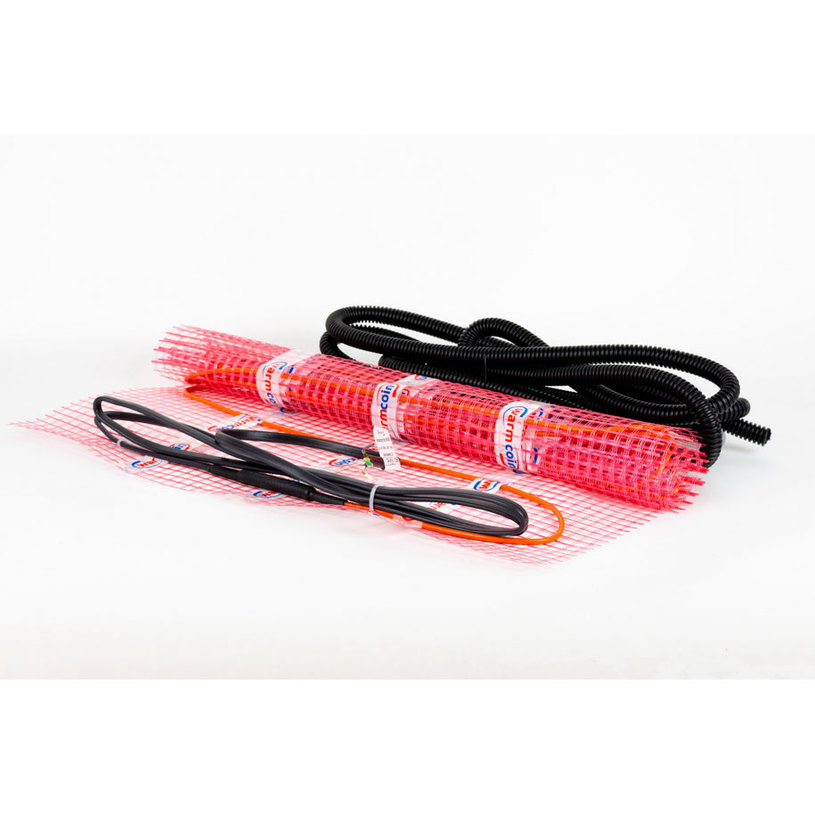

Alongside the mat you get a capped conduit that houses the floor temperature sensor, plus installation and operating instructions. The thermostat and floor sensor are chosen separately from the compatible WARMCOIN or BEOK range.
Specifications
General
Power and supply
Dimensions
In the box
| Brand | WARMCOIN |
| MODEL | 3.5m2 |
| TYPE | НАГРЕВАТЕЛНА |
| APPLICATION | ОСН.И ДОПЪЛ.ОТОПЛЕНИЕ |
| WARRANTY SANITARY | 120 МЕСЕЦА |
| EAN | 3800235090565 |
